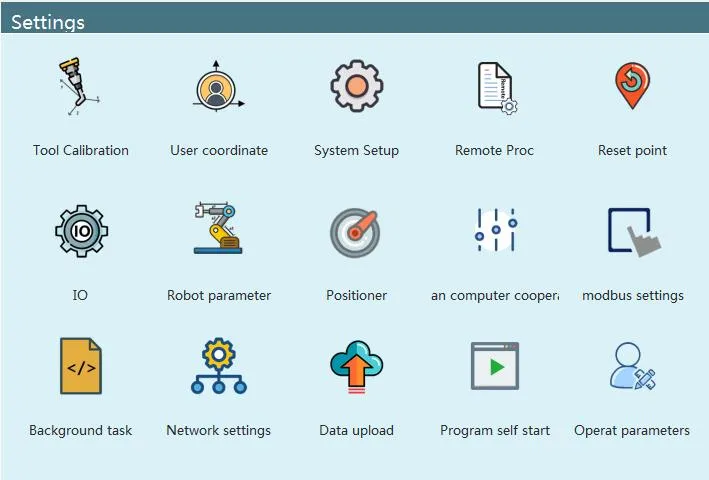

Main Interface
The setting interface includes Tool Calibration, User coordinate, System Setup, Remote Proc, Reset point, IO, Robot parameter, Positioner, and Modbus settings.

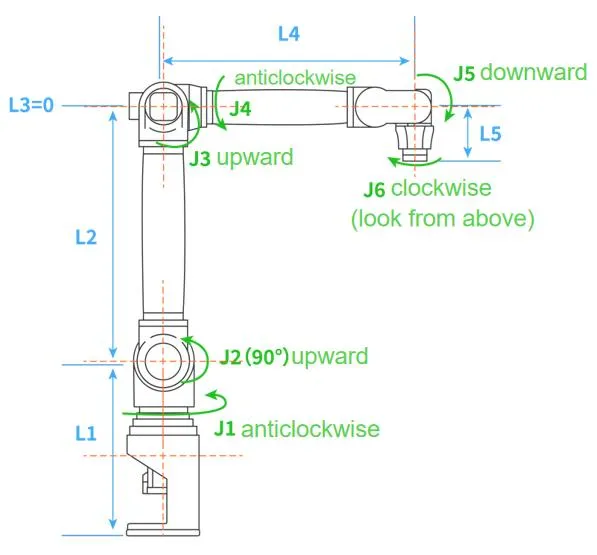

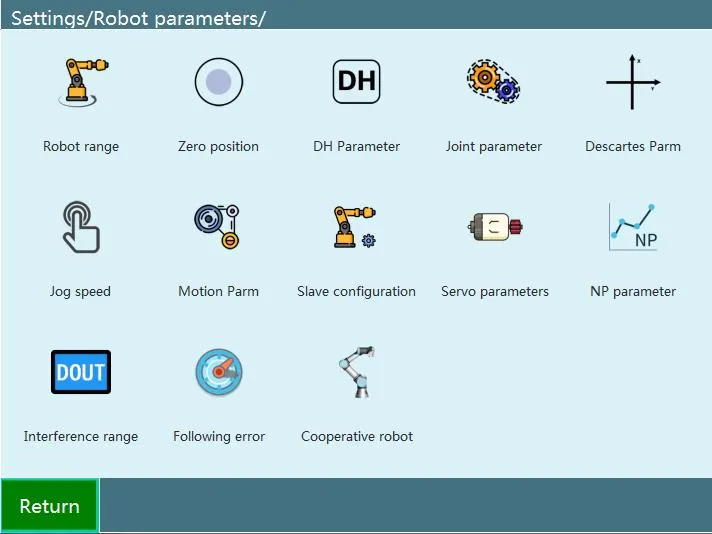

Robot Parameters
Includes Robot range, Zero position, DH Parameter, Joint parameter, Jog speed, and Motion Parameter configuration for high-precision control.

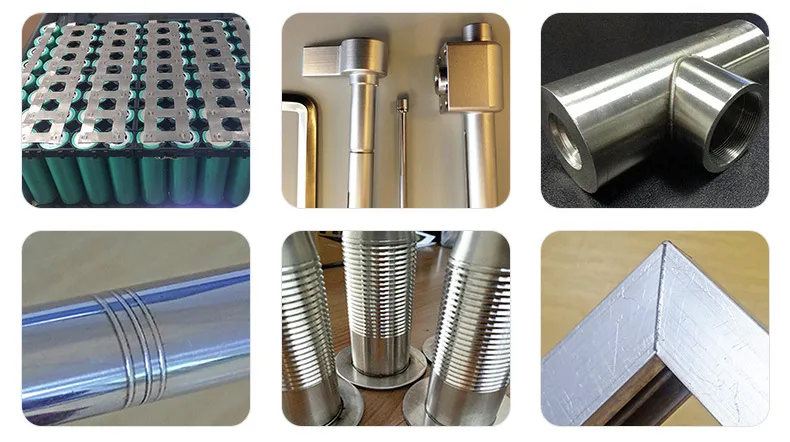

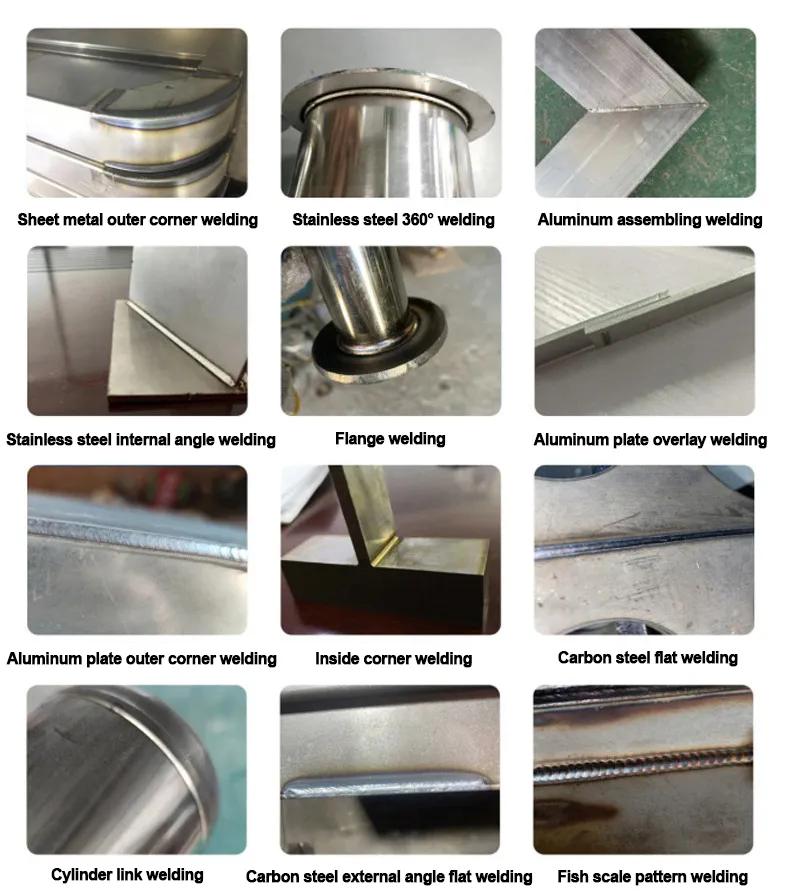

🛠 Applications & Samples

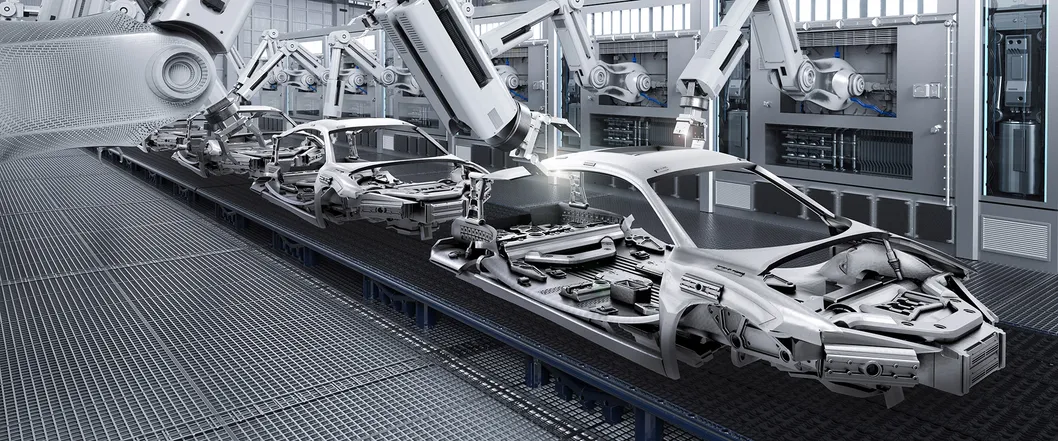

Automotive Industry
Automotive body welding and high-precision precision parts welding.
Medical Instruments
High-precision welding of medical instruments and equipment components.
Sheet Metal Fabrication
Welding of steel plates, tubes, and different metal materials.
❓ Frequently Asked Questions

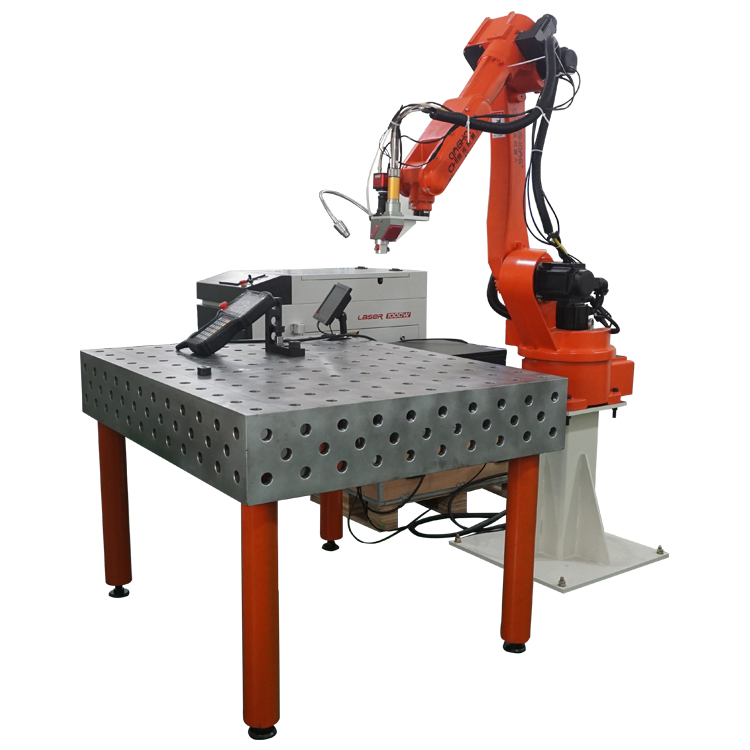

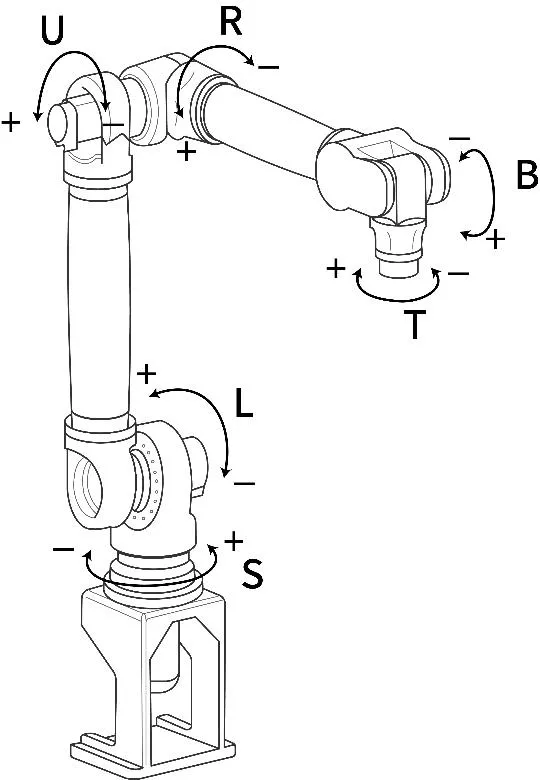

What is the payload and radius of the robotic arm?
The system features a 6-axis robotic arm with an effective payload of 20 KG and a movement radius of 1840 mm, providing excellent reach for large workpieces.
What is the precision level of this laser welding system?
The robot achieves a repeat positioning accuracy of ± 0.08 mm, ensuring consistent and high-quality welds for precision components.
Which industries can benefit from this technology?
It is ideal for aerospace equipment, shipbuilding, medical instruments, automotive manufacturing, hardware, and digital accessories.
What kind of laser power does it support?
The system is equipped with a high-performance laser with an output power of up to 2000W and a 1064nm wavelength, suitable for welding depths between 0.1-6mm.
What are the environmental requirements for installation?
It requires a temperature between 0-45°C, humidity of 20-80%RH (no condensation), and vibration acceleration below 4.9m/s² (0.5G).
Can external axes be added to the control system?
Yes, the control cabinet supports external axes addition and uses a serial communication method (EtherCAT, TCP/IP) for advanced integration.
