Medical Equipment Endoscope 4K Fluorescence Endoscope Camera System

Customization: Available
Applicable Departments: Orthopedic
Certification: RoHS, ISO, CE

Product Description

📋

Basic Information

Model NO.
ZJBSH-L-130A
Type
Endoscope
Material
Metal
Product Name
4K Endoscope
Power Source
Electric
Application
Laparoscopy/Hysteroscopy/Arthroscopy
Quality Certification
CE FDA
Instrument Classification
Class II
Shelf Life
3 Years
Warranty
1 Year
Camera
9,000,000 Pixels 4*1/2.8" CMOS
Resolution
3840(H)*2160(V)
Definition
2100 Lines
Origin
China
Production Capacity
500 Sets Per Month
🔬

Product Description

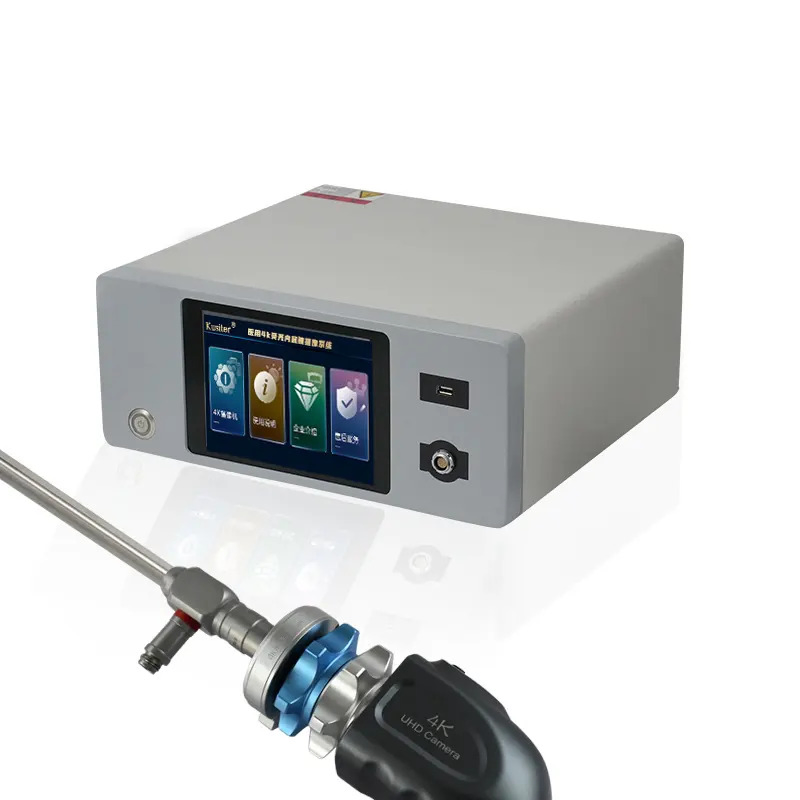

Medical Equipment 4K Fluorescence Endoscope Camera System

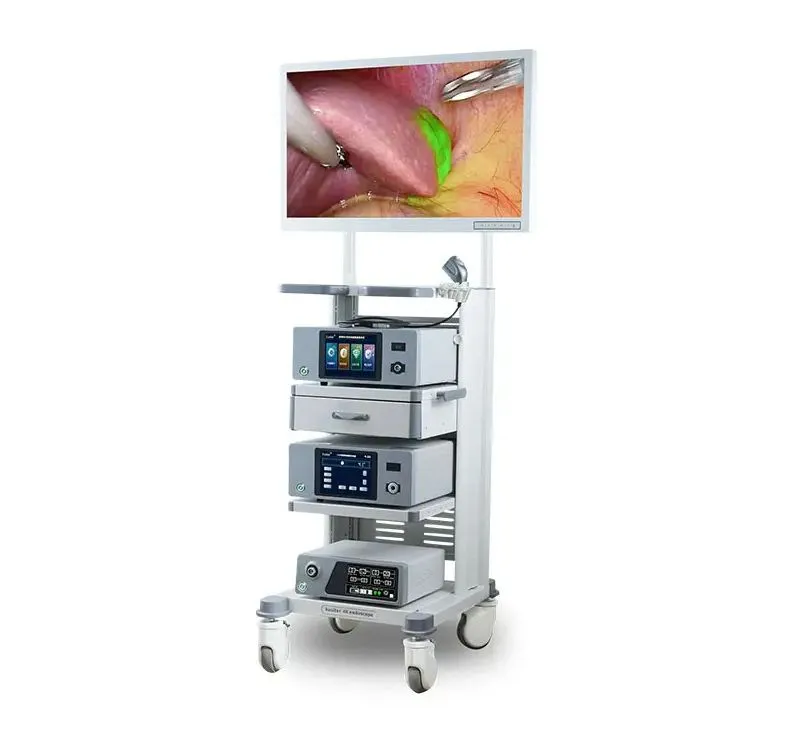

4K Fluorescence Endoscope

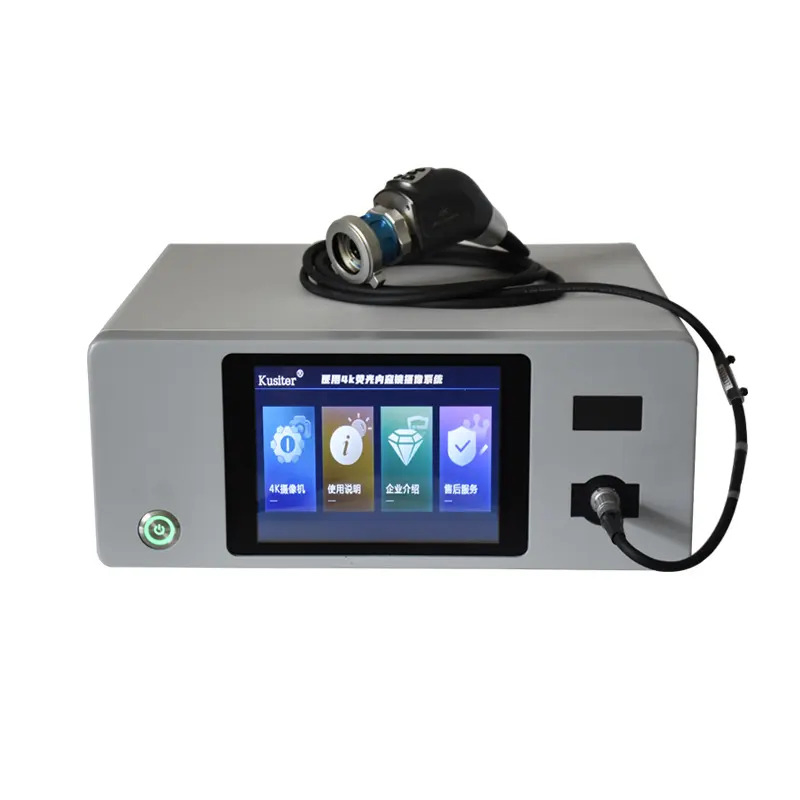

4K Camera Handle

4K Fluorescent Camera

1. Connect to the 4K camera system host to achieve resolution ≥3840×2160 pixels (aspect ratio 16:9);

2. Achieve excellent photosensitive performance and signal-to-noise ratio through 4K ultra-high-definition 4CMOS image sensor;

3. 4K dedicated optical lens connection to meet the needs of different surgeries;

4. Features electronic magnification function, adjusting image size in real time via camera buttons;

5. Customizable camera button functions to suit surgeon requirements across various procedures.

Imaging Modes

Multiple Imaging Modes

Systems offer high-definition white light imaging, black and white fluorescence imaging, and green fluorescence imaging. These modes provide critical data on tissue perfusion, lymphatic drainage, and abnormal structures for safer, more precise surgery.

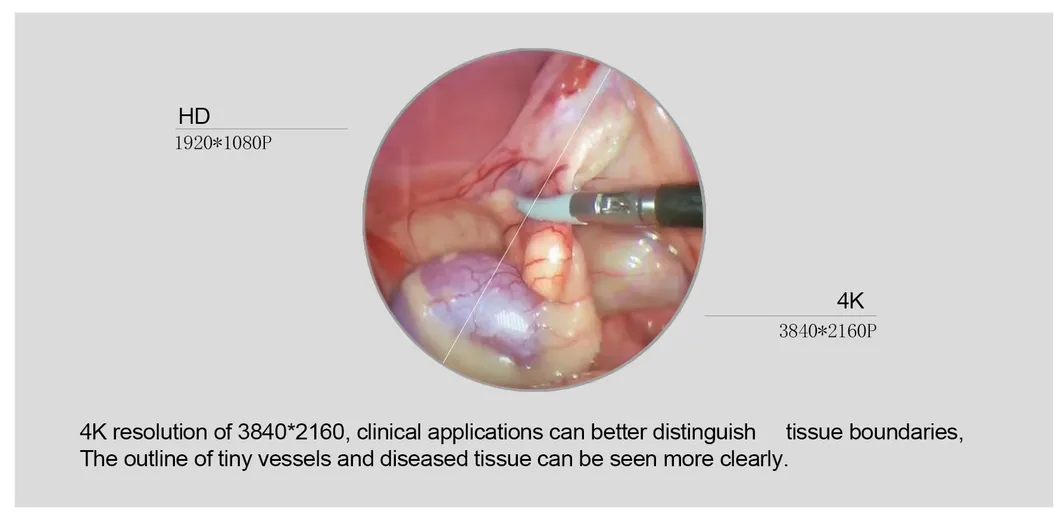

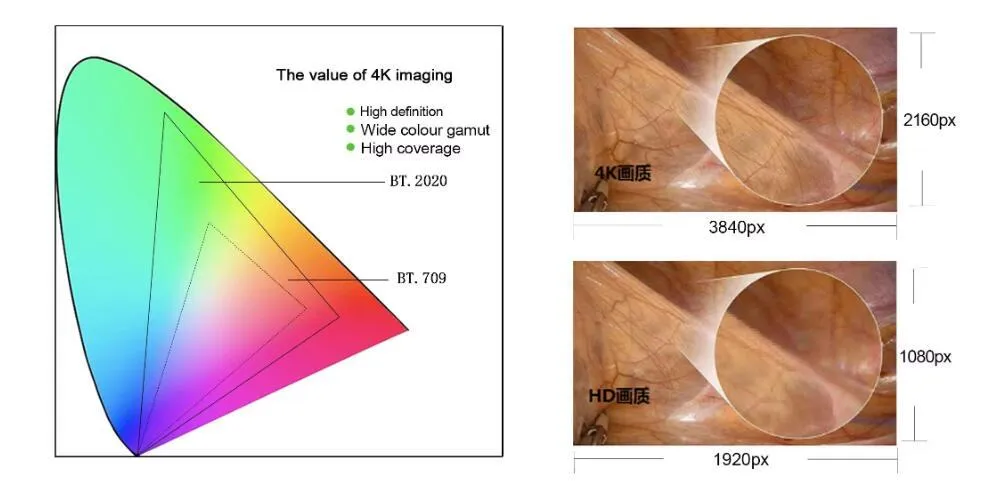

The Ultra High Definition (UHD) standard features a physical resolution of 3840x2160 (4K), which provides four times the detail of ordinary Full HD (1920x1080).
4K Resolution Comparison
BT.2020 color standard provides a massive color space for better discrimination of fat, nerve, and vascular junctions, clarifying small blood vessels and pathological contours.
Color Standard
📊

Product Parameters

Camera9,000,000 pixels 4*1/2.8" CMOS
Resolution3840(H)*2160(V)
Definition2100 Lines
Minimal illumination0.5Lux

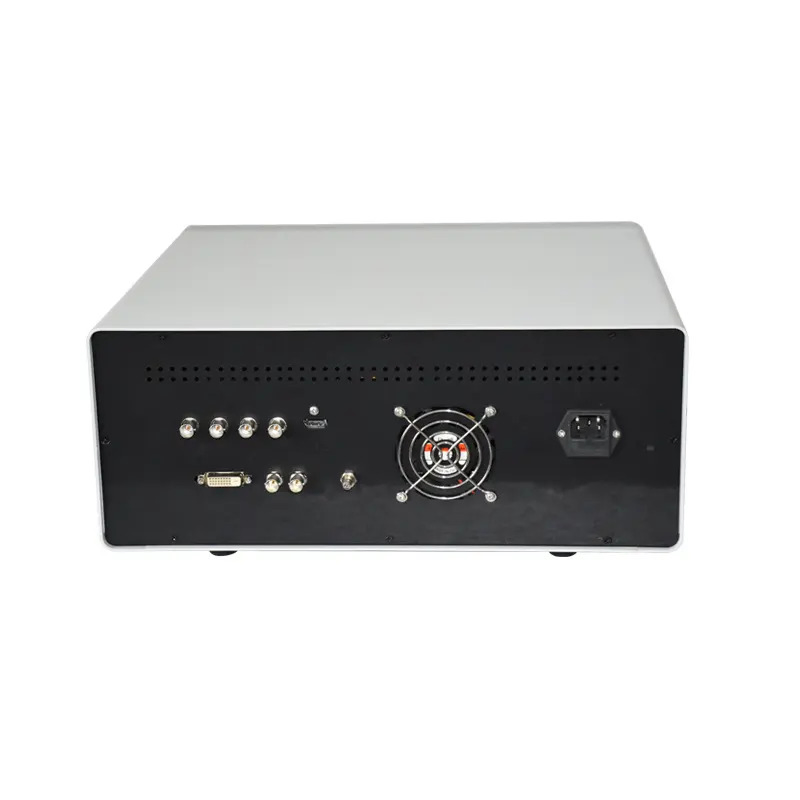

Video outputHDMI2.0 / 3G-SDI (4K UHD output) DVI, USB3.0
Shutter speed1/60~1/60000(NTSC), 1/50~50000(PAL)
Handle cable2.8m (Custom lengths available)
Power supplyAC220/110V +-10%
SNRMore than 50db
Scanning systemLine by line scanning
ApplicationThoracic, Urology, Hepatobiliary, Gastrointestinal, Gynecology
🌟

Recommended Products

X-ray Machine

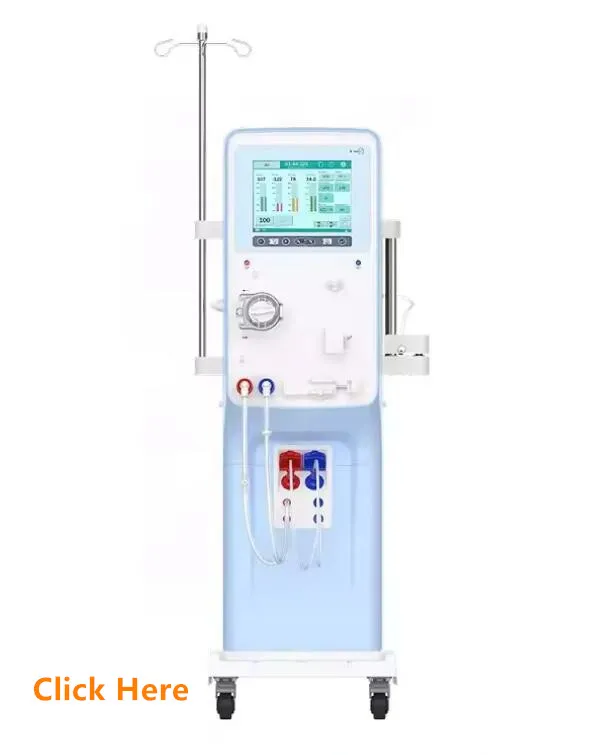

Hemodialysis Equipment
Dental CBCT

Frequently Asked Questions

What is 4K Fluorescence Endoscopy?
It is an advanced surgical imaging system that provides 3840x2160 resolution combined with fluorescent imaging modes (such as ICG) to help surgeons visualize blood flow, lymph nodes, and tissue perfusion in real-time.
What are the advantages of the 4CMOS sensor?
The 4CMOS ultra-high-definition sensor provides superior photosensitive performance, high signal-to-noise ratio (over 50db), and exceptional color reproduction, allowing for clearer observation of small blood vessels.
Which surgical departments can use this system?
The system is highly versatile and suitable for thoracic surgery, urology, hepatobiliary surgery, gastrointestinal surgery, and gynecology (Laparoscopy/Hysteroscopy).
Does the system support multiple languages?
Yes, the system interface can be switched between Chinese, English, Russian, Japanese, and Spanish to accommodate international medical teams.
What video outputs are available for recording?
The system supports multiple 4K UHD outputs including HDMI 2.0, 3G-SDI, DVI, and USB 3.0 for high-quality video transmission and recording.
How is the quality of these medical devices guaranteed?
All products undergo a strict quality control process, including pre-production sample evaluation and a final comprehensive inspection before shipment, ensuring compliance with CE and FDA standards.
