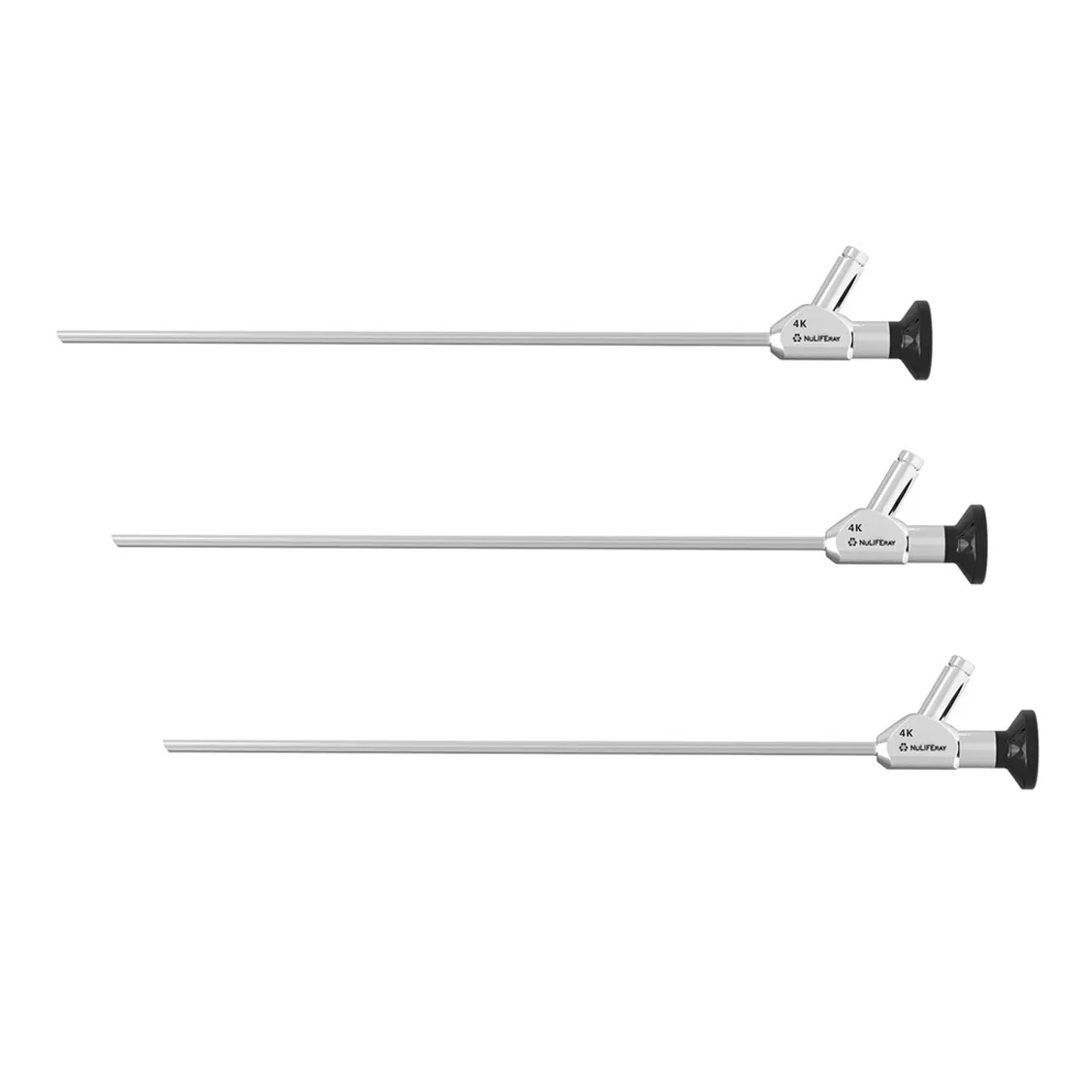

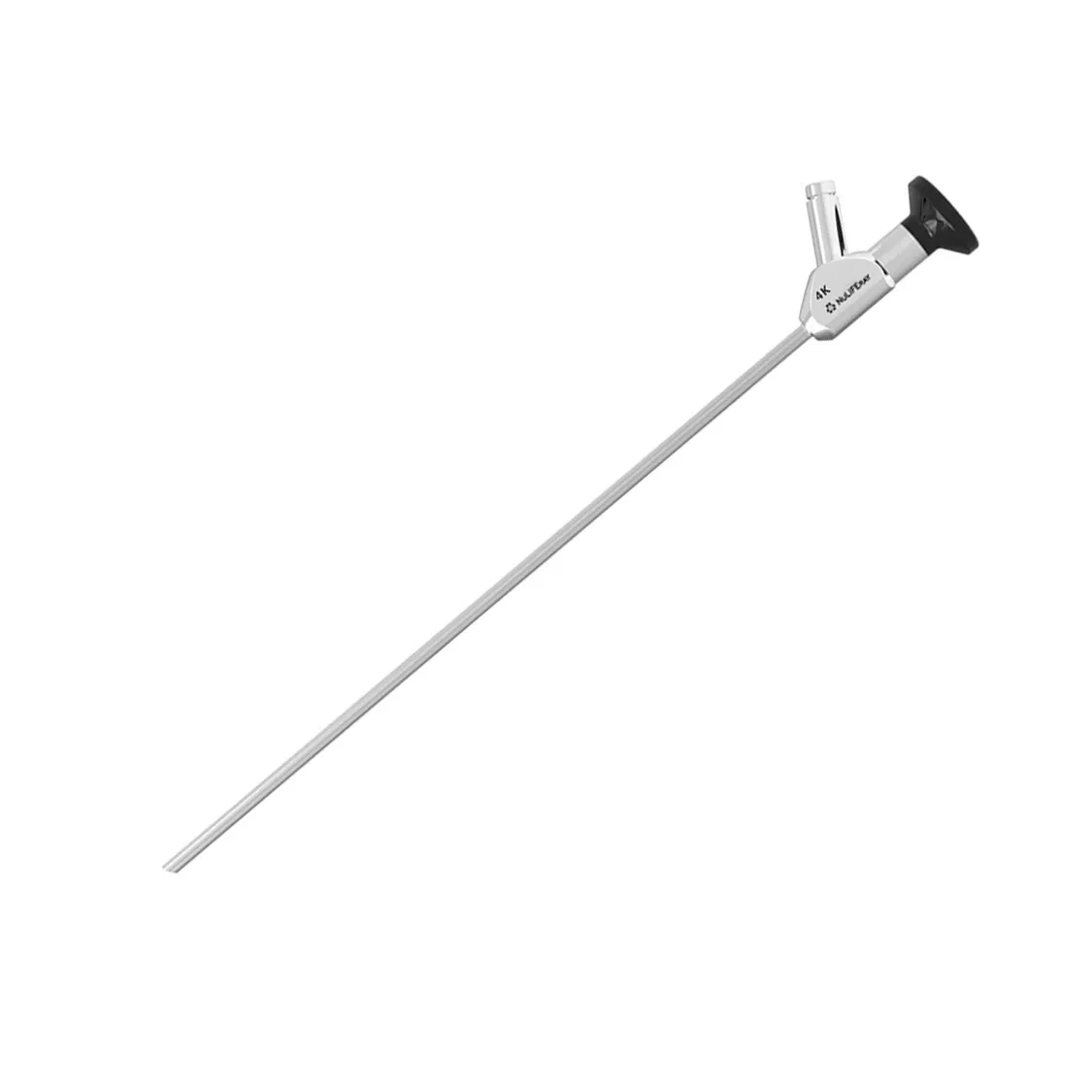

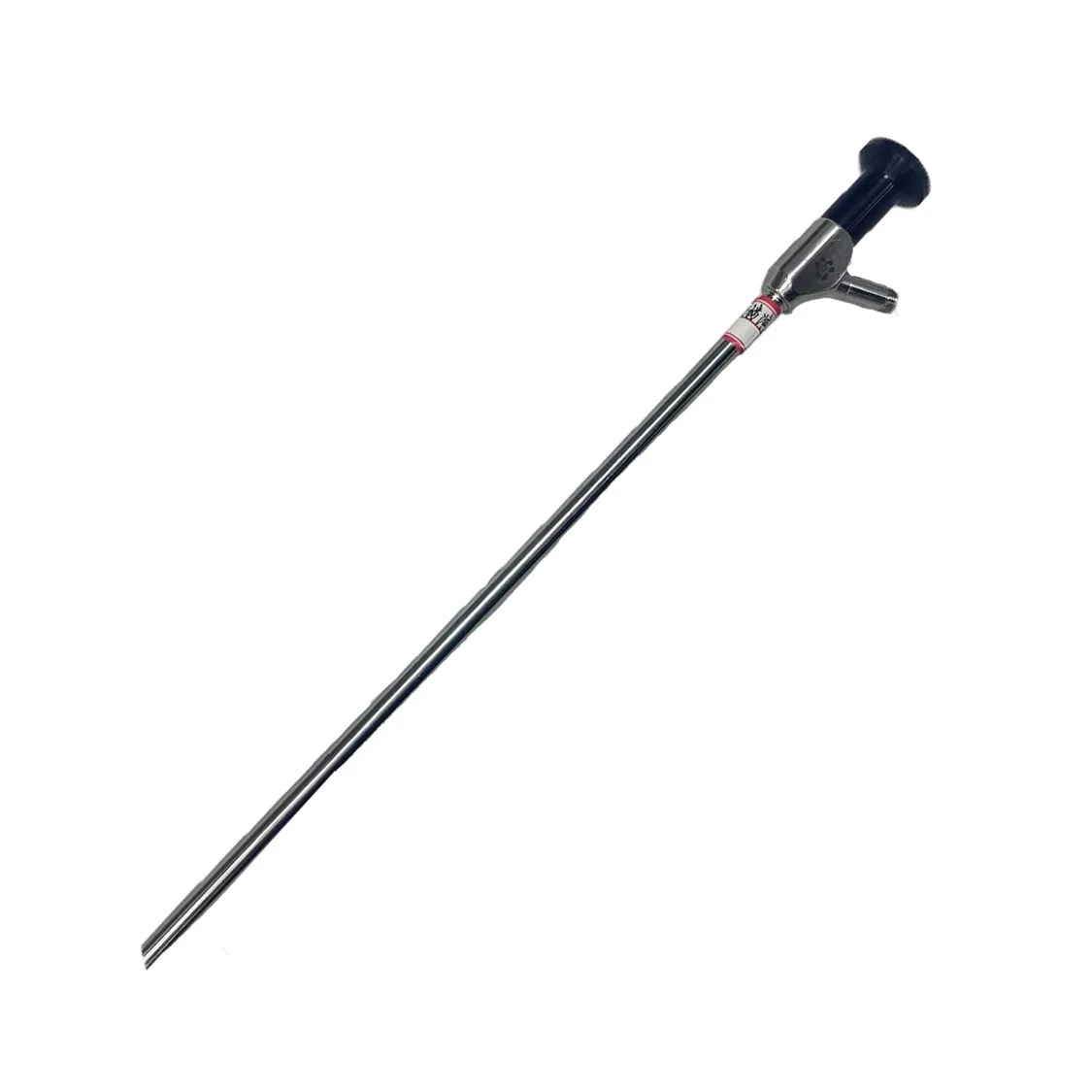

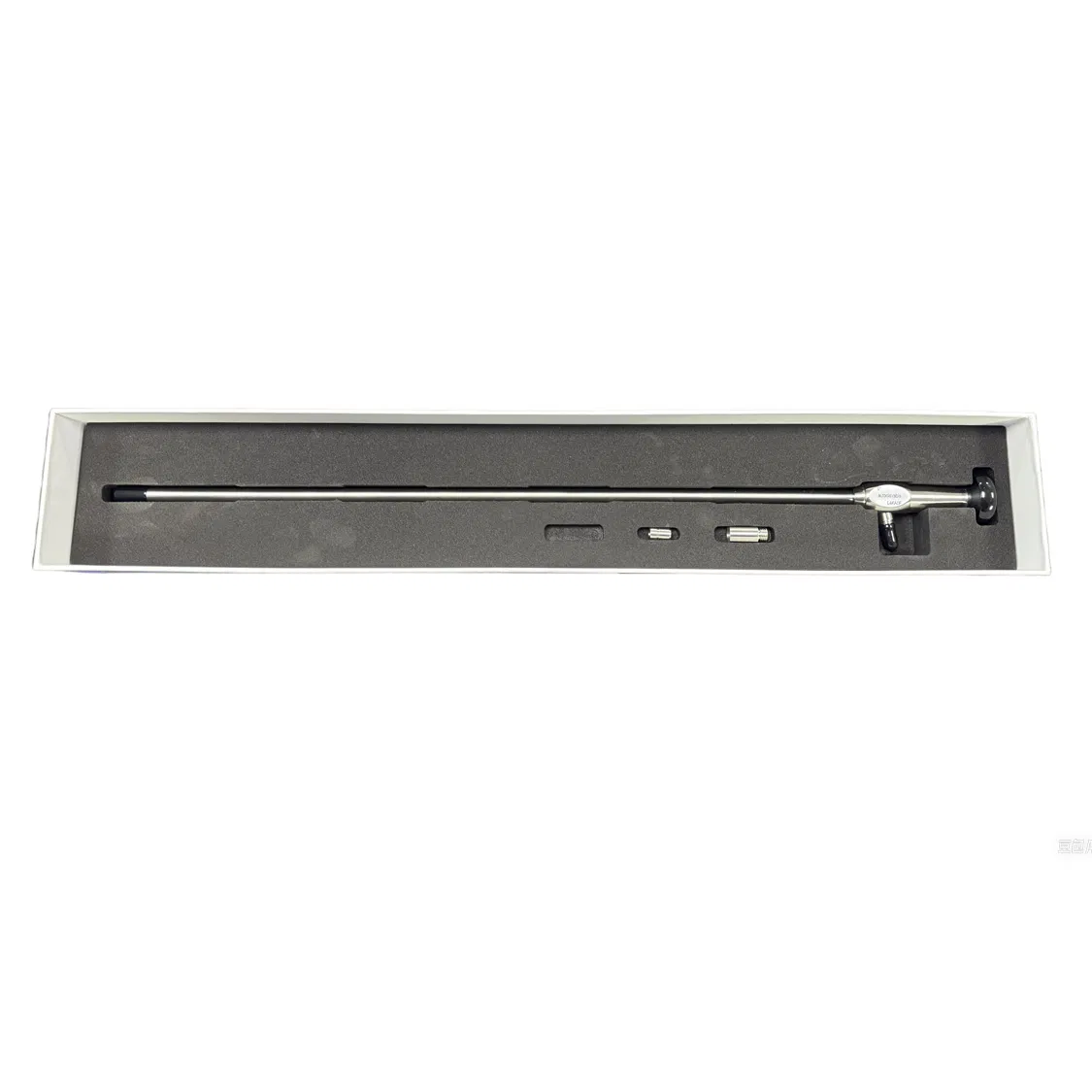

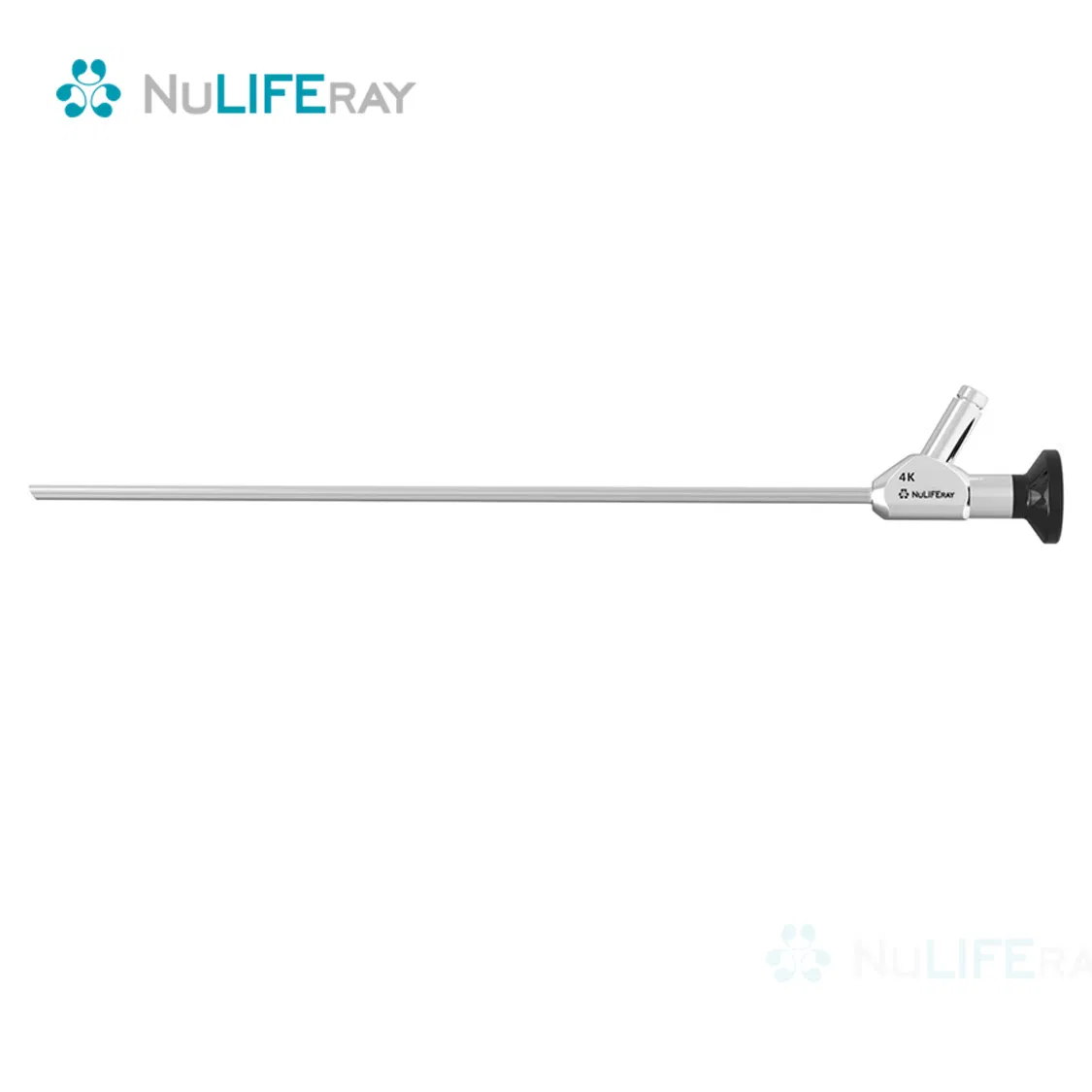

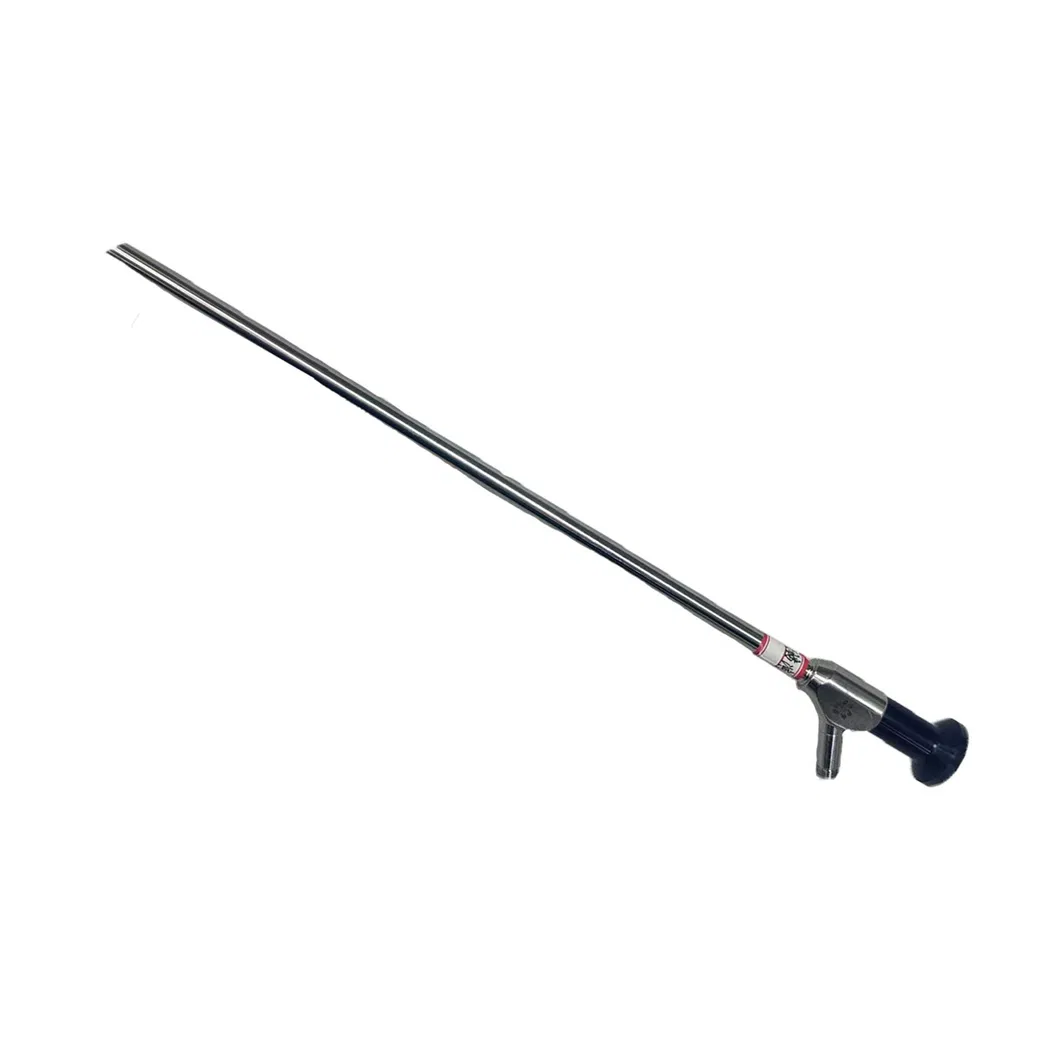

Product Composition: The product is a rigid optical endoscope, consisting of an eyepiece cover, eyepiece, light guide interface, mirror tube, and objective lens.
Scope of Application: Observation imaging for minimally invasive chest and abdominal surgery.
Key Advantages: Anti-fogging technology, 4K Resolution, 16 distinct models available (various lengths, thicknesses, 0°/30° angles, and white light/fluorescence options).
| Model | 4KA0 | 4KA0F | 4KA30 | 4KA30F | L4KA0 | L4KA0F | L4KA30 | L4KA30F |
|---|---|---|---|---|---|---|---|---|
| Optical Working Distance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Active Length (mm) | 345 | 345 | 345 | 345 | 450 | 450 | 450 | 450 |
| Max Insert Width (mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Field of View Angle | 80° | 80° | 80° | 80° | 80° | 80° | 80° | 80° |
| Visual Angle (Θ) | 0° | 0° | 30° | 30° | 0° | 0° | 30° | 30° |
| Depth of Field (mm) | 3-200 | 3-200 | 3-200 | 3-200 | 3-200 | 3-200 | 3-200 | 3-200 |
| Fluorescence | / | Support | / | Support | / | Support | / | Support |
| Model | 4KB0 | 4KB0F | 4KB30 | 4KB30F | L4KB0 | L4KB0F | L4KB30 | L4KB30F |
|---|---|---|---|---|---|---|---|---|
| Optical Working Distance (mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Active Length (mm) | 308 | 308 | 308 | 308 | 345 | 345 | 345 | 345 |
| Max Insert Width (mm) | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 |
| Field of View Angle | 70° | 70° | 70° | 70° | 70° | 70° | 70° | 70° |
| Visual Angle (Θ) | 0° | 0° | 30° | 30° | 0° | 0° | 30° | 30° |
| Depth of Field (mm) | 3-100 | 3-100 | 3-100 | 3-100 | 3-100 | 3-100 | 3-100 | 3-100 |
| Fluorescence | / | Support | / | Support | / | Support | / | Support |
