Product Description

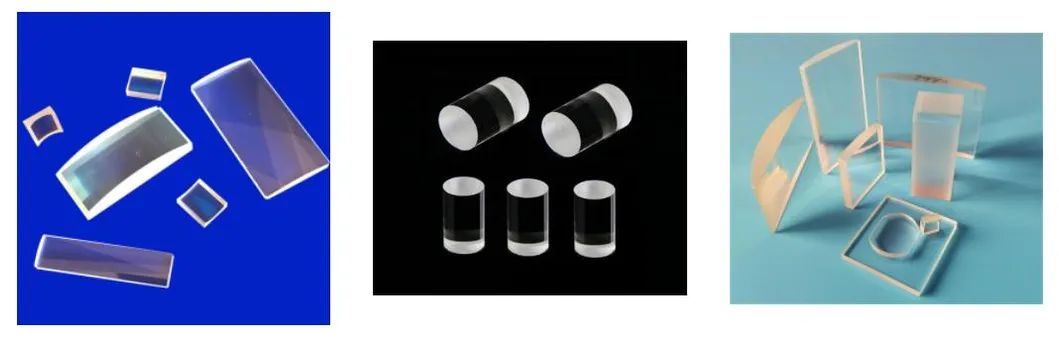

Customized optical lenses manufactured according to your drawings, samples, or detailed requirements.
| Size |
Φ1.0~7mm |
Φ8.0~20mm |
Φ20.0~40mm |
Φ40.0~60mm |
| PV |
0.2um |
0.3um |
0.5um |
<1um |
| Eccentricity |
<=3um |
<=5um |
<=5um |
<=8um |
| Thickness Tol. |
±0.015mm |
±0.020mm |
±0.025mm |
±0.050mm |
| Diameter Tol. |
±0.015mm |
±0.015mm |
±0.015mm |
±0.030mm |
| Surface Quality |
40/20 |
| Material |
CDGM, NHG, Customer Requirements |

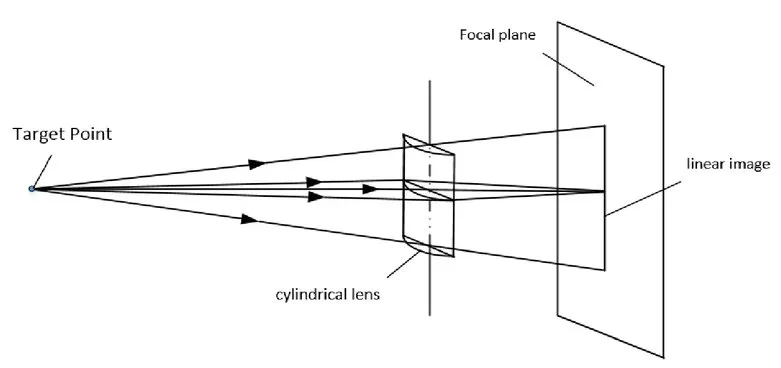

Cylindrical lens is used to correct astigmatism in the optical system, and, in rangefinders, to produce astigmatism, stretching a point of light into a line. It is usually used in barcode scanners, objective systems and other optical systems.
🌟
Features & Applications
1. Correcting Astigmatism
One of the main applications of cylindrical lenses is in ophthalmology to correct astigmatic vision. An astigmatic cornea will have different focal points at different axes. A cylindrical lens changes the focal point of one axis to overlap the second one.
2. Laser Line Scanning
Used to capture the shape of a 3D object into a digital copy. This scanning technique measures the deformation of a straight line created by a cylindrical lens when it is incident into a non-flat surface.
3. Laser Scanning Microscopy
Used in combination with acousto-optic deflectors. The cylindrical lens corrects the image and helps focus the light spot onto the correct plane for laser scanning microscopy.
❓
Frequently Asked Questions
Can you provide samples or a sample order?
Yes, we accept sample orders and are willing to send free samples to test and check quality. If the item is not in stock, a sample order can be placed.
What is the lead time for orders?
For large or customized orders, production and shipping typically take around 10-30 working days.

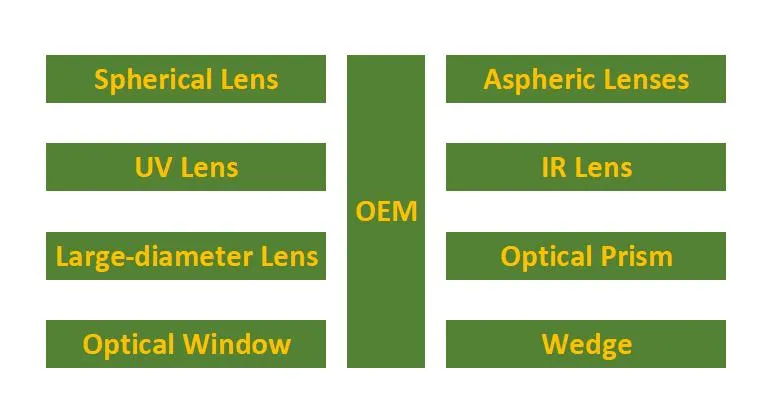

Are OEM services available?
Sure, please provide your design specifications to confirm further detailed information.
Can you help with optical design solutions for commercial projects?
Yes, we have professional experts with over 25 years of experience in optical design to supply the most suitable solutions for your project.
What shipping methods are available?
Small quantities are shipped via express (Fedex, UPS, DHL, EMS). Large quantities can be shipped by sea, train, or air based on your requests.
