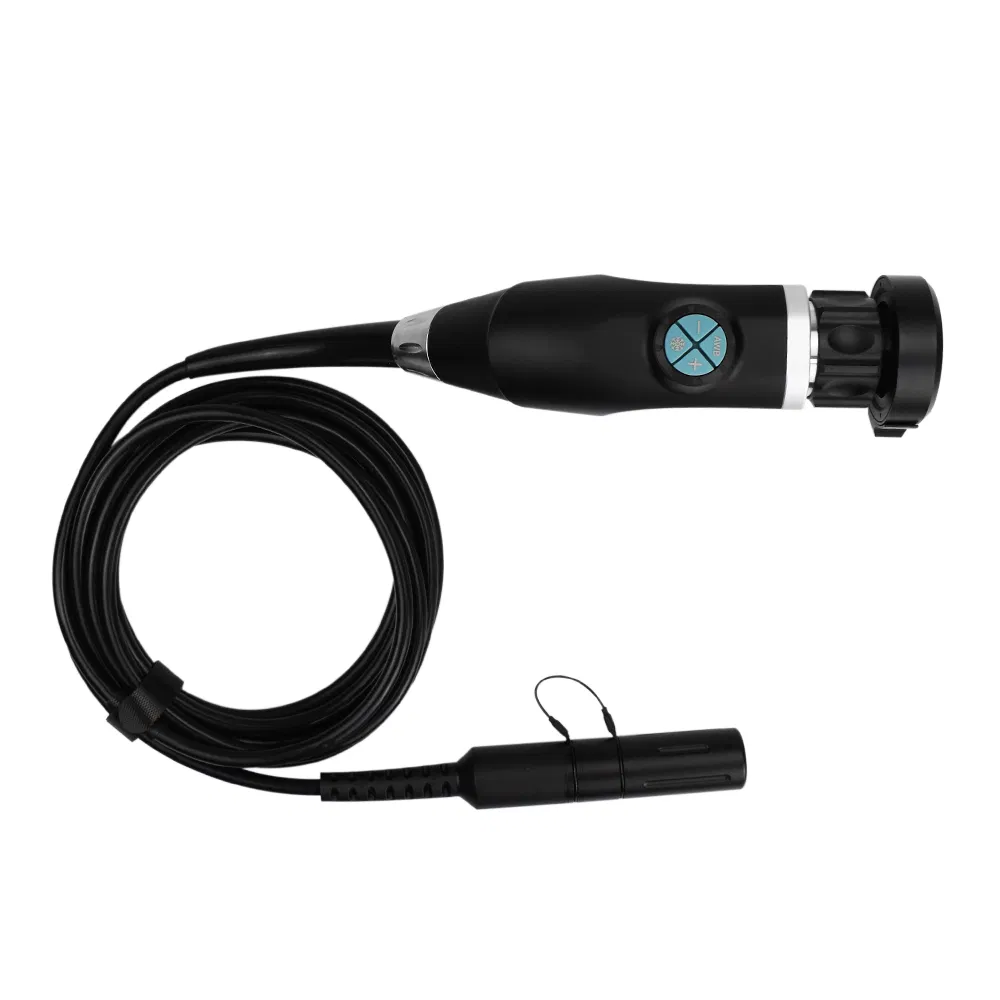

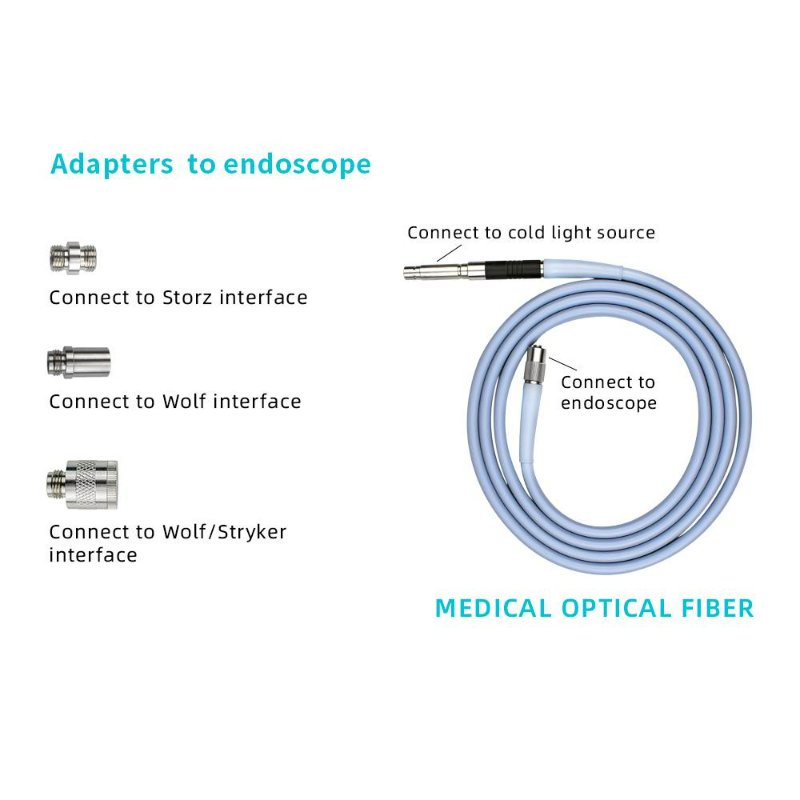

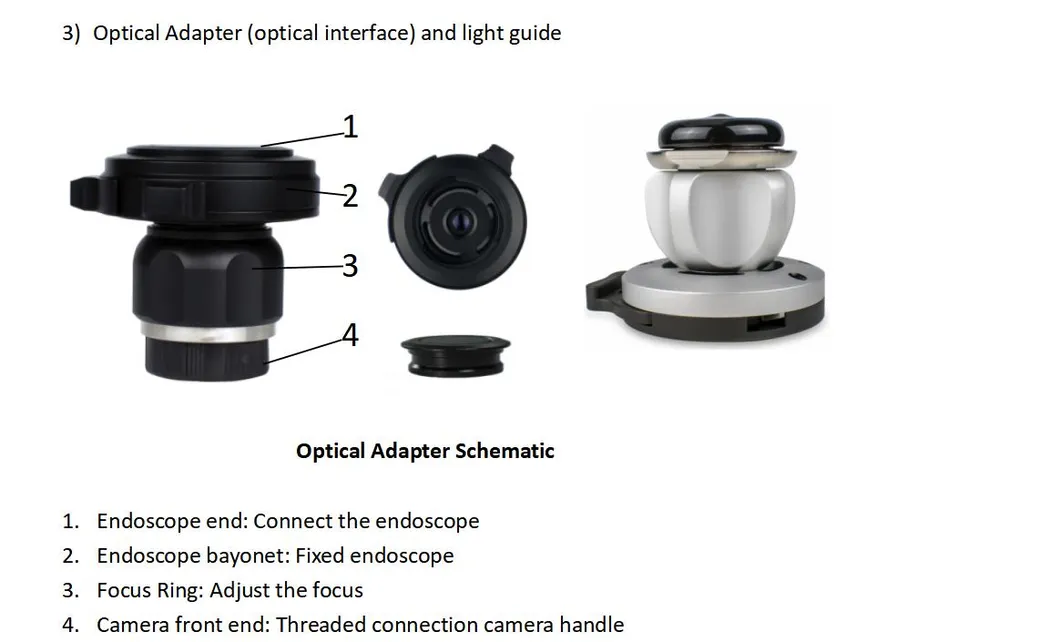

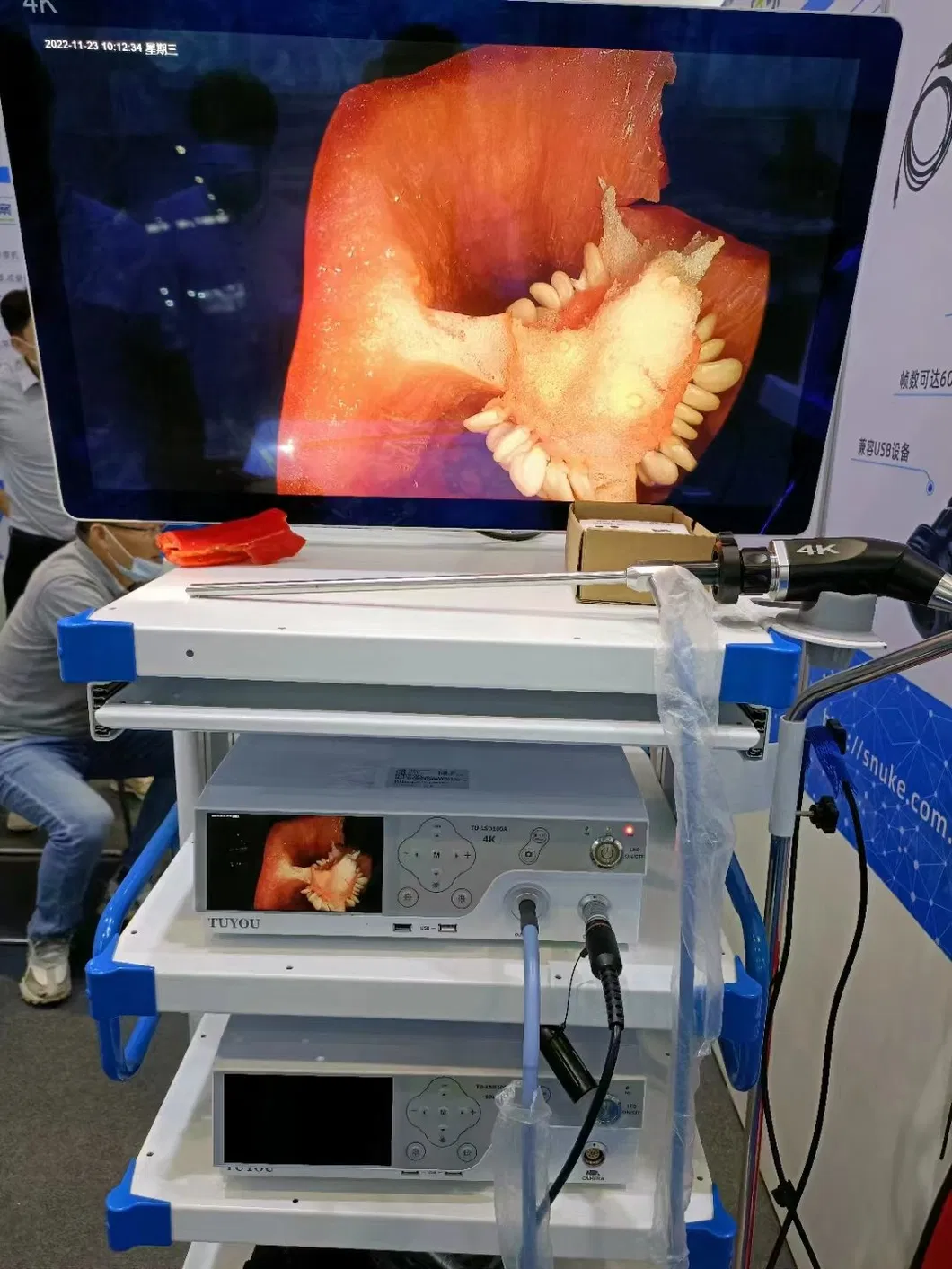

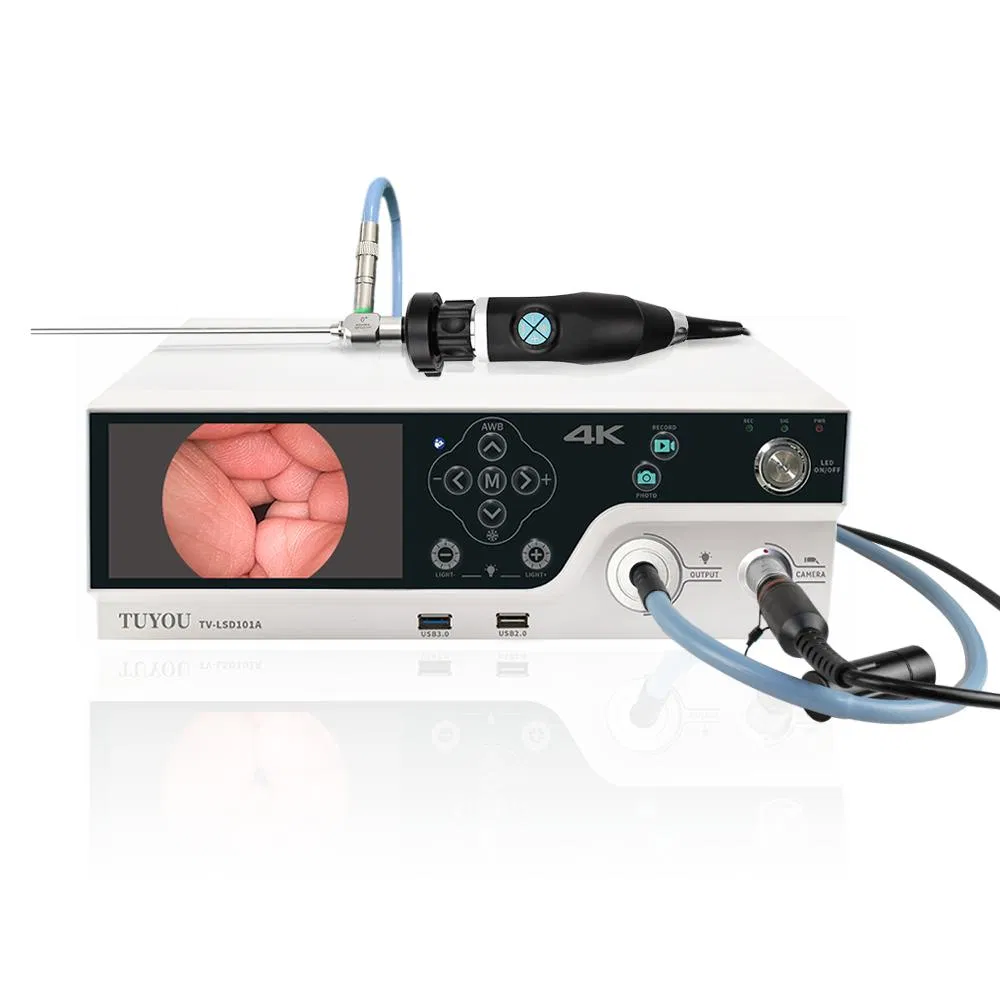

The medical endoscope imaging system is a comprehensive solution consisting of a camera control system, handle camera, light guide, and optical adapter.

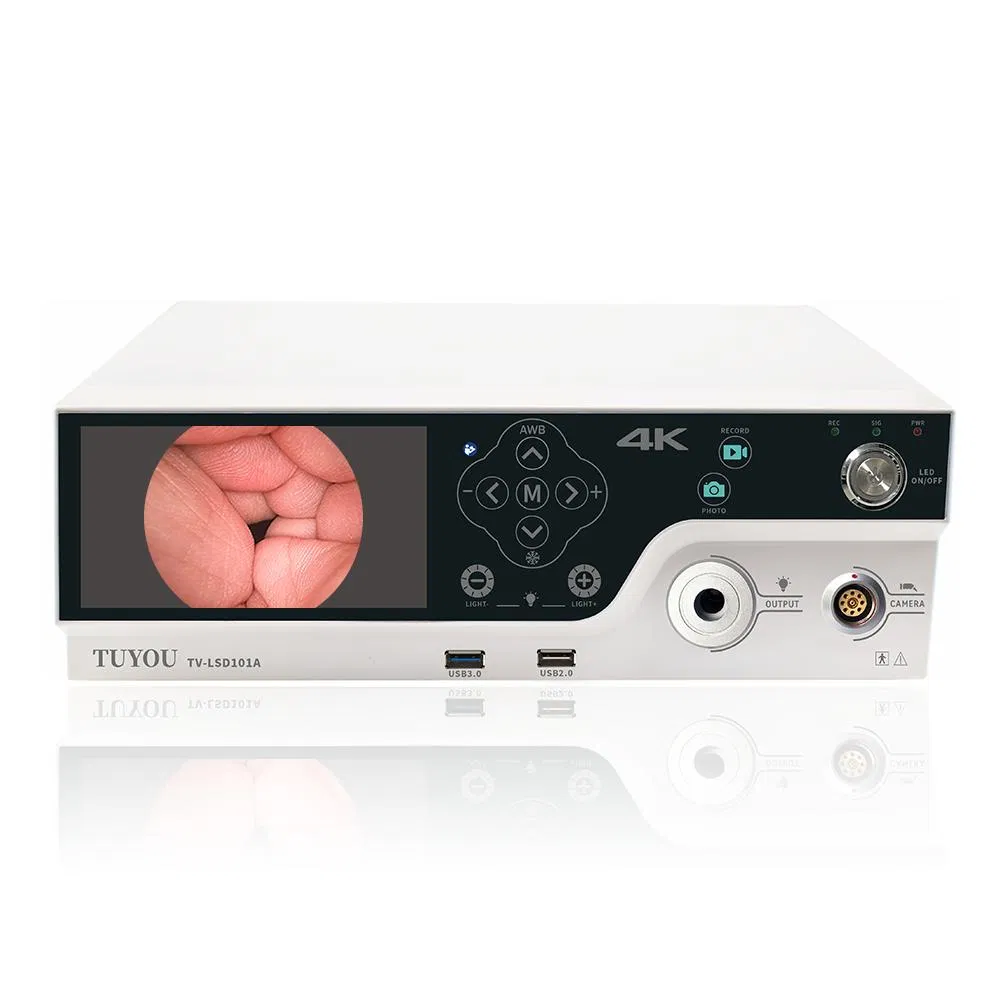

Self-contained video recording system, built-in light source, and integrated display screen.

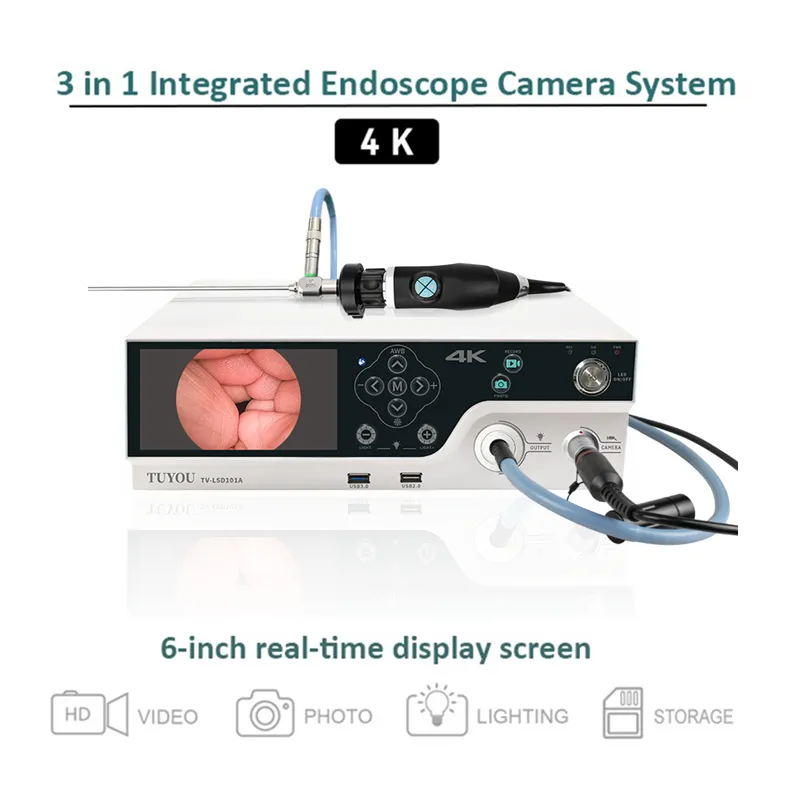

Built-in USB Full HD image storage with a 6-inch screen display for real-time monitoring.
Simplified operation with one-key freeze, white balance, capture, and recording functions.
Brightness memory function ensures the LED light source restarts at previous settings.
| System Parameters | |
|---|---|
| Input Interface | SDI 4K 60FPS |

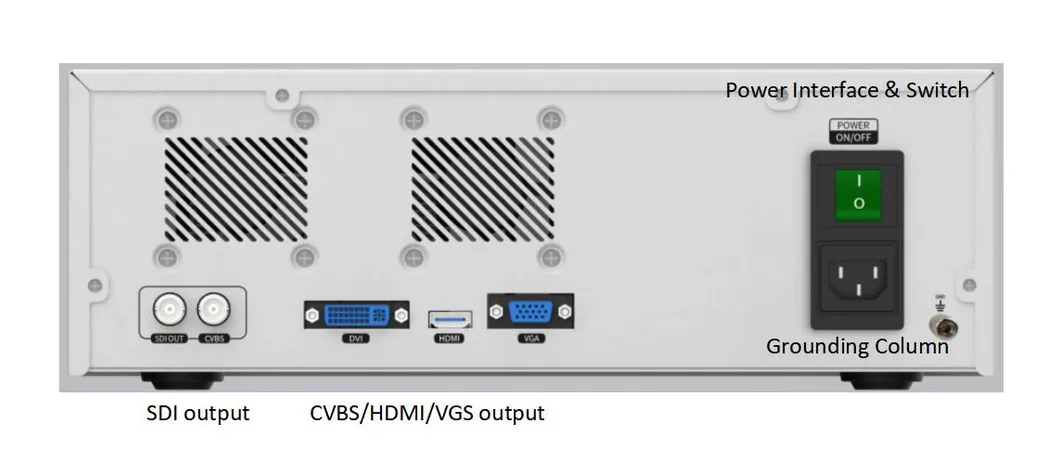

| Output Interface | HDMI / SDI / CVBS |
| U Disk Support | USB 2.0/3.0 (up to 32GB) for photo/video |
| Shortcut Functions | Freeze / White Balance / Video / Photo / Digital Zoom |
| Product Size | L336 * W330 * H116mm |
| Camera Parameters | |
|---|---|
| Effective Pixels | 3864(H) × 2192(V) Approx. 8.46M Pixels |
| S/N Ratio | More than 42dB (AGC off) |
| Digital Zoom | Image zoom 1-8X |

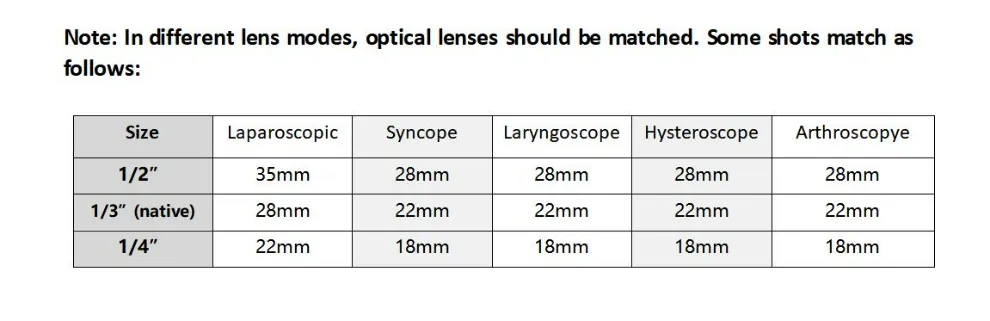

| Lens Modes | ENT / Abdominal / Bladder / Uterine / Joint / Fiber |
| Language Support | English, Chinese, Japanese, Korean, and more |
| Light Source Parameters | |
|---|---|
| Light Type | LED |
| Effective Optical Power | 80W |
| Illuminance | 400W LUX |
| Color Temperature | 5800-6500K |
Our manufacturing facility is a high-tech enterprise integrating R&D, production, sales, and service of medical endoscope camera products. With over 20 years of experience, we have developed SD, HD, 2K, 4K, and fluorescence endoscope video systems.
