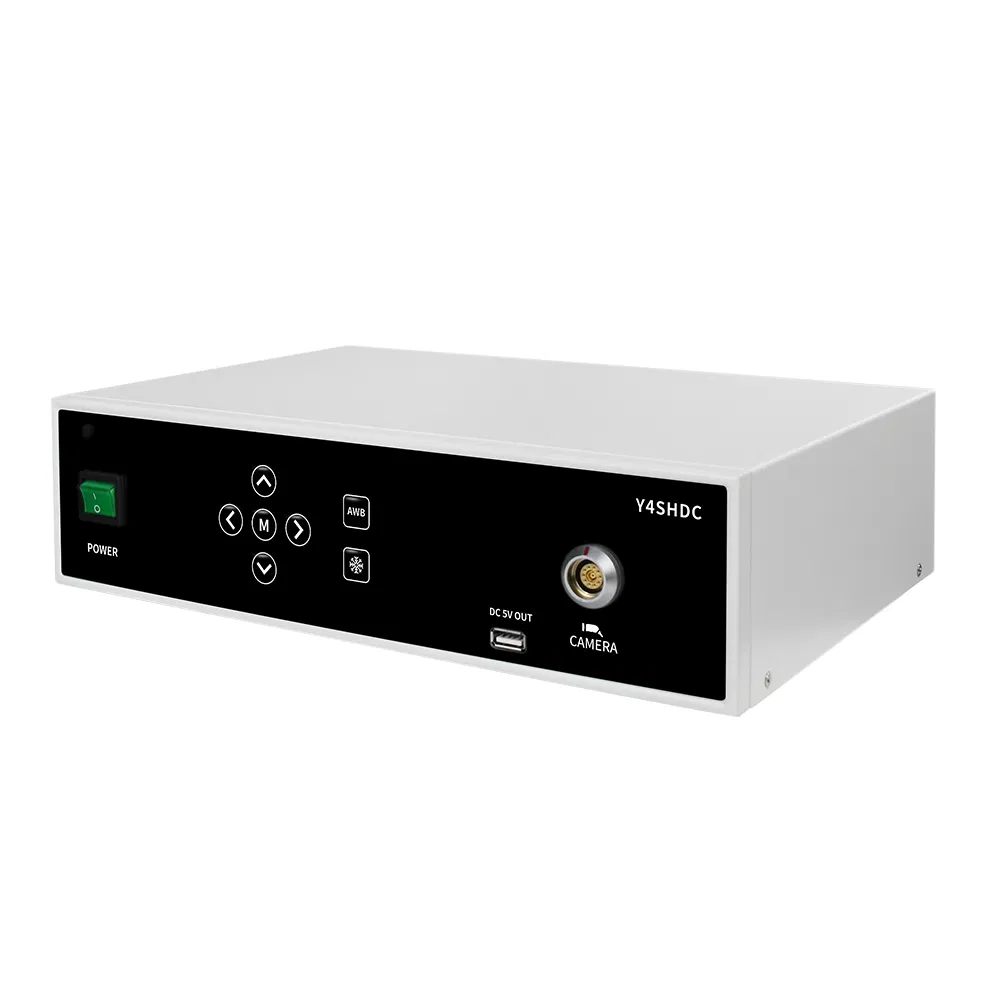

Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology
Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology
Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology
Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology
Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology
1 / 5
Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology
Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology
Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology
Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology
Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology

Icen Full HD Coms Medical Endoscopic Camera Video Endoscope System for Surgical Laparoscopy Ent Gynecology

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Medical HD Endoscope Camera
Send Inquiry

Product Description

i

Basic Information

Model NO.:
IN-Y4HDSC
Certification:
CE
Product Name:
Endoscopy Video Processor
Image Sensor:
1/1.8" or 1/2.8" Sony CMOS
Resolution:
1080P (60fps)
Brightness:
1-30 Steps Adjustable
Working Temp:
-10℃ to +75℃
Power Supply:
DC12V ±10% <1.7W
P

Product Presentation

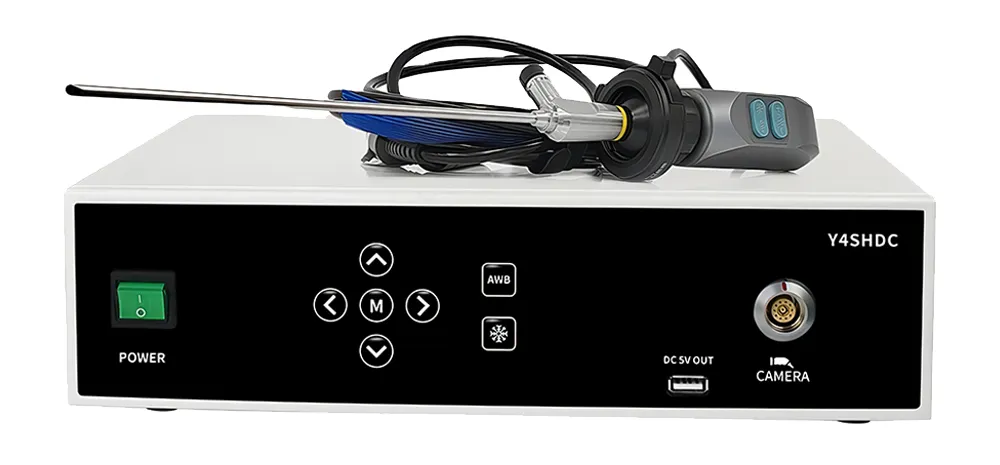

Endoscope System Overview

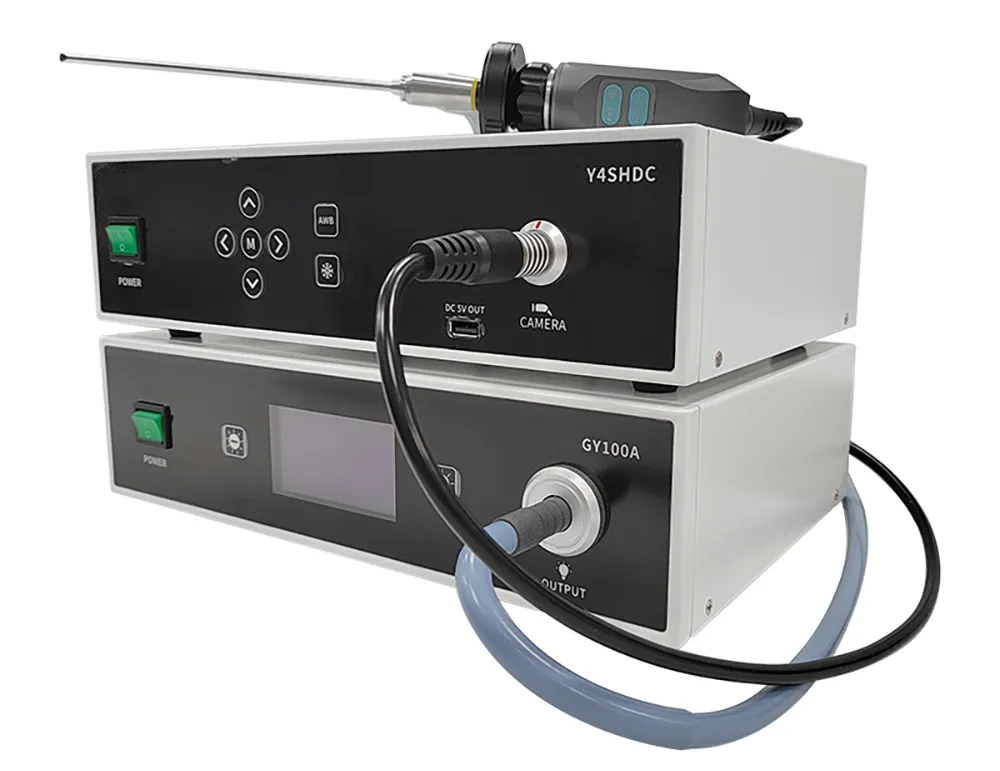

Endoscope System Detail

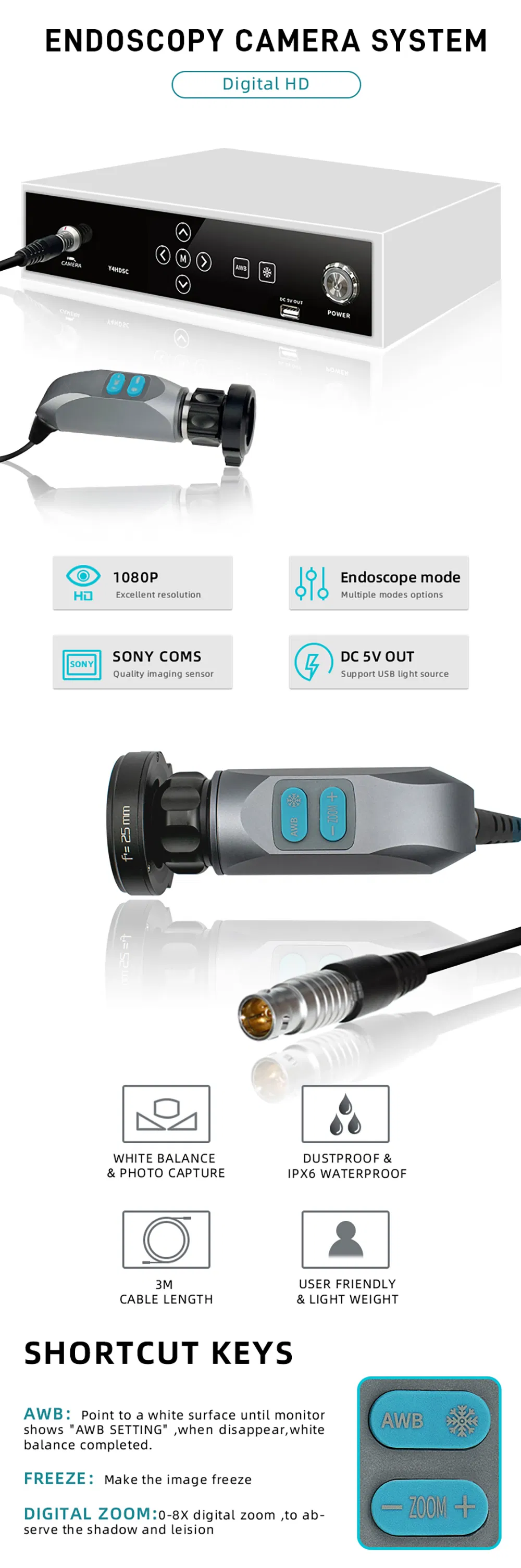

Full System Components

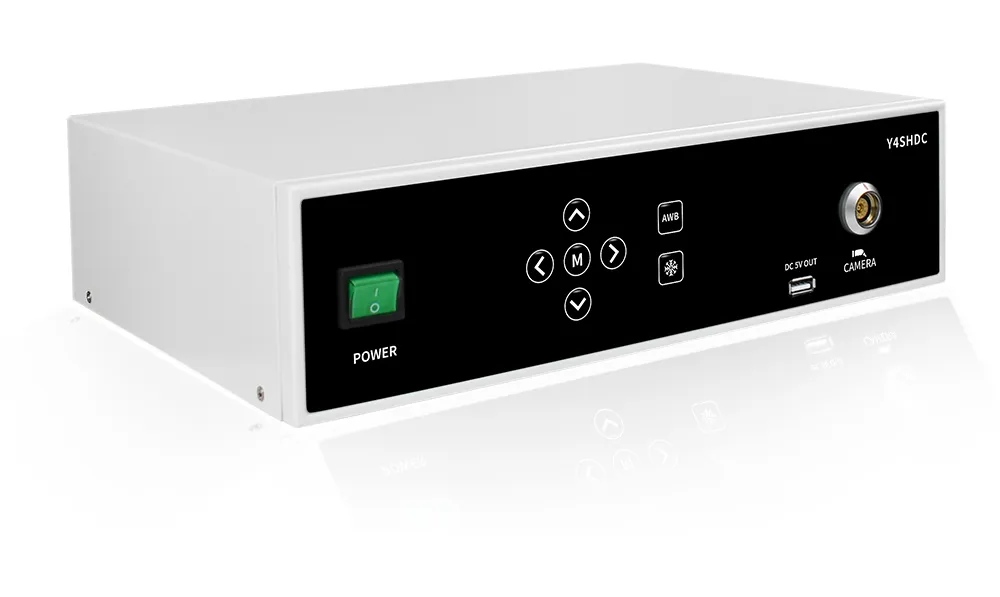

Video Processor Feature

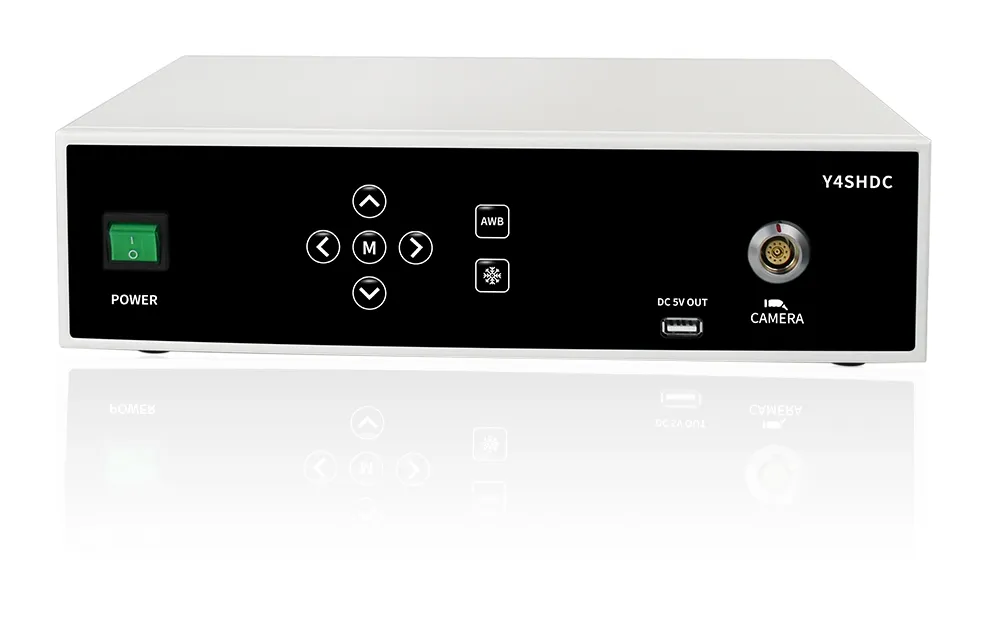

Interface View

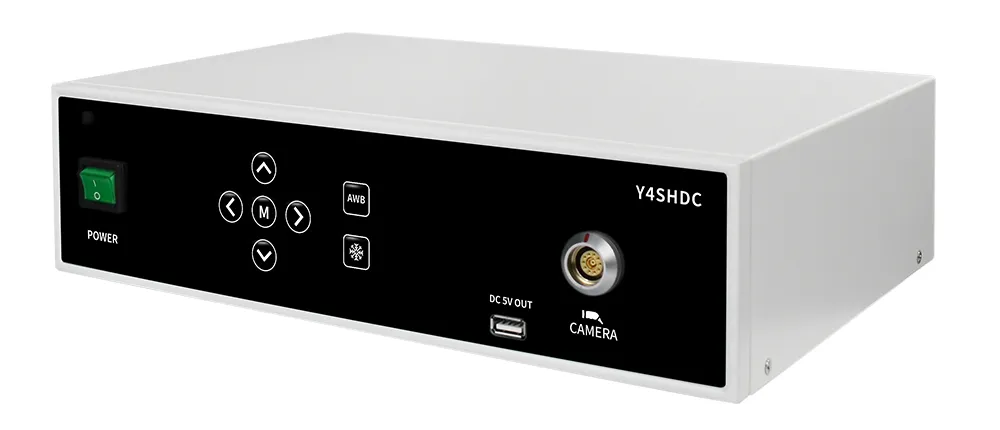

Operational View

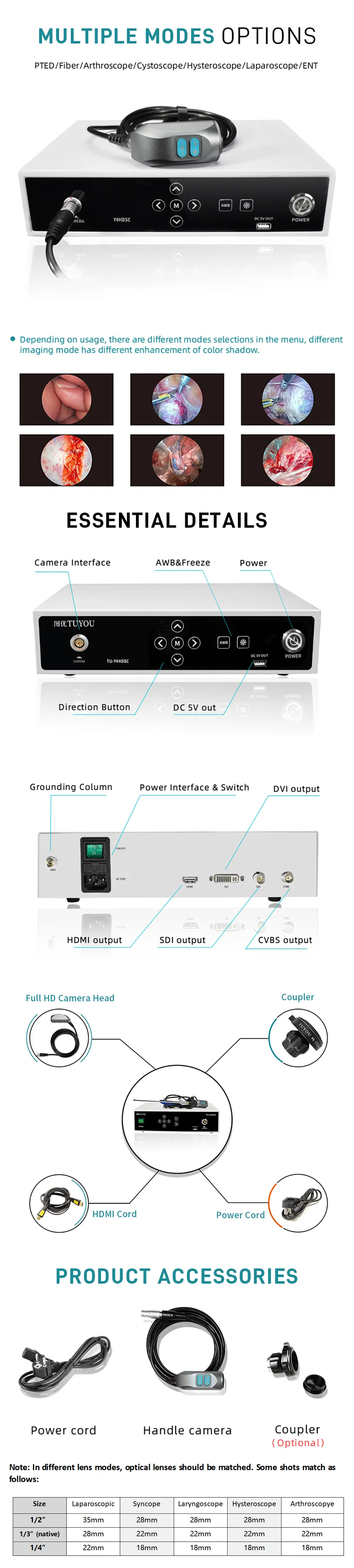

Detailed Technical Chart
S

Technical Specifications

Resolution SDI: 1080P@30fps, 1080P@60fps

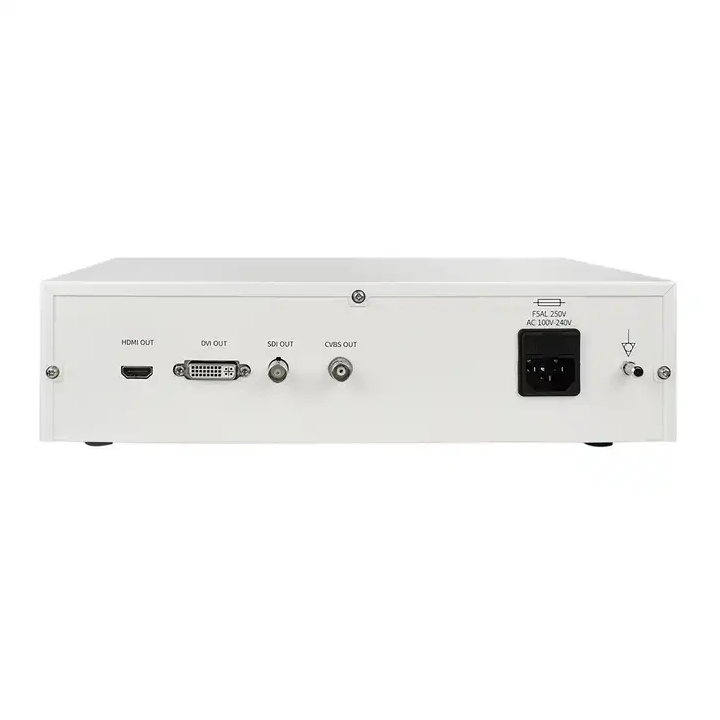

Output DVI + HDMI + SDI + CVBS
Effective Pixels 1845(H) × 1097(V) Approx. 2.13M pixels
Image Sensor 1/2.8" or 1/1.8" SONY CMOS (IMX385)
Brightness/Sharpness 1-20 steps adjustable
Backlight Mode OFF / BLC / HLC / WDR
Endoscope Mode PTED / Fiber / Arthroscope / Cystoscope / Hysteroscope / Laparoscope / ENT
Color Adjustment User Defined Gain & Hue (Yellow, Blue, Green, Red 1-250)
Power Consumption 1.2 W (≤100mA) / Working Current: 140mA±10mA
Processor Size 2000 x 1700 x 170mm
Application Scenarios
F

Frequently Asked Questions

What is the image quality and resolution of this system?
The system utilizes a high-performance Sony CMOS sensor (1/1.8" or 1/2.8") providing Full HD output resolution of 1080P at 60fps for smooth, clear medical imaging.
Which surgical procedures is this endoscopy processor compatible with?
It supports multiple specialized modes including PTED, Fiber, Arthroscope, Cystoscope, Hysteroscope, Laparoscope, and ENT procedures.
What video output interfaces are available?
The processor is highly versatile, offering DVI, HDMI, SDI, and CVBS outputs to ensure compatibility with various medical monitors and recording devices.
Can the brightness and color be customized for different environments?
Yes, the system supports 1-30 steps of brightness adjustment and comprehensive color gain/hue settings for Red, Green, Blue, and Yellow to meet specific surgical requirements.
What are the power requirements and working conditions?
The device operates on a DC12V ±10% power supply with low power consumption (<1.7W) and is designed to work in temperatures ranging from -10℃ to +75℃.
Does the system support image freezing and zooming?
Yes, the system includes a built-in Freeze function and Digital Zoom (D-ZOOM) capabilities for detailed real-time examination during procedures.
