| Model NO. | TU-LSD101B | Certification | CE, ISO13485, FCC |
| Product Name | Medical Endoscope Camera | Image Sensor | 1/1.8" Sony CMOS |
| Video Output | HDMI/DVI/VGA/SDI/CVBS | Application | Laparoscopy/Gynecology/Urology/Ent Surgery etc. |
| USB Record | Two USB Recorder, up to 32g | Warranty | Two Years |
| Specification | 46.5*45*21.5cm 6kg | Production Capacity | 2000/Month |

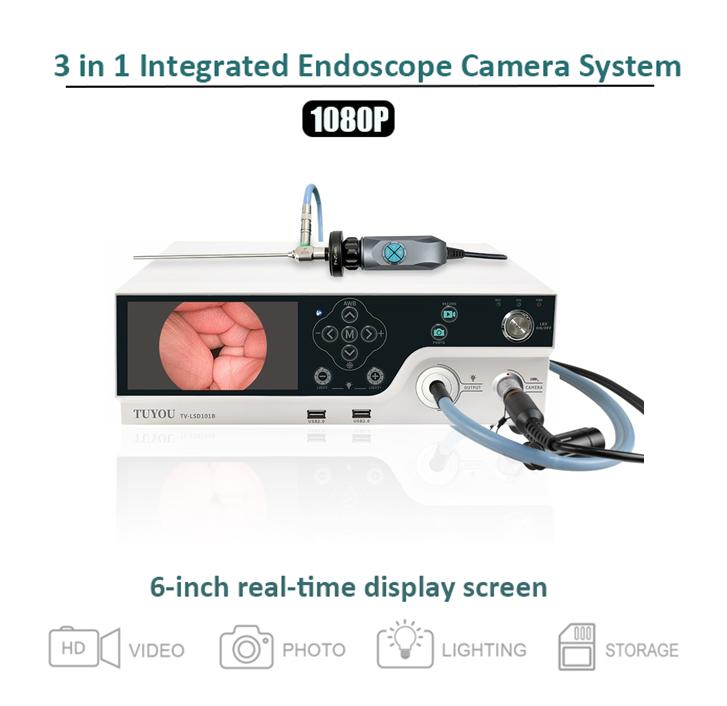

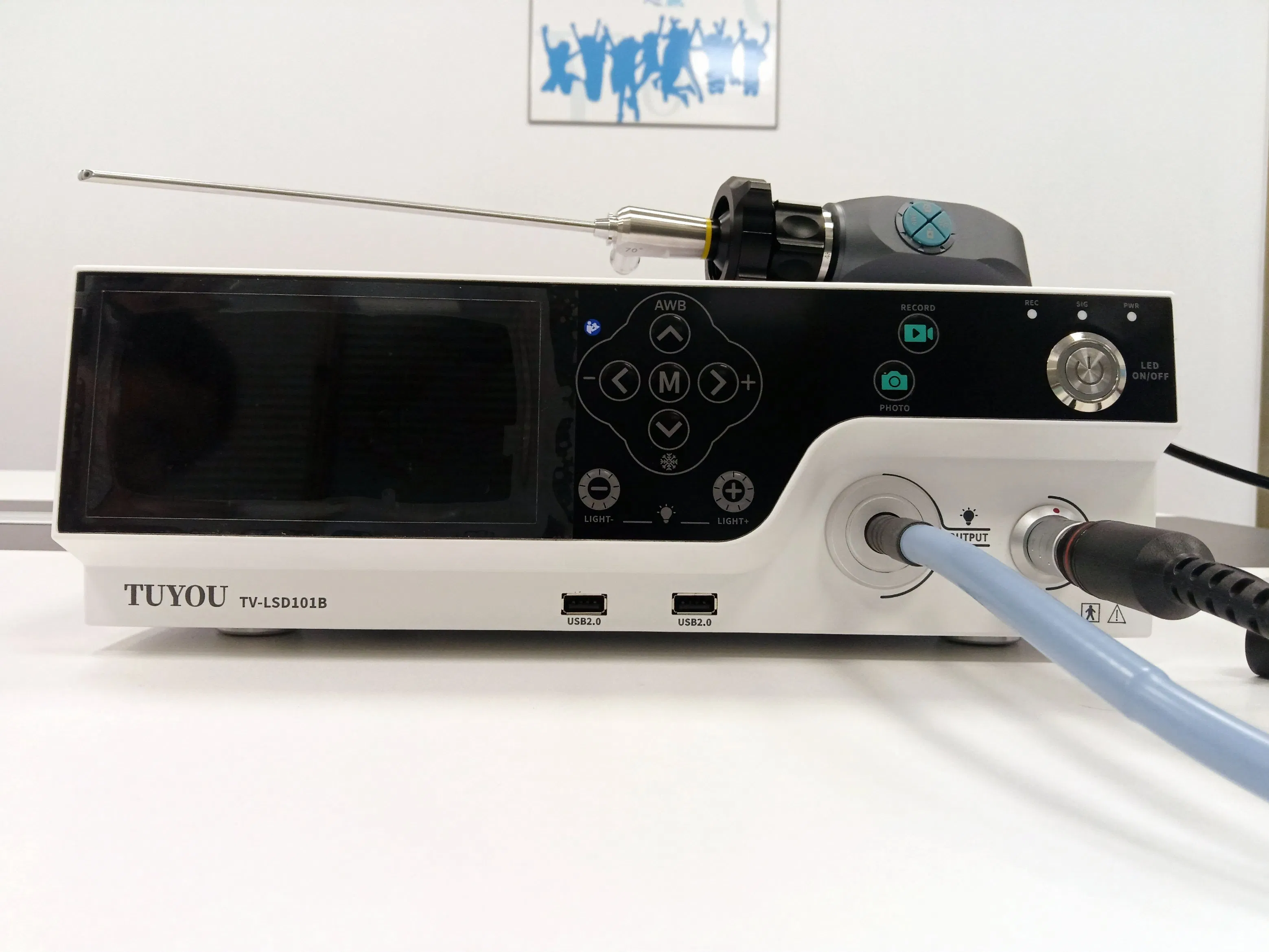

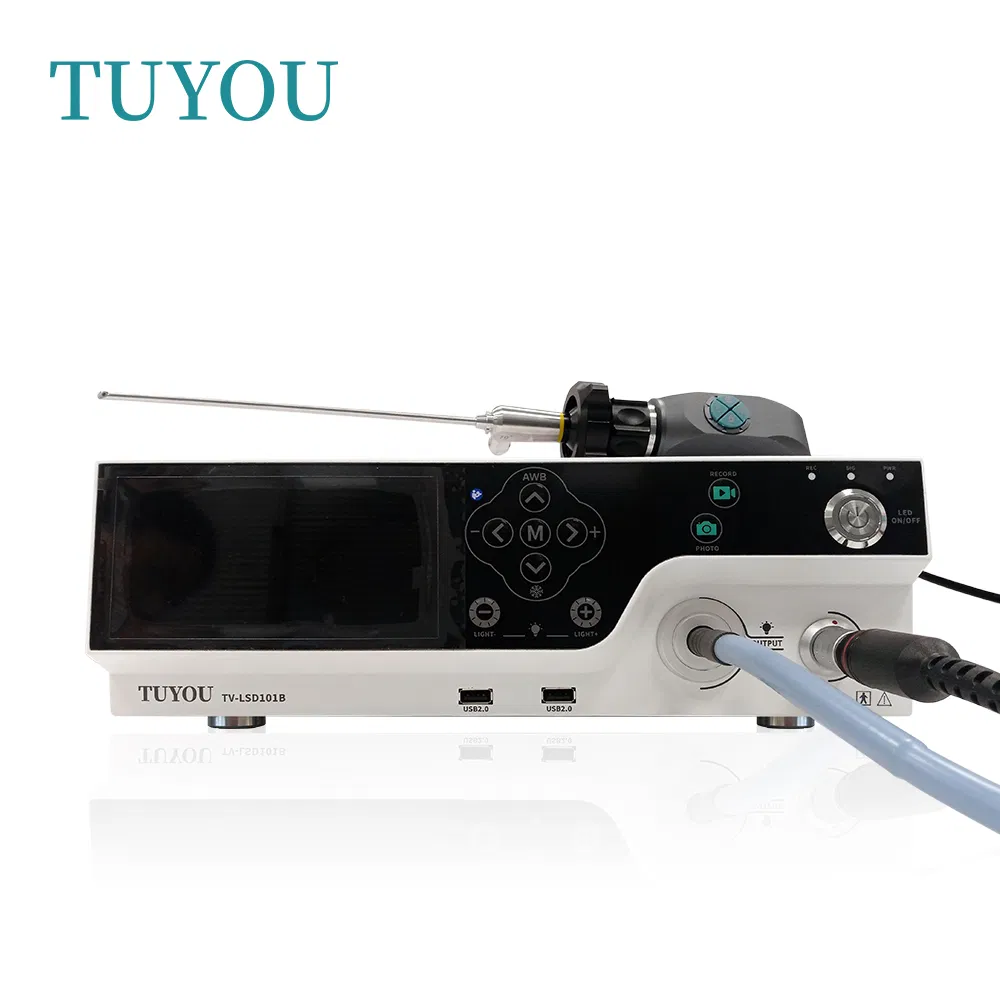

Full HD Medical Laparoscopy Endoscope Camera for Rigid Endoscopy Surgery W/Light Source USB Record
⚙️ Product Composition Introduction:

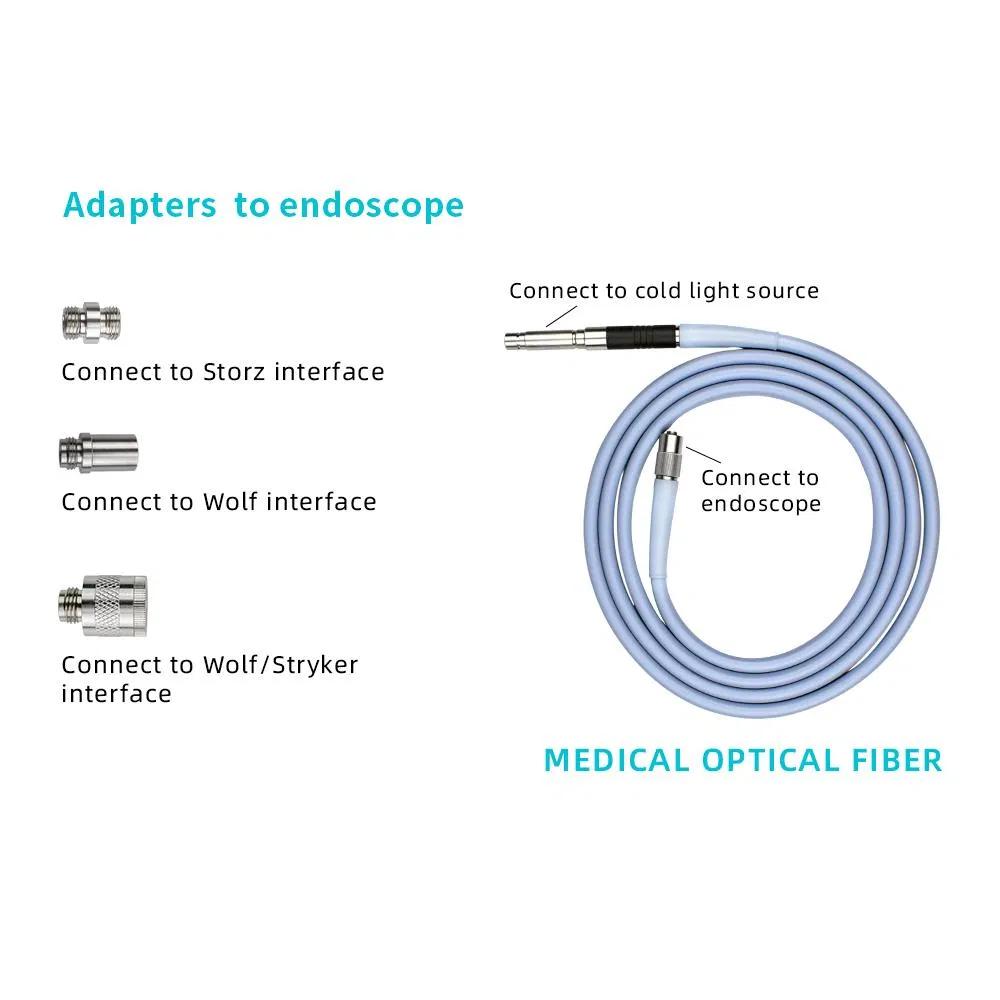

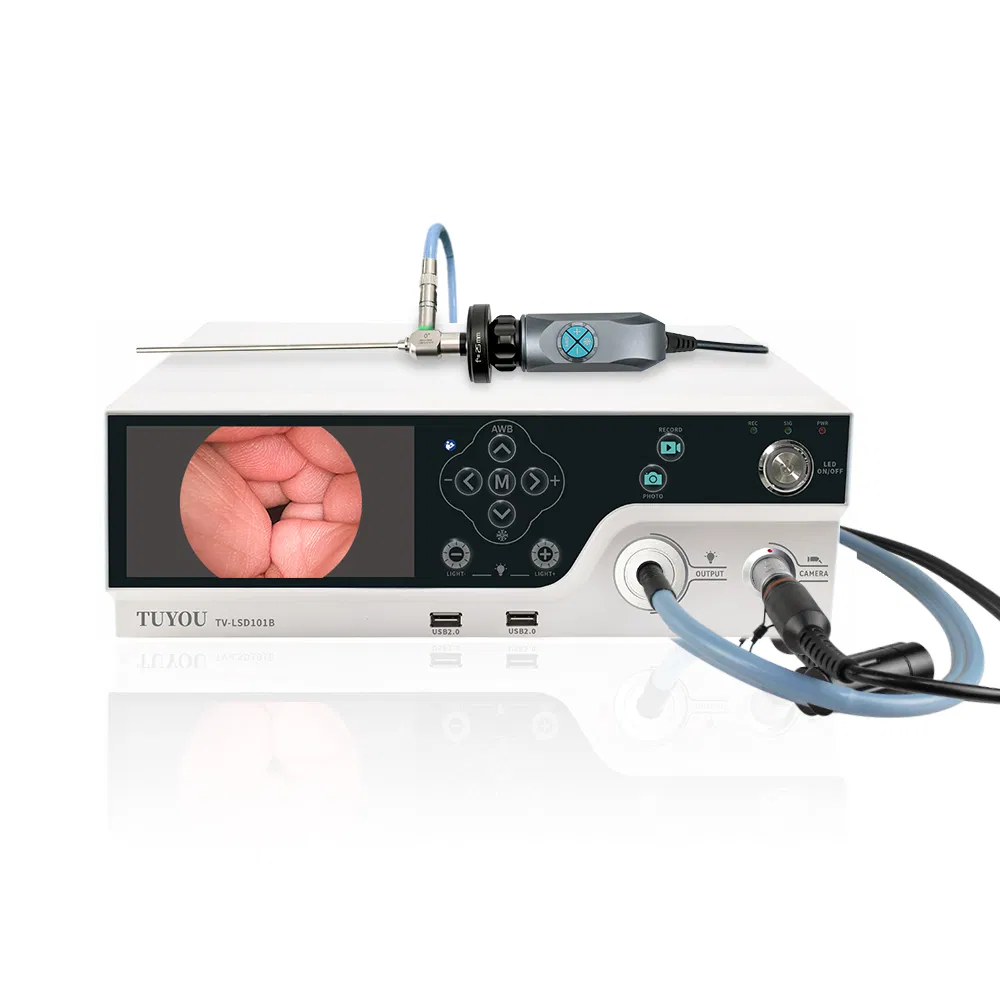

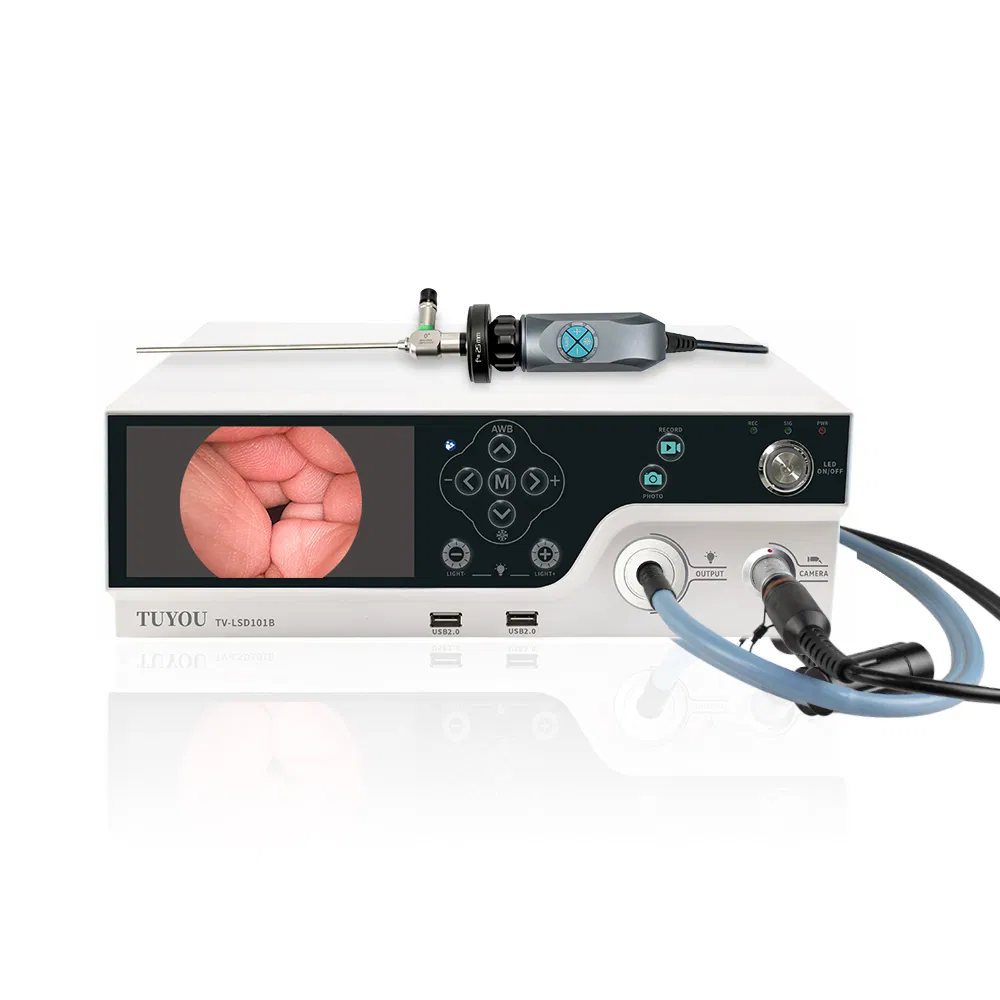

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).
| System Parameters | |
| Input Interface | SDI 1080P 60FPS |

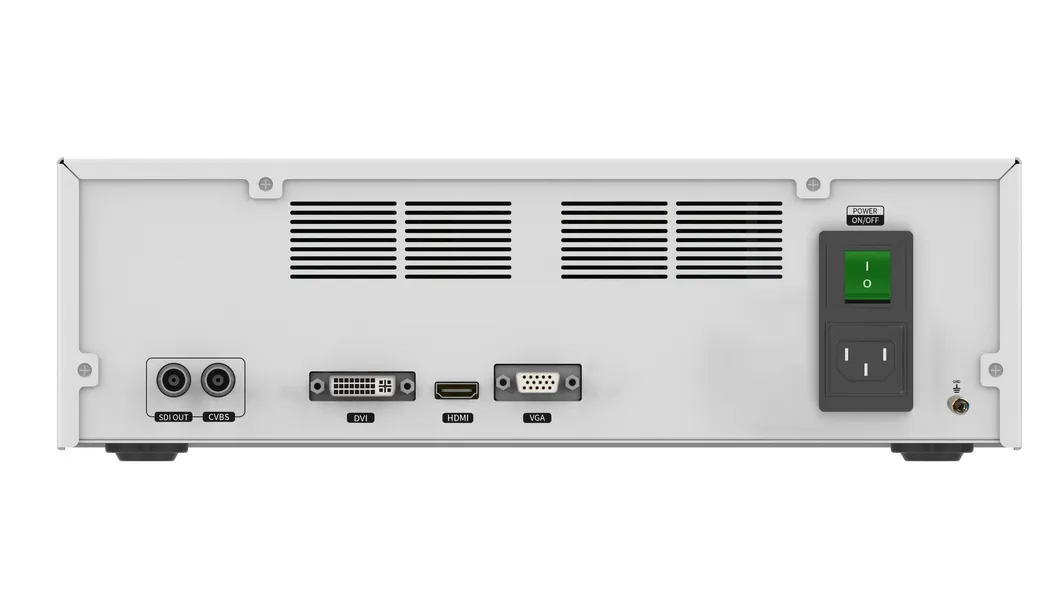

| Output Interface | HDMI/DVI/VGA/LVDS/SDI/CVBS |
| Power Supply | AC110V~240V |
| U Disk Support | USB 2.0/3.0 (up to 32GB) |

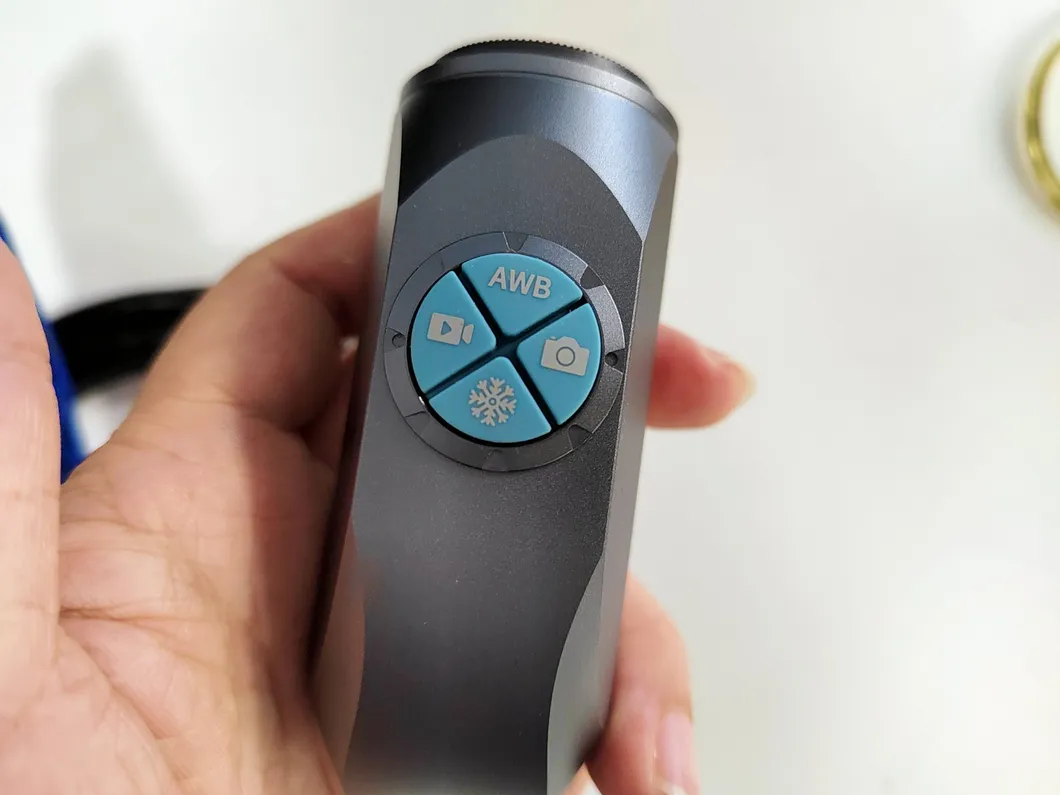

| Shortcut Keys | Freeze / White Balance / Video / Photo / Digital Zoom |
| Camera Parameters | |
| Image Sensor | 1/1.8" SONY CMOS |
| Effective Pixels | 1845(H) × 1097(V) Approx. 2.13M pixels |
| Resolution | SDI 1080P 60fps |
| D-ZOOM | Image zoom 1-8X |
| Lens Modes | ENT/Abdominal/Bladder/Uterine/Joint/Fiber/Custom |
| Light Source Parameters | |
| Light Type | LED |
| Effective Power | 100W |
| Illuminance | 400W LUX |
| Color Temp | 5800-6500K |
A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. With more than 20 years of experience in independent production and R&D of video products, we have completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.
Our advanced medical-grade environmental protection plant spans more than 2000 square meters. We hold numerous national R&D patents and have passed international quality systems including CE, FCC, and RoHS, providing OEM/ODM services for well-known enterprises globally.

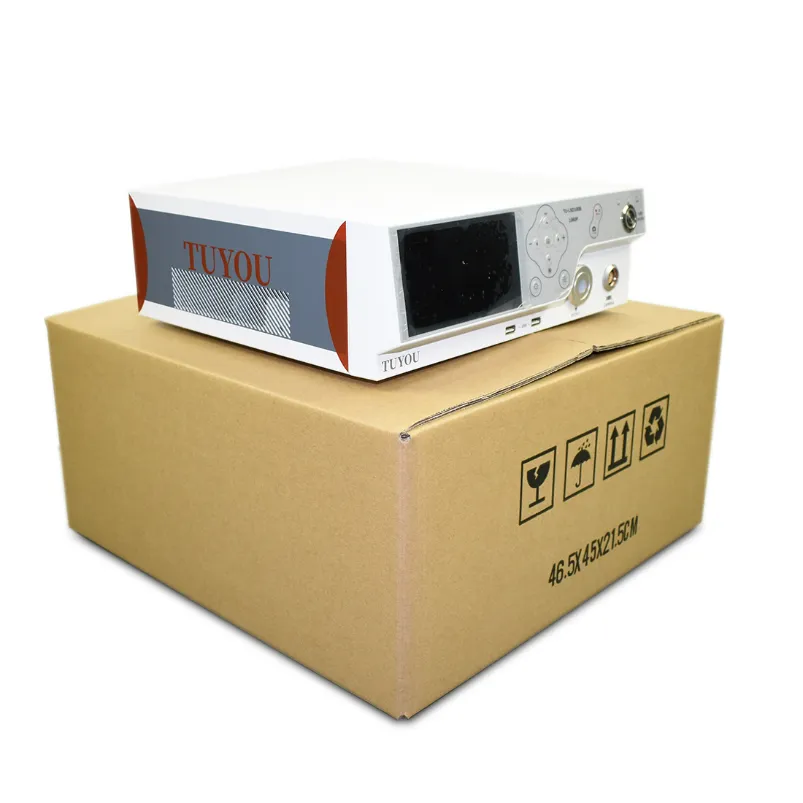

Standard carton with foam protection | 1 Set per Carton Box
