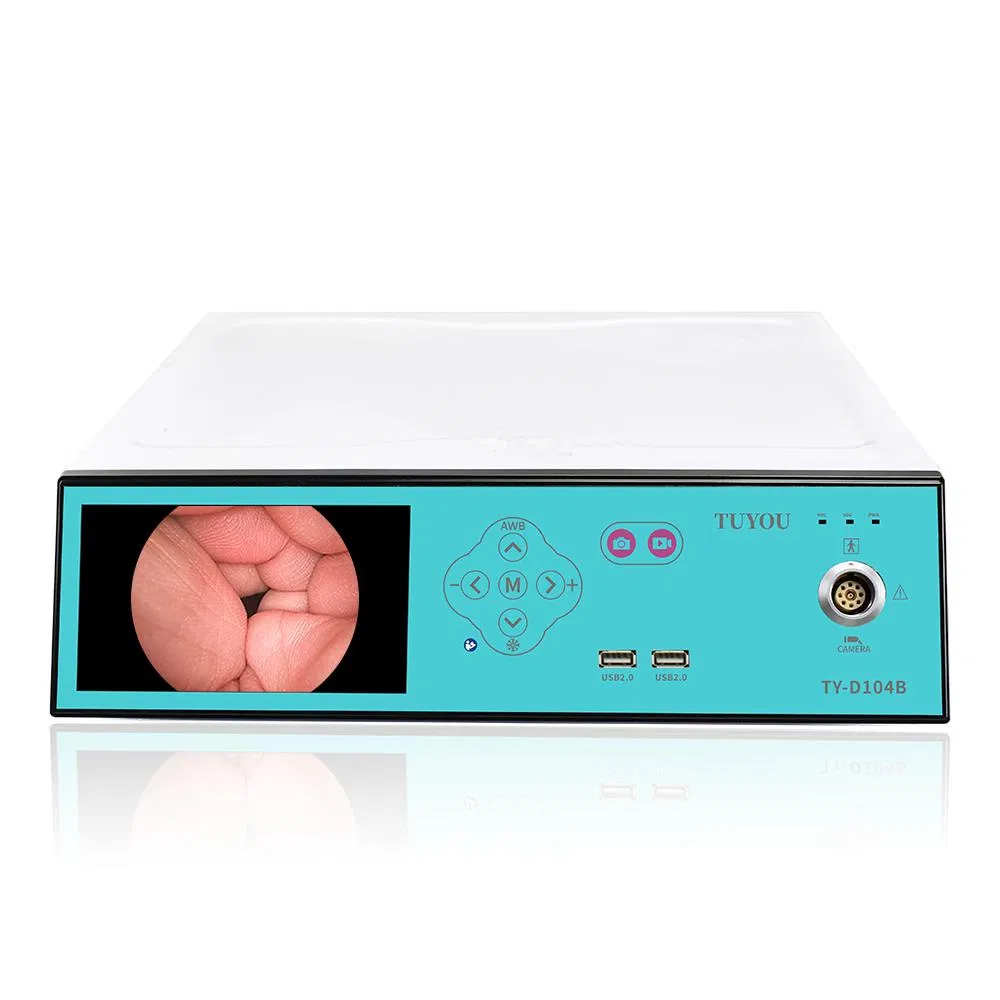

| Model NO. | TY-D104B/TY-LS104G |
|---|---|
| Scale | Medium |
| Output Interface | DVI/VGA/SDI/CVBS |
| Power | AC110V~240V |
| U Disk | U Disk USB2.0(up to 32GB) to Record and Take Photos |
| SNR | <45dB |
| Lens Mode | Pted/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope |
| Specification | L336*W330*H116mm |
| System Parameters | |
|---|---|
| Input Interface | 1080P |
| Keypad Control | Control the motherboard menu and shortcut keys through RX/TX |
| Shortcut Functions | Freeze/white balance/video/photograph/digital zoom |
| Environment | -10ºC~60ºC |
| Net Weight | 3.9KG |
| Camera Parameters | |
| Image Sensor | 1/2" SONY CMOS |
| Effective Pixels | 1845(H) × 1097(V) Approx. 2.13M pixels |
| Resolution | SDI 1080P |
| Digital Zoom | 0-8x |
| Working Current | 140mA±10mA |

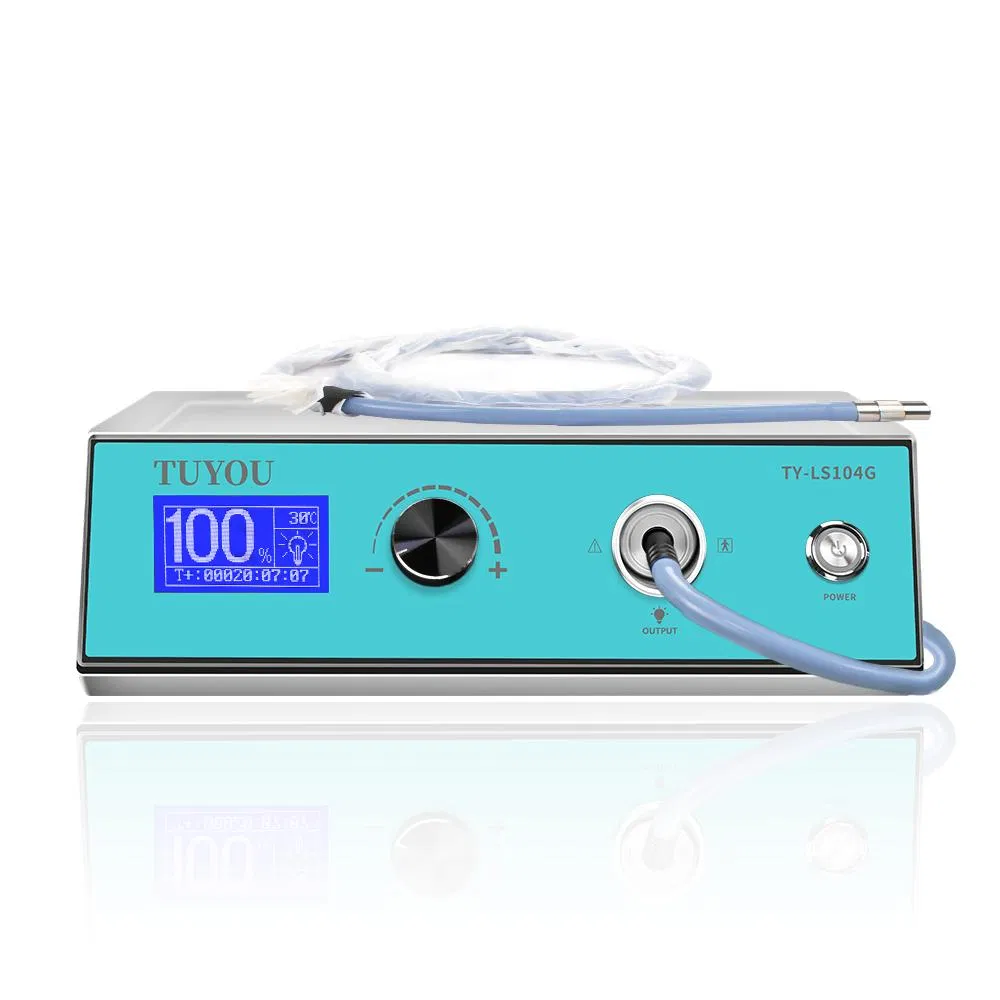

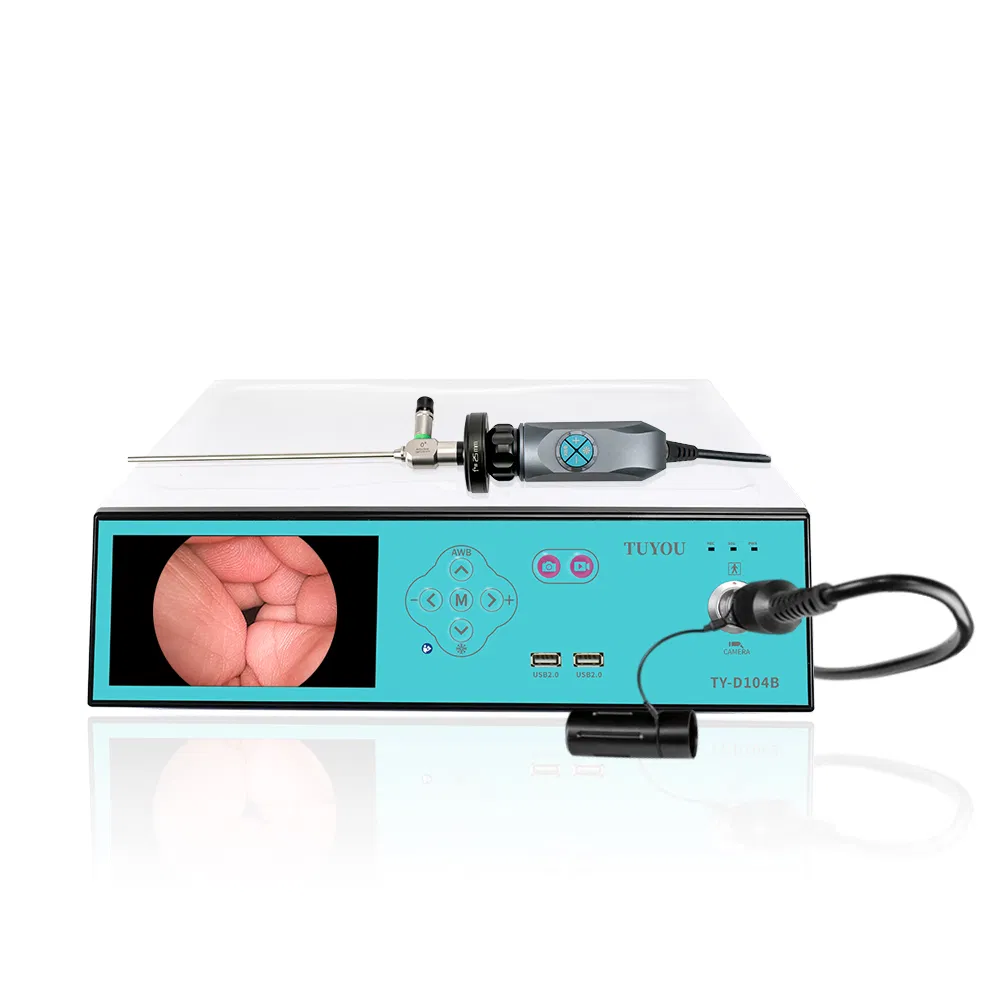

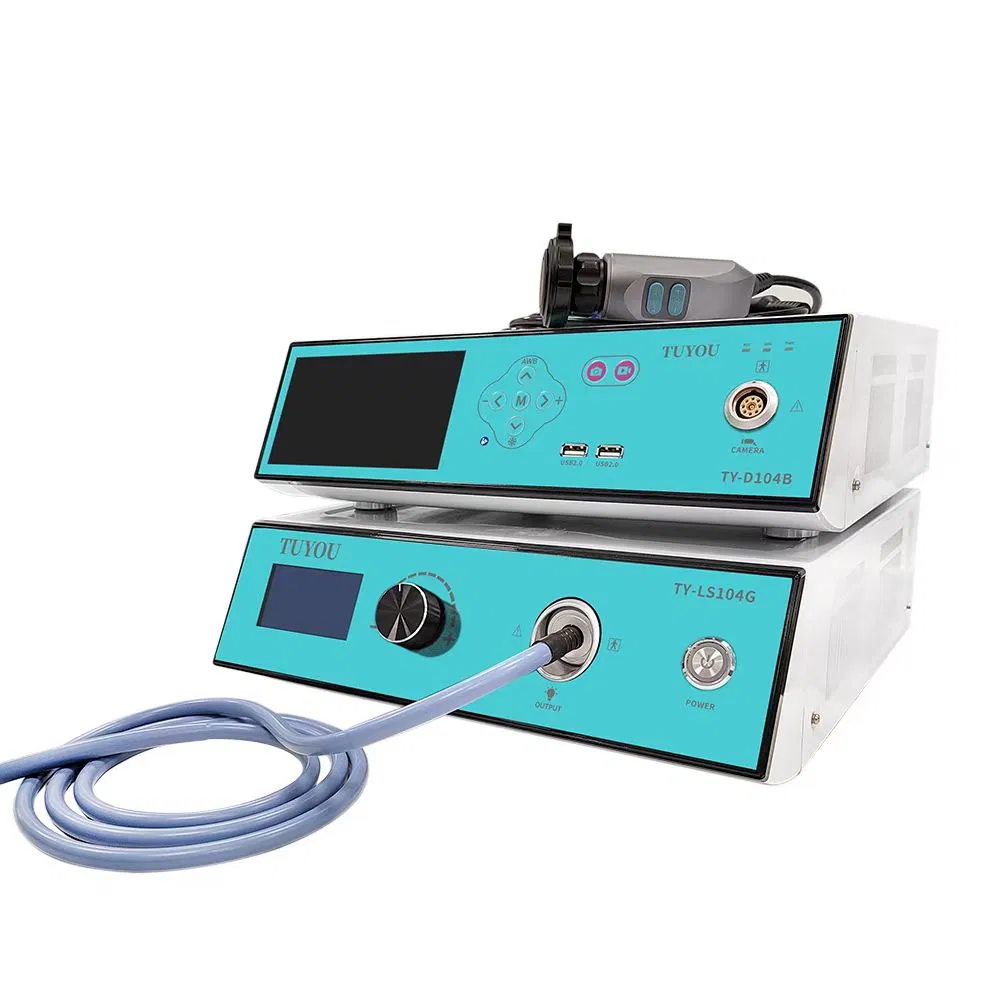

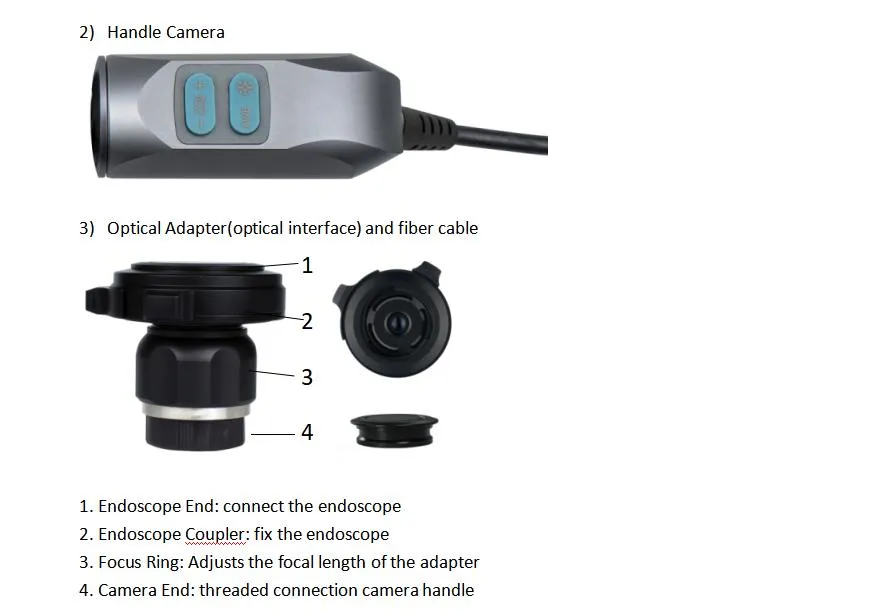

Product composition: Endoscope light source imaging system consists of camera control system, handle camera, optical adapter (optical interface) and light source.
The enterprise integrates R&D, production, sales and service of medical endoscope camera system products with more than 20 years of experience. We have completed SD, HD, 2K, 4K, fluorescence and other endoscope image systems.
