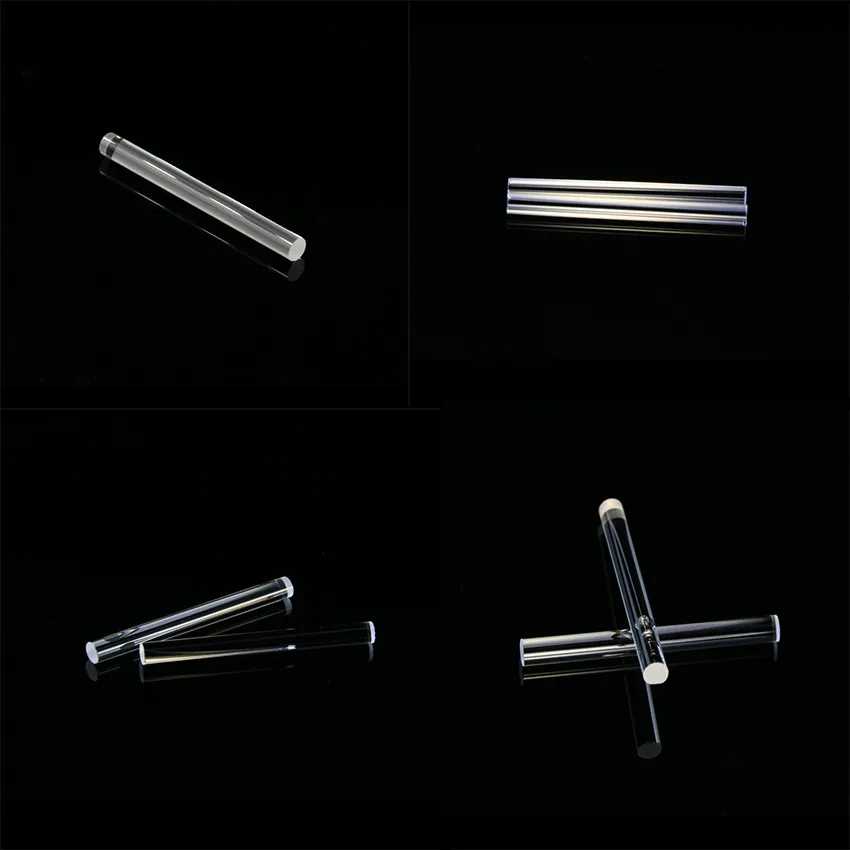

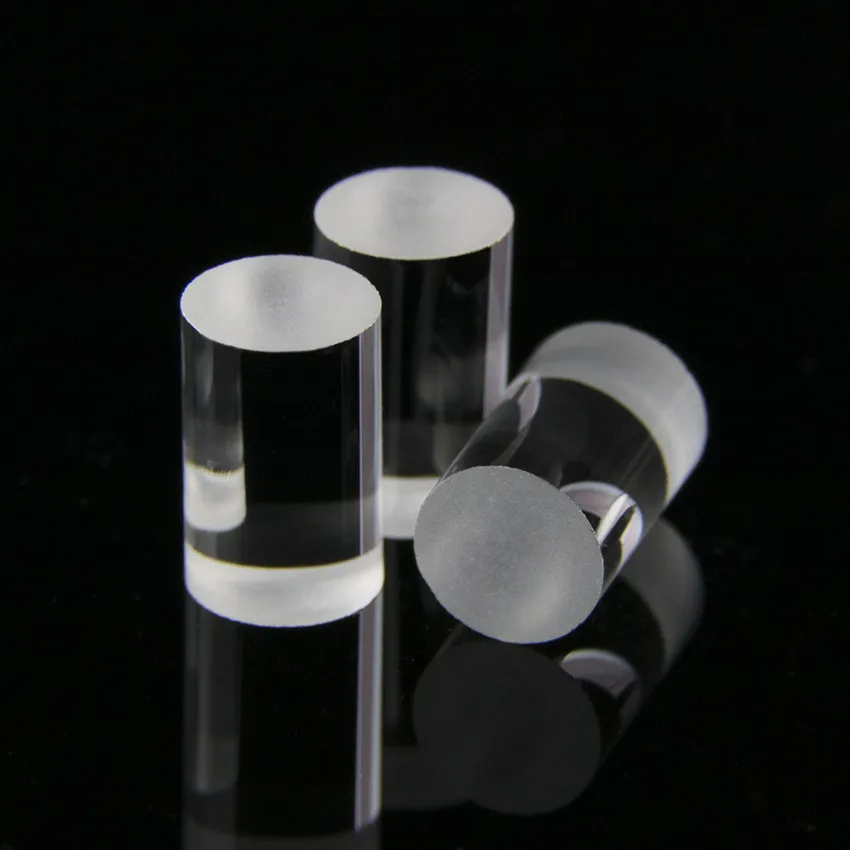

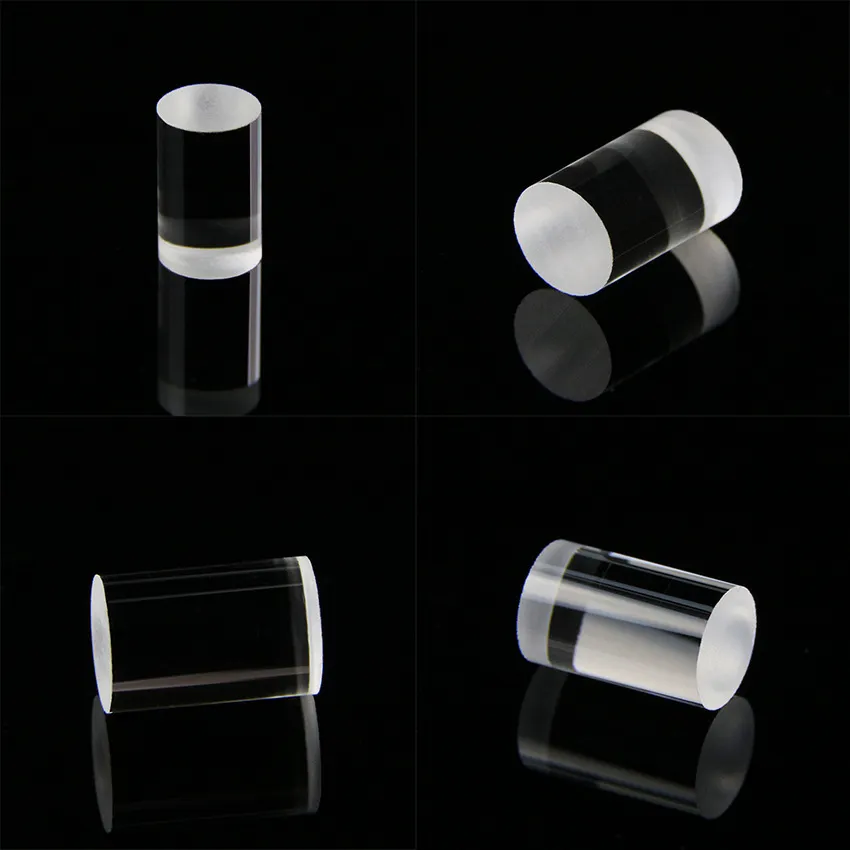

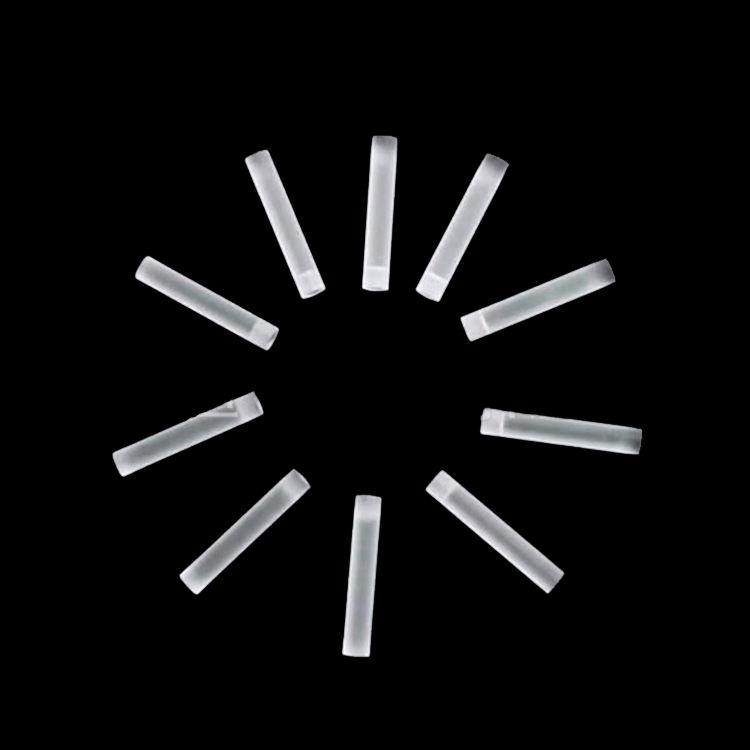

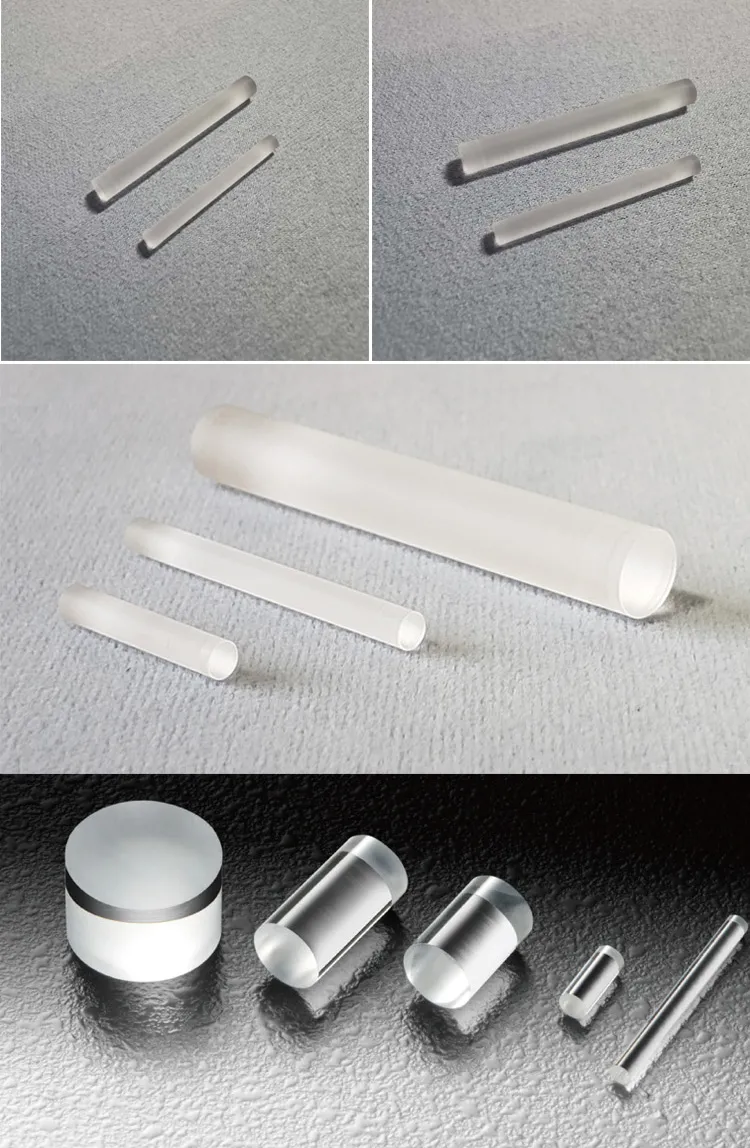

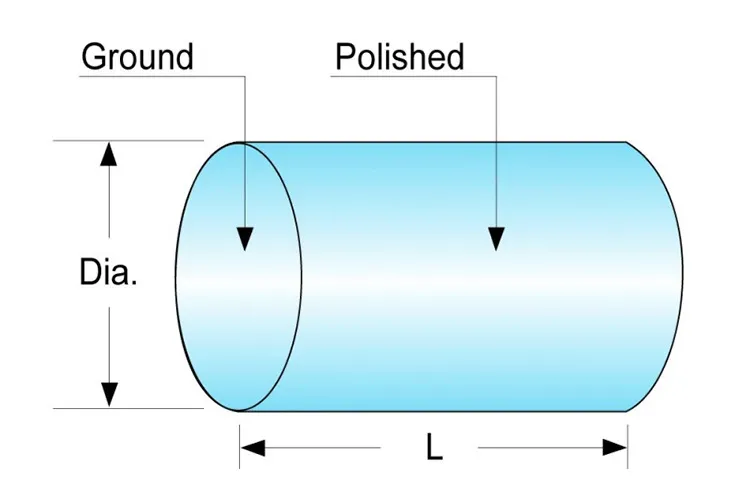

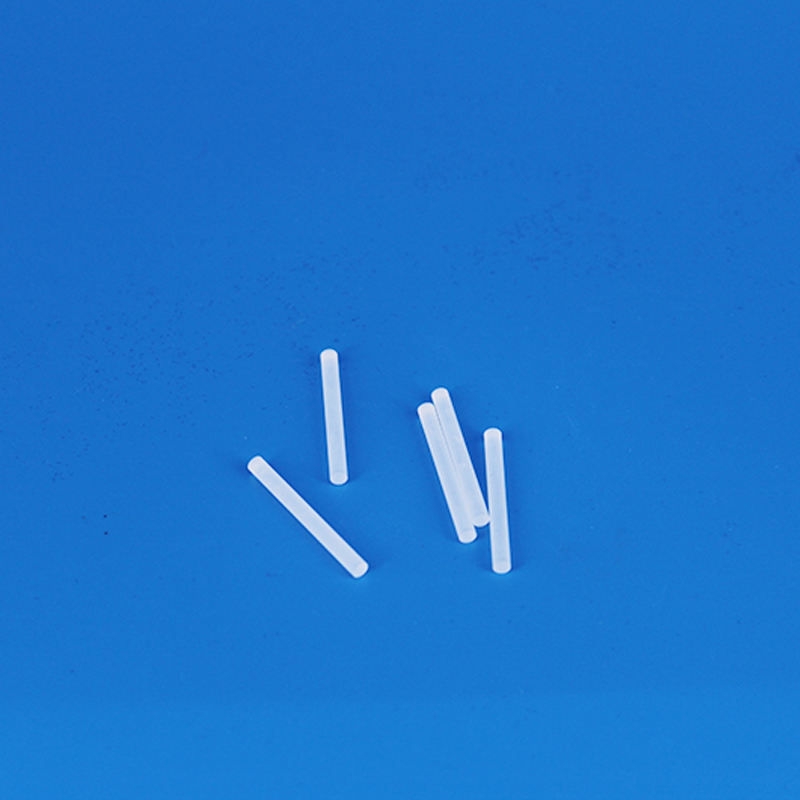

Clear Optical Lenses Glass Rod Lens/Cylindrical Lens/Optical Cylindrical Lens

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
AW548
Usage
Lighting, Medical, Optical, Photography
Transmittance
90%-95%
Shape
Cylindrical Shaped Lens
Certification
RoHS, ISO9001, CE
Focal Length Tolerance
< ± 1%
Thickness Tolerance
± 0.1
Eccentricity
3′
Designed Wavelength
632.8nm
Scratch/Dig
60/40

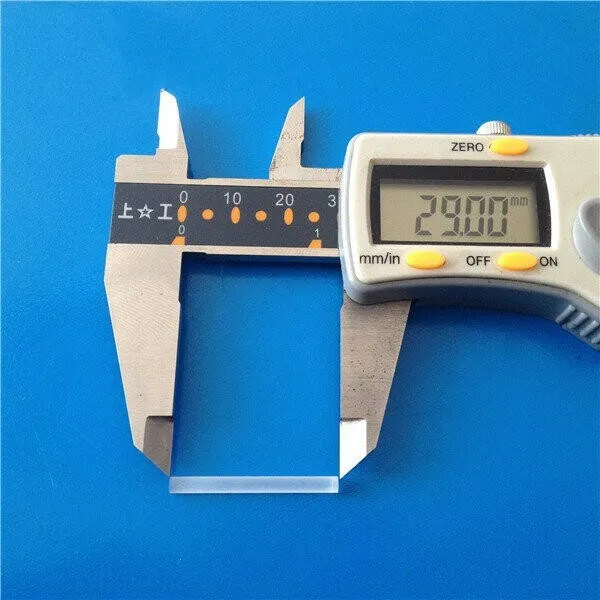

Diameter Tolerance
0/-0.1
Clear Aperture
>90%
Coating
Ar or Bbar
HS Code
9001909090
Capacity
200000PCS/Month
P

Product Description

Cylindrical lens is used to correct astigmatism in the optical system, and, in rangefinders, to produce astigmatism, stretching a point of light into a line. It is usually used in barcode scanners, objective systems and other optical systems.

Product Features

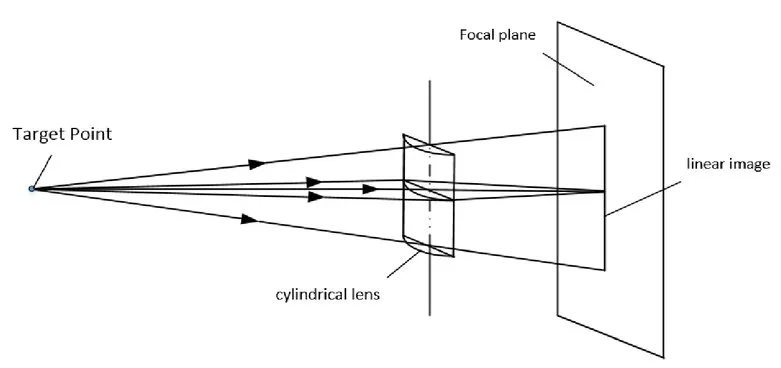

Lens Feature Chart
Key Applications

1. Correcting Astigmatism: One of the main applications of cylindrical lenses is in ophthalmology, specifically, to correct astigmatic vision. When a person presents astigmatic vision, it is usually the result of a corneal deformation. An astigmatic cornea will have different focal points at different axes. It is then possible to use a cylindrical lens to change the focal point of one of the axes to overlap the second one.

2. Laser Line Scanning: This is a technique that is used to capture the shape of a 3D object into a digital copy. It is particularly useful in manufacturing, prototyping, landscaping, and architecture. This scanning technique measures the deformation of a straight line created by a cylindrical lens when it is incident into a non-flat surface.

3. Laser Scanning Microscopy: They are usually used in combination with acousto-optic deflectors, where the focal point of a variable lens can change its position laterally without the use of movable parts. The cylindrical lens corrects the image and helps focus the light spot onto the correct plane.

Application Diagram
?

Frequently Asked Questions

Can I request free samples or place a sample order?
Yes, we accept sample orders and are willing to provide free samples to test and check quality. If the item is not in stock, a custom sample order can be placed.
What is the typical lead time for an order?
For customized orders or large quantities, production and shipping typically take around 10-30 working days.
Are OEM services available for custom designs?
Absolutely. You can provide your design papers or specifications to confirm details and proceed with OEM production.
Can you provide optical design solutions for commercial projects?
Yes, our professional experts with over 25 years of experience in optical design can supply the most suitable solutions for your specific project needs.
What shipping methods are available for international orders?
For small quantities or samples, we use express services like Fedex, UPS, DHL, or EMS. Large scale quantities can be shipped by sea, train, or air based on your requirements.
