Optic Components H-K9 Glass Multi Coating Specification OEM Optical Aspheric Lens

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

AW209

Usage

Lighting, Medical, Optical, Photography

Type

Convex Lens

Transmittance

90%-95%

Shape

Cylindrical Shaped Lens

Material

Optical Glass

Lenses Color

Colored

Certification

RoHS, ISO9001, CE

Focal Length Tolerance

< ± 1%

Thickness Tolerance

± 0.1

Eccentricity

3′

Designed Wavelength

632.8nm

Scratch/Dig

60/40

Diameter Tolerance

0/-0.1

Clear Aperture

>90%

Coating

Ar or Bbar

Production Capacity

200,000 PCS/Month

🔍

Product Description

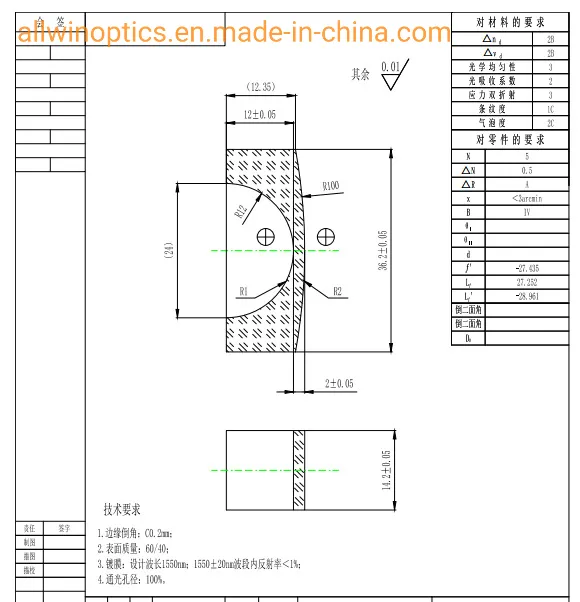

Customized Optical Solutions: We provide all kinds of customized optical lenses based on your drawings, sample products, or detailed requirements.

Size	Φ1.0~7mm	Φ8.0~20mm	Φ20.0~40mm	Φ40.0~60mm
PV	0.2um	0.3um	0.5um	<1um
Eccentricity	<=3um	<=5um	<=5um	<=8um
Thickness Tol.	±0.015mm	±0.020mm	±0.025mm	±0.050mm
Diameter Tol.	±0.015mm	±0.015mm	±0.015mm	±0.030mm

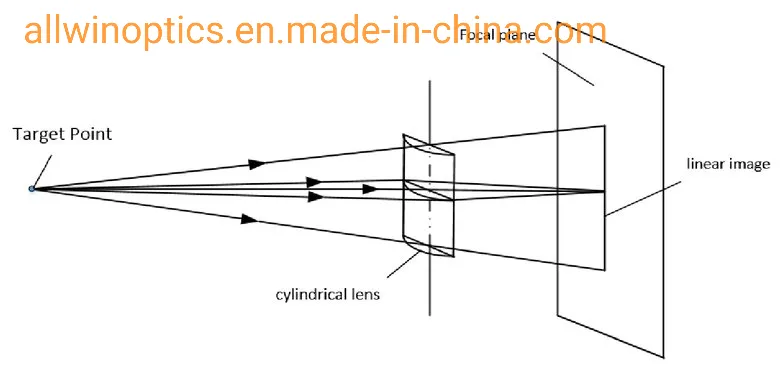

Cylindrical Lenses are used to correct astigmatism in optical systems and in rangefinders to produce astigmatism, stretching a point of light into a line. They are commonly utilized in barcode scanners, objective systems, and other precision optical devices.

⚙️

Key Features & Applications

Correcting Astigmatism

Widely used in ophthalmology to correct astigmatic vision resulting from corneal deformation by overlapping different focal points.

Laser Line Scanning

Captures the shape of 3D objects into digital copies. Useful in manufacturing, prototyping, landscaping, and architecture by measuring the deformation of a straight line incident on a non-flat surface.

Laser Scanning Microscopy

Used with acousto-optic deflectors to change focal point positions laterally. The cylindrical lens corrects the image and focuses the light spot onto the correct plane.

❓

Frequently Asked Questions

Q1: Can I request samples or place a sample order? A: Yes, we accept sample orders to test and check quality. If the item is in stock, free samples can be arranged.

Q2: What is the typical lead time for an order? A: For customized or large-scale orders, production and shipping typically take 10-30 working days.

Q3: Are OEM services available for custom designs? A: Absolutely. Please provide your design specifications to confirm technical details and production feasibility.

Q4: Can you provide optical design solutions for commercial projects? A: Yes, our experts have over 25 years of experience in optical design and can provide suitable solutions based on your project details.

Q5: What shipping methods do you offer? A: We offer express shipping (FedEx, UPS, DHL) for small quantities, and sea, train, or air freight for large-scale orders.

Q6: What materials are used for the lenses? A: We use high-quality optical glass such as CDGM, NHG, or specific materials based on customer requirements.
