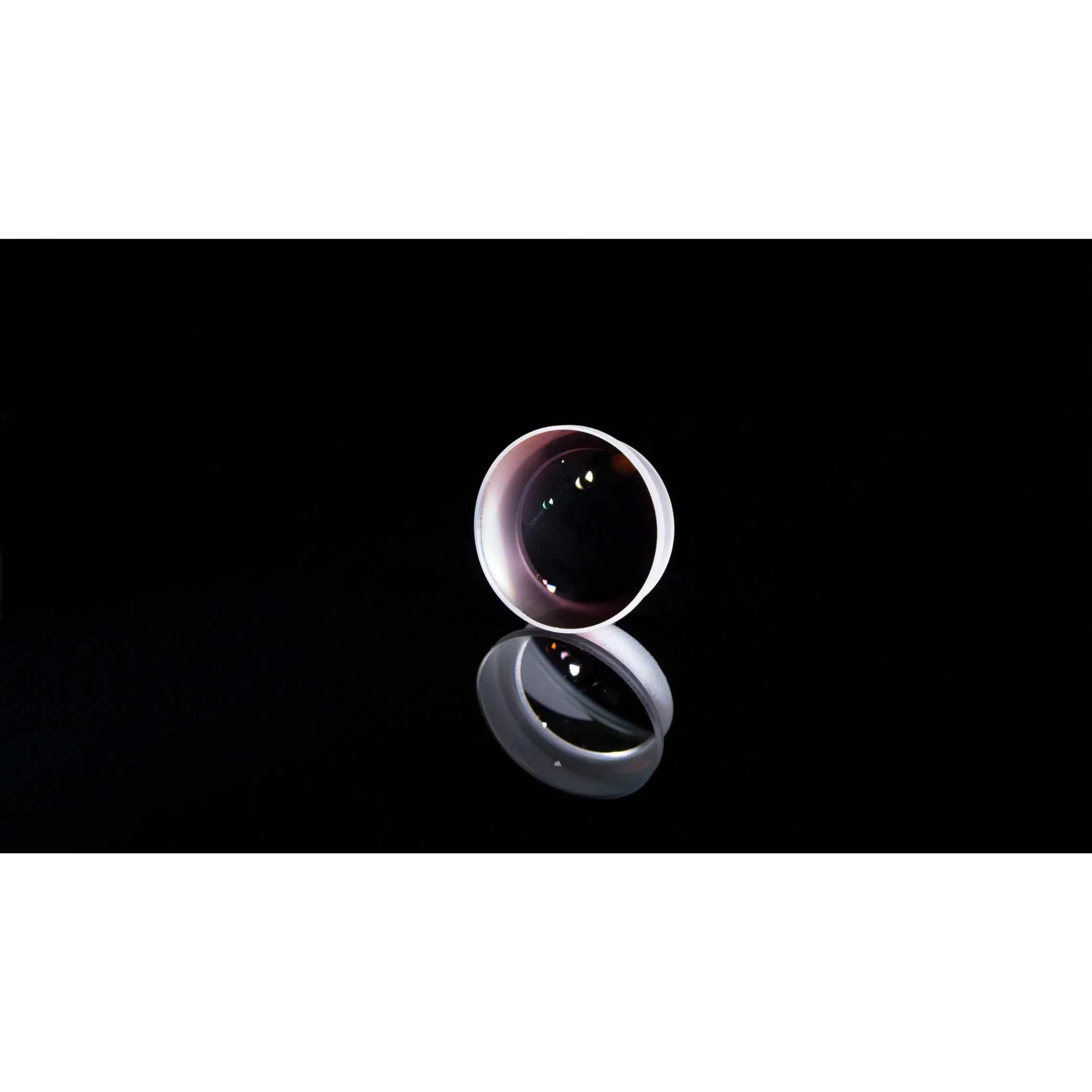

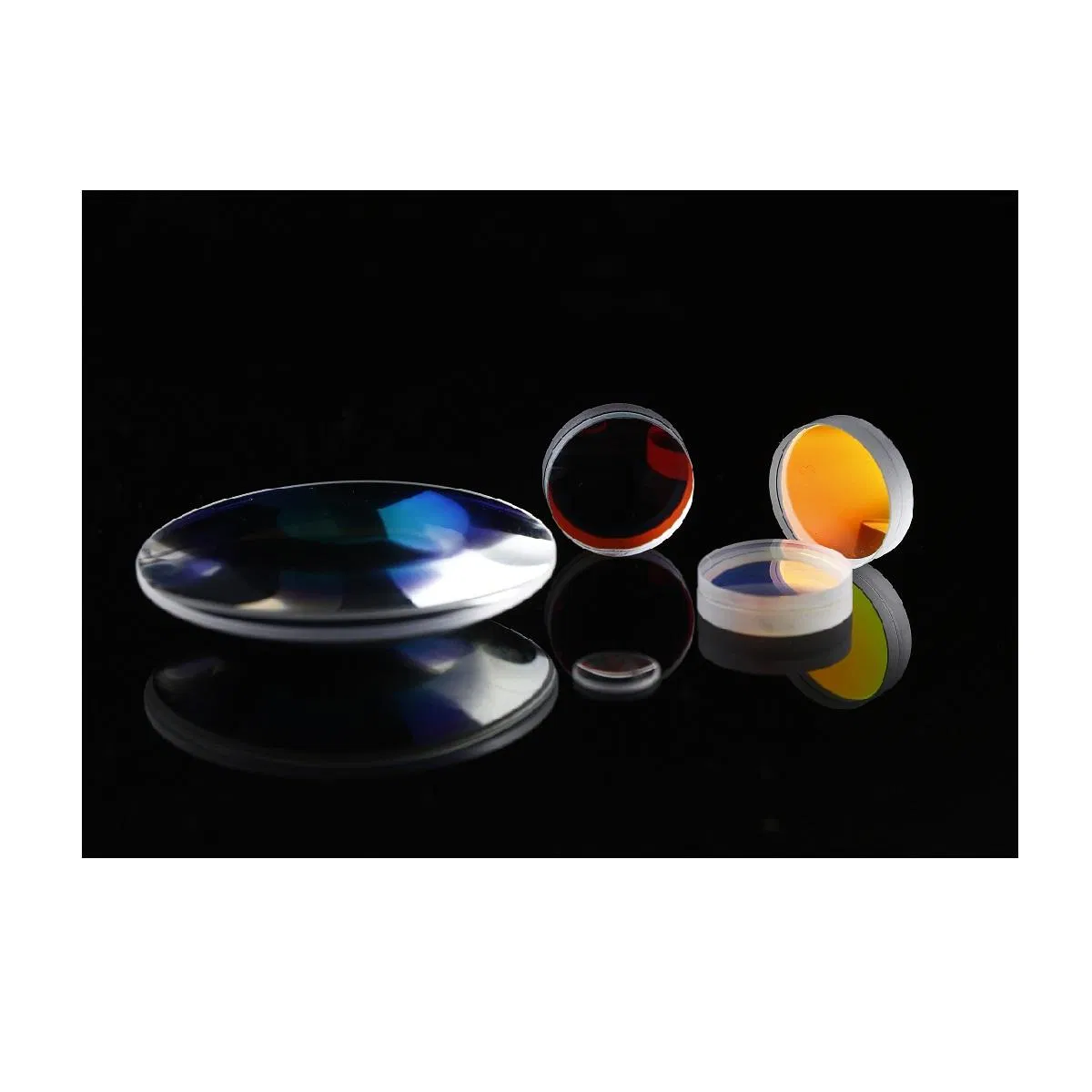

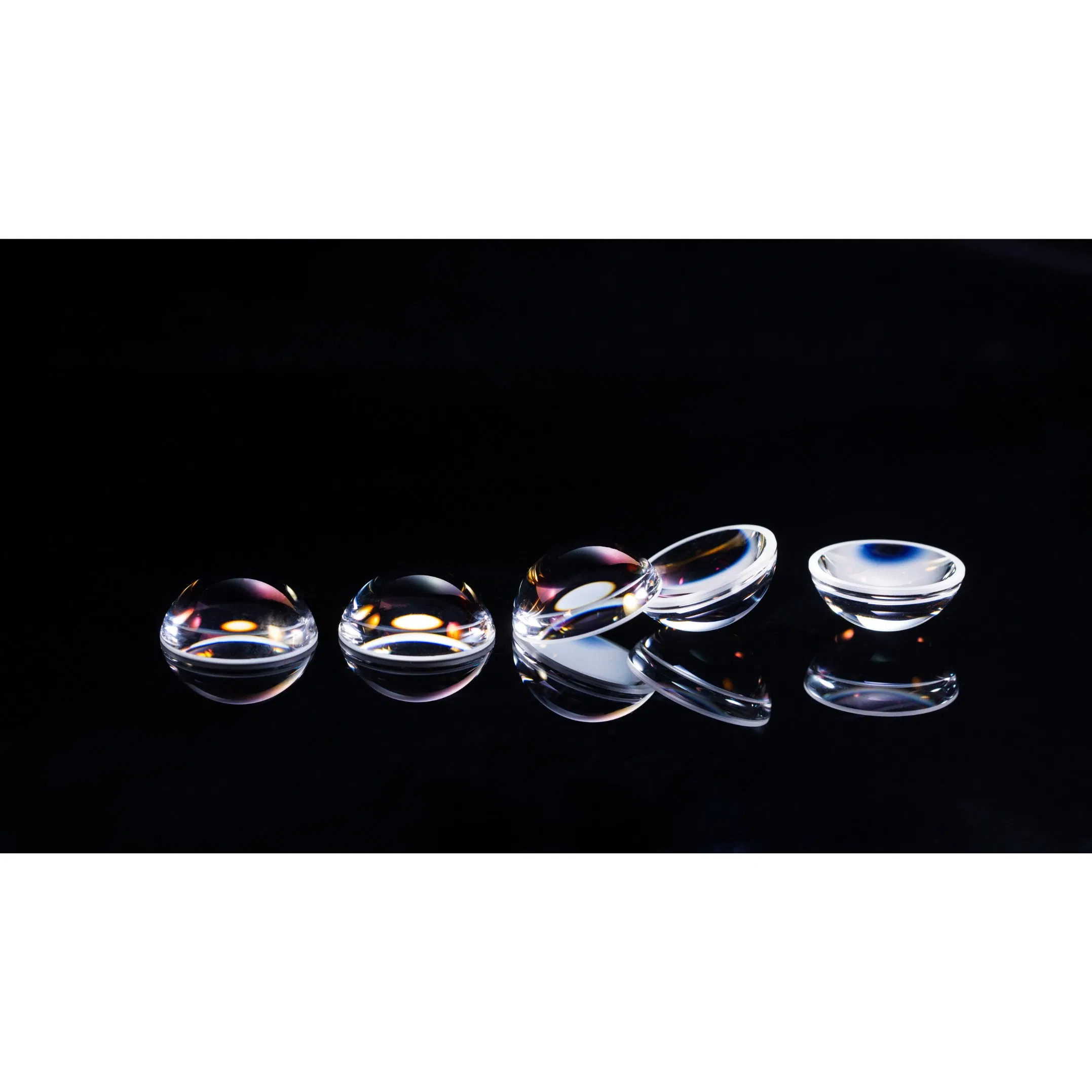

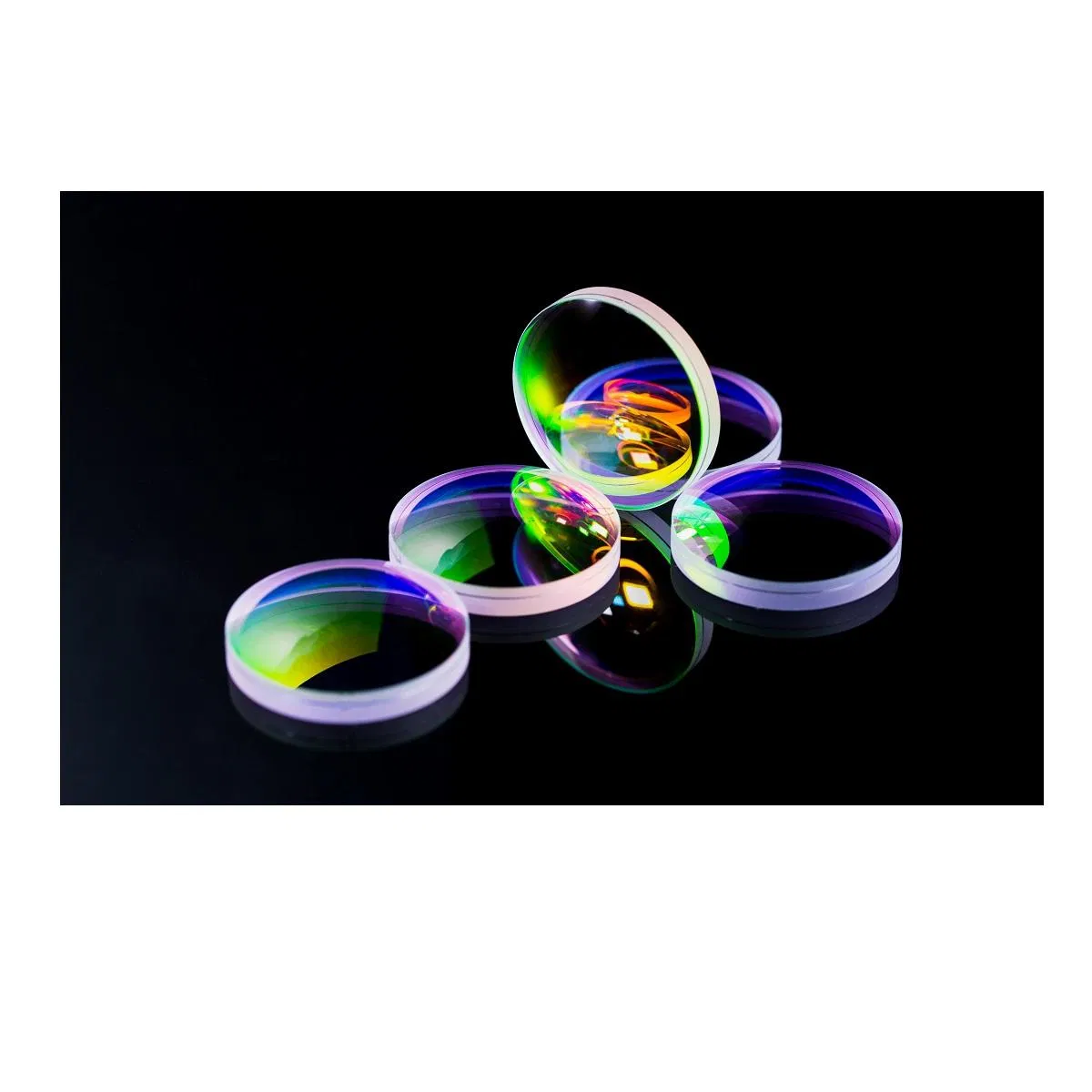

OEM Hot Sales Factory Transparent Infrared Aspheric Focus Lens for Fiber Laser 1030-1090nm

1 / 5

OEM Hot Sales Factory Transparent Infrared Aspheric Focus Lens for Fiber Laser 1030-1090nm

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

AW529

Usage

Lighting, Medical, Optical, Photography

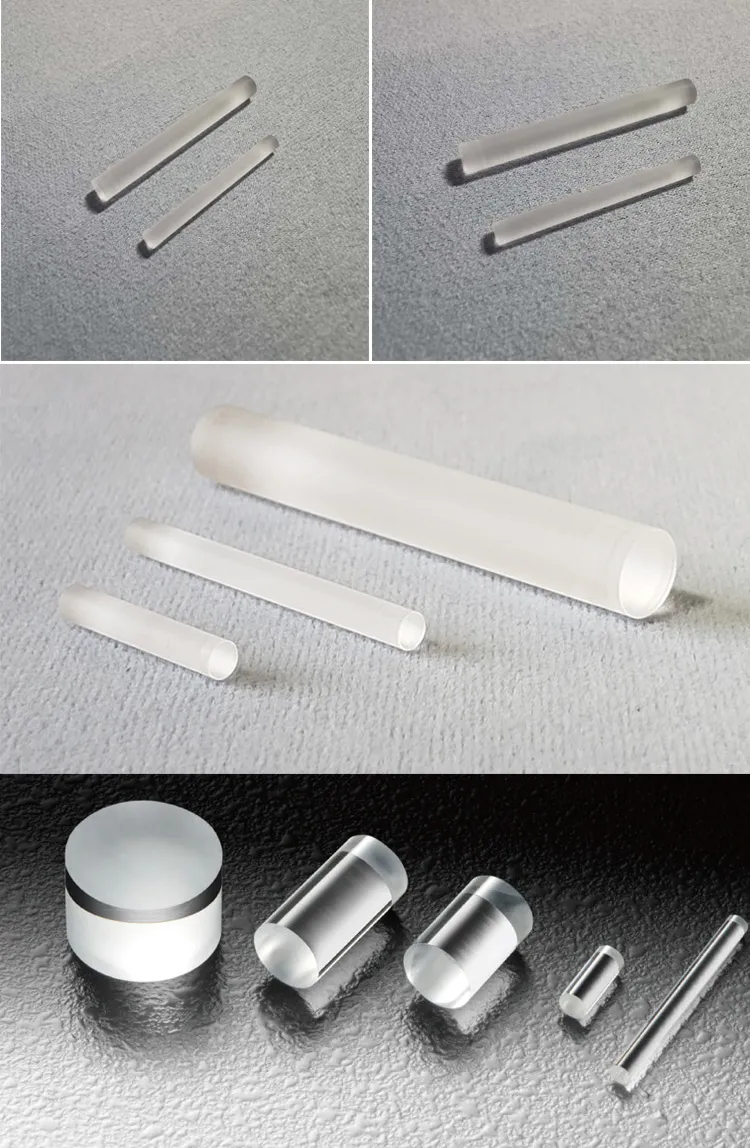

Type

Customize Rod Lens

Transmittance

90%-95%

Shape

Cylindrical Shaped Lens

Material

Optical Glass

Certification

RoHS, ISO9001, CE

Coating

UV, Ar or Bbar

Focal Length Tolerance

< ± 1%

Thickness Tolerance

± 0.1mm

Scratch/Dig

60/40

Production Capacity

200,000 PCS/Month

Customized Optical Solutions: We provide all kinds of customized optical lenses according to your drawings, samples, or detailed requirements.

Technical Parameters

Size	Φ1.0~7mm	Φ8.0~20mm	Φ20.0~40mm	Φ40.0~60mm
PV	0.2um	0.3um	0.5um	<1um
Eccentricity	<=3um	<=5um	<=5um	<=8um
Center Thickness Tolerance	±0.015mm	±0.020mm	±0.025mm	±0.050mm
Diameter Tolerance	±0.015mm	±0.015mm	±0.015mm	±0.030mm
Surface Quality	40/20
Material	CDGM, NHG, Customer Requirements

Product Features

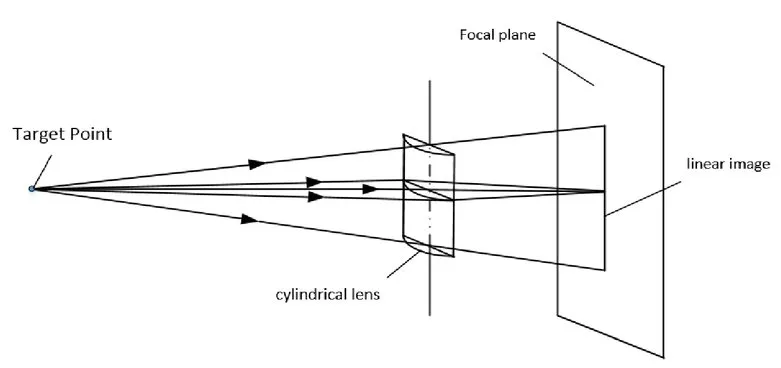

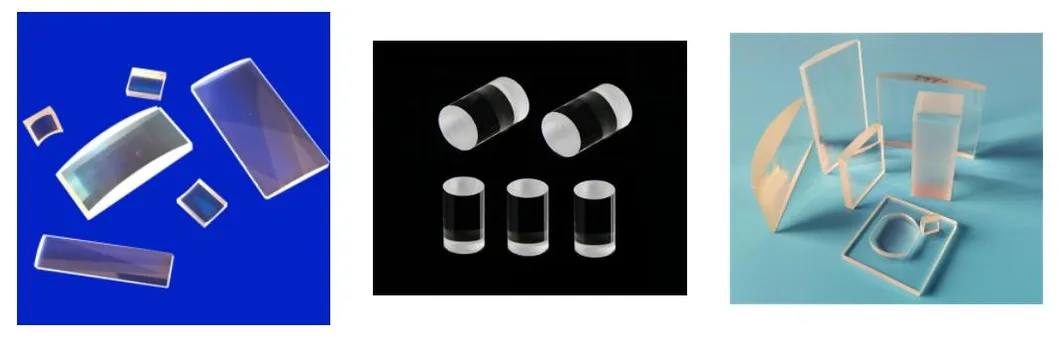

Cylindrical Lenses are used to correct astigmatism in optical systems and, in rangefinders, to produce astigmatism by stretching a point of light into a line. They are widely utilized in barcode scanners, objective systems, and other precision optical devices.

Key Applications

👁️1. Correcting Astigmatism

Mainly used in ophthalmology to correct astigmatic vision resulting from corneal deformation. The lens aligns different focal points at various axes to overlap correctly.

🔍2. Laser Line Scanning

Captures the shape of 3D objects for digital copies. Essential in manufacturing, prototyping, landscaping, and architecture by measuring the deformation of a straight laser line.

🔬3. Laser Scanning Microscopy

Used with acousto-optic deflectors to focus light spots onto the correct plane. Helps in lateral positioning without moving parts.

Frequently Asked Questions

Can I request free samples or place a sample order?

Yes, we accept sample orders to test and check quality. If the specific item is in stock, free samples may be available; otherwise, a sample order can be placed.

What is the expected delivery time for an order?

For customized orders or large quantities, production and shipping typically take approximately 10-30 working days.

Are OEM services available for custom designs?

Absolutely. Please provide your design specifications or drawings through our platform to confirm further technical details.

Do you provide professional optical design solutions?

Yes, our team includes experts with over 25 years of experience in optical design who can supply the most suitable solutions for your commercial projects.

What shipping methods are supported?

Small quantities and samples are shipped via express (FedEx, UPS, DHL, EMS). Large orders can be shipped by sea, train, or air based on your requirements.

What is your monthly production capacity for these lenses?

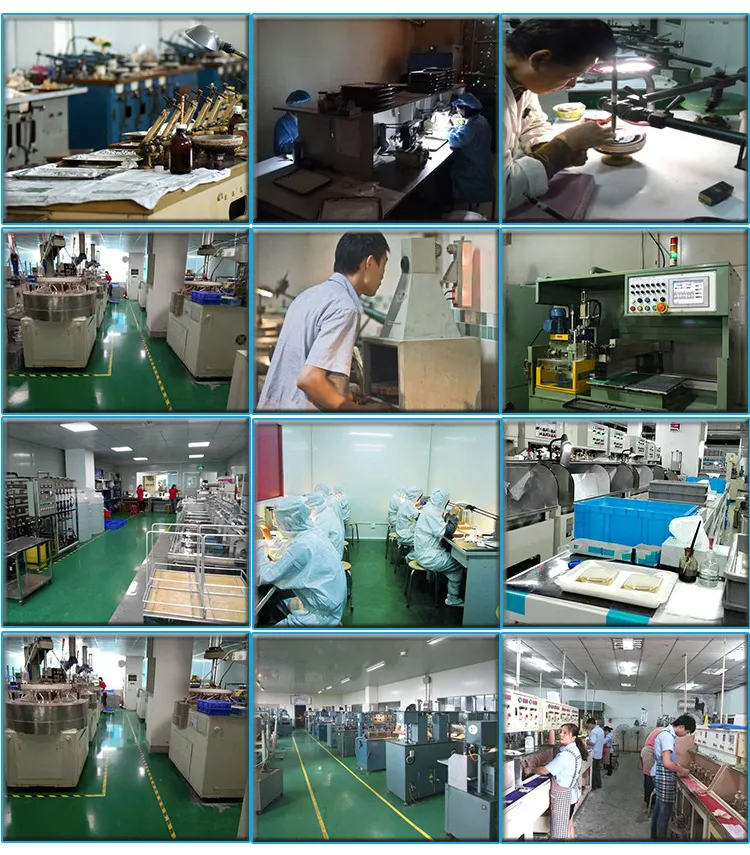

We have a robust manufacturing capability of up to 200,000 pieces per month to support large-scale industrial needs.
