Build-in Light Source Integrated Endoscope Camera System
Build-in Light Source Integrated Endoscope Camera System
Build-in Light Source Integrated Endoscope Camera System
Build-in Light Source Integrated Endoscope Camera System
1 / 4
Build-in Light Source Integrated Endoscope Camera System
Build-in Light Source Integrated Endoscope Camera System
Build-in Light Source Integrated Endoscope Camera System
Build-in Light Source Integrated Endoscope Camera System

Build-in Light Source Integrated Endoscope Camera System

Customized: Customized
Certification: CE, ISO13485
Scale: Medium
Send Inquiry

Product Description

INTEGRATED FULL HD 1080P ENDOSCOPY CAMERA SYSTEM

Basic Information

Model NO.
NCM-CP15
Camera Sensor
1/1.8'' Sony Signal CMOS
LED Light Source
80W
Monitor
15.6 Inches
Resolution
1080*1920p
Frame Rate
60fps

Applications

Laparoscopy
Arthroscopy
E.N.T.
Fiberscopy
Veterinary
Uroscopy
Spine
Laryngoscopy
Cystoscopy
Dermatoscopy

Technical Specifications

Category Details
SYSTEM OVERVIEW
ModelNCM-CP15
Monitor Size15.6 inch Medical Class
Video Output1920X1080P 60fps (16:9)
Effective Pixels≥ 2 Mega Pixels
Image SettingsAWB, Freeze, Zoom, Brightness, Color adjustment
LIGHT SYSTEM
LED LampAmerican Luminus (80 Watt)
Illumination2,000,000 Lux
Color Temp5700-6500K (CRI >90)
Lamp Life60,000 hours
CAMERA HEAD
SterilizationAutoclave and Waterproof IPX7
Weight / Dimension200g / 38x45x130mm
Control ButtonsAWB, Freeze, Brightness +/-
PROCESSOR UNIT
Output PortsHDMI + DVI + SDI + CVBS + USB
RecordingMP4 format via USB device

Product Features

  • Customized Control: Key buttons on the camera head can be customized per user's preference.
  • Integrated Recording: Capture pictures and record video with direct playback on the camera.
  • Smart Connectivity: Supporting video display and mouse control via USB.
  • Advanced Comparison: Four states display mode for convenient lesion status comparison.
  • OEM/ODM Ready: Flexible customization for appearance, functions, ports, and keypad positions.

Product Gallery

Integrated Endoscope Camera System 1
Integrated Endoscope Camera System 2

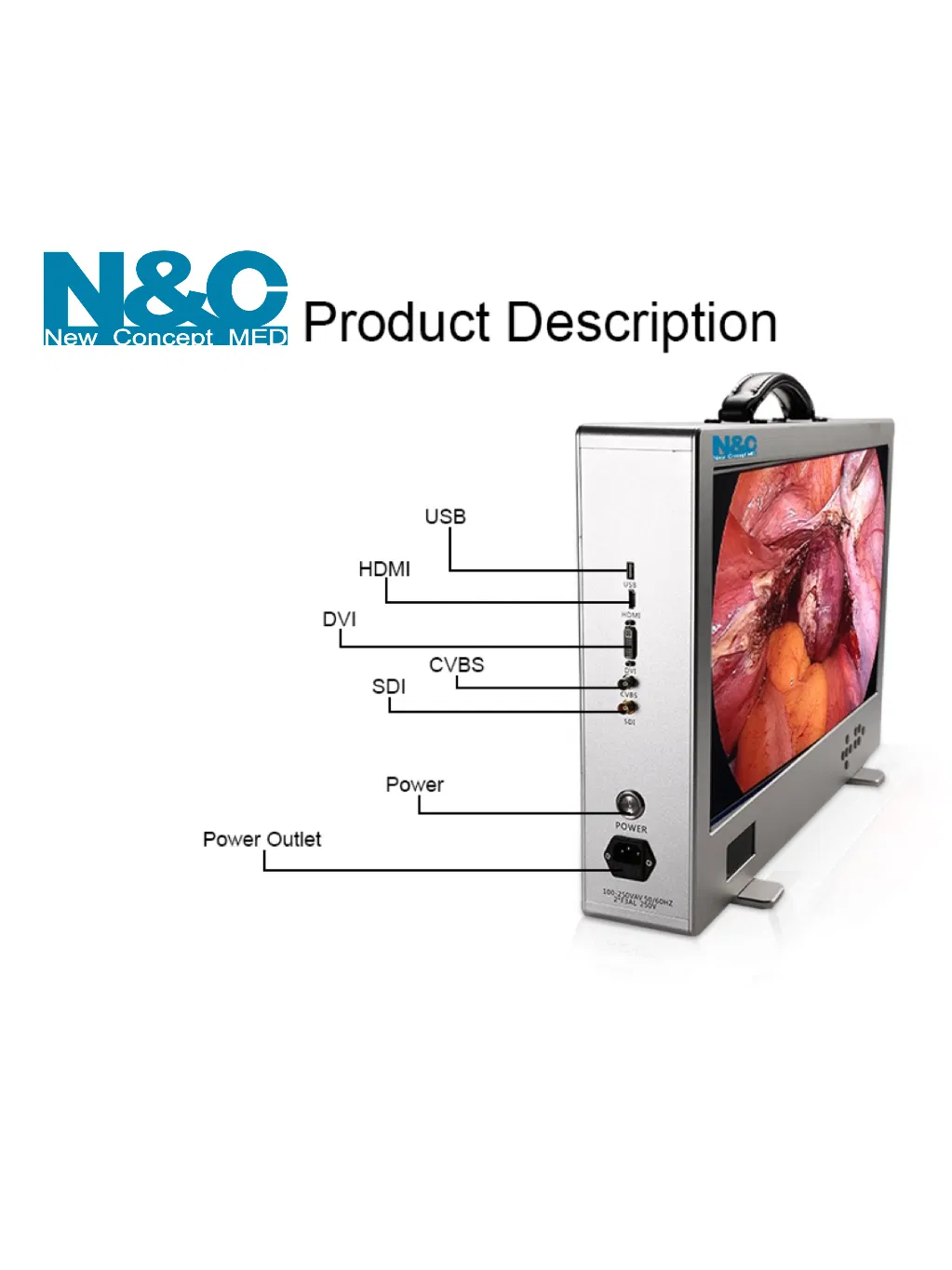

Integrated Endoscope Camera System 3

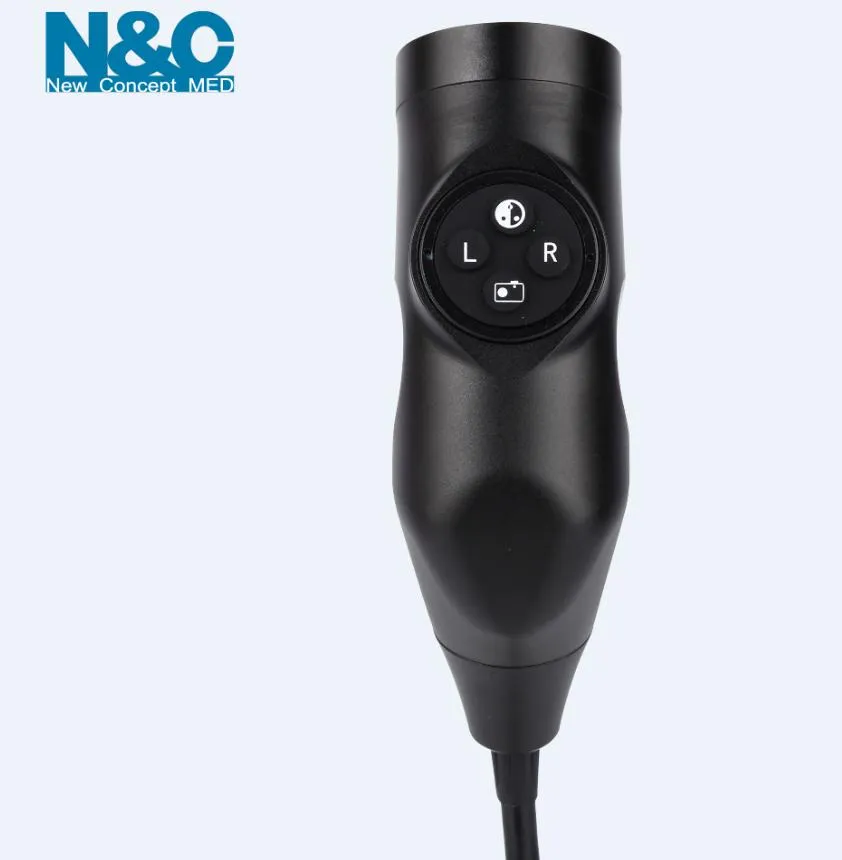

Integrated Endoscope Camera System 4
Frequently Asked Questions
Is the camera head waterproof for sterilization?
Yes, the camera head is IPX7 waterproof and supports autoclave sterilization processes.
What is the resolution and frame rate of this system?
The system provides Full HD 1080P resolution (1920x1080) at a smooth frame rate of 60fps.
Can I record surgeries directly onto a storage device?
Yes, the system supports recording in MP4 format directly to a USB device connected to the processor.
What kind of light source is integrated?
It features a high-intensity 80W American Luminus LED lamp providing up to 2,000,000 Lux with a 60,000-hour lifespan.
Which medical departments can use this endoscope system?
This versatile system is designed for Laparoscopy, Arthroscopy, ENT, Cystoscopy, Veterinary procedures, and more.
Does the monitor meet medical standards?
Yes, the integrated 15.6-inch screen is a Medical Class display with a 178° full viewing angle.
