Basic Specifications
Model NO.IN-LSD101
CertificationCE

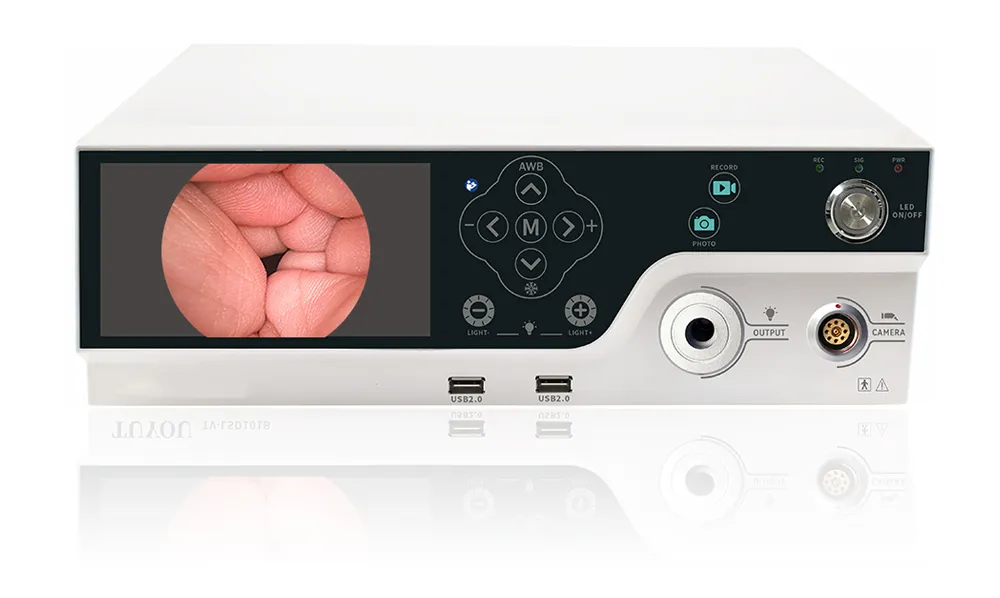

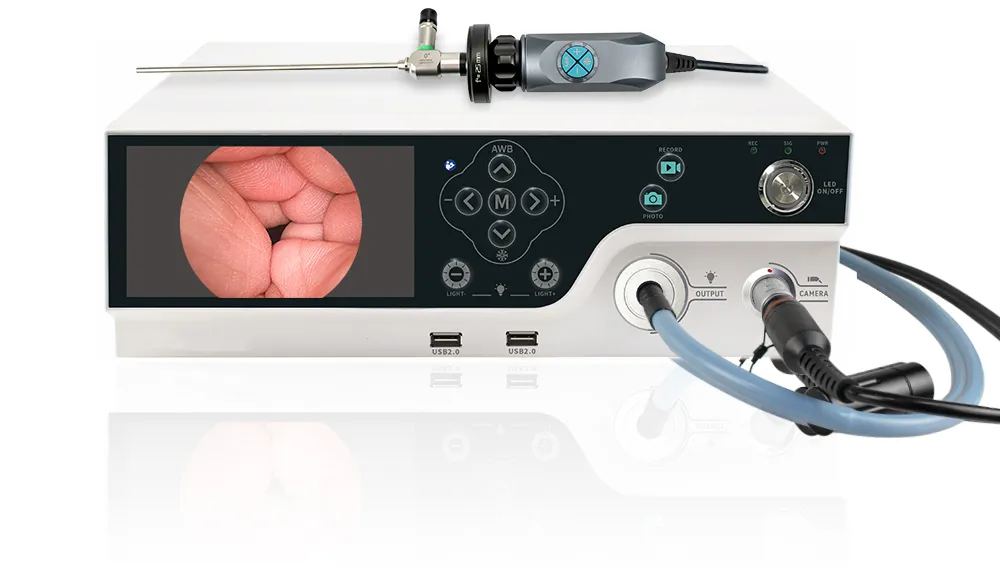

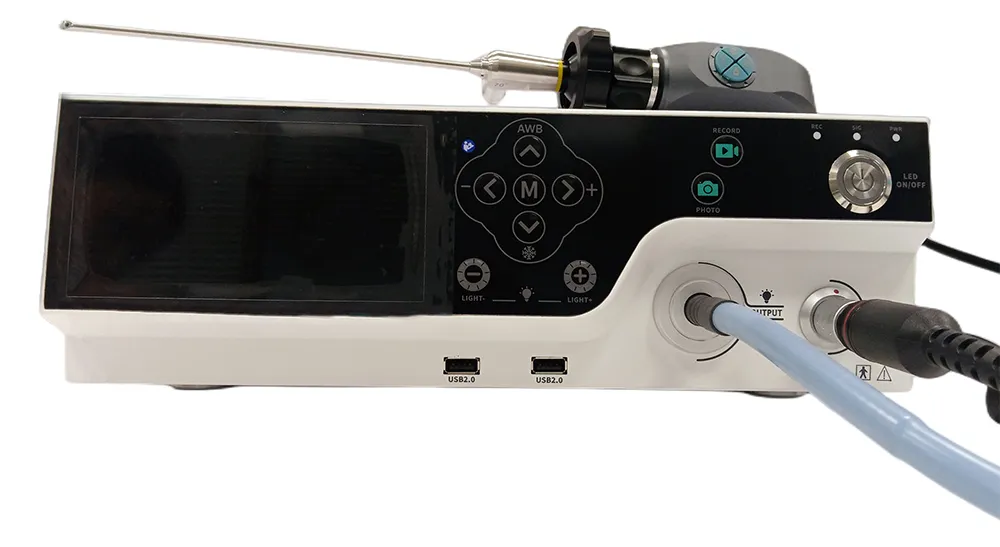

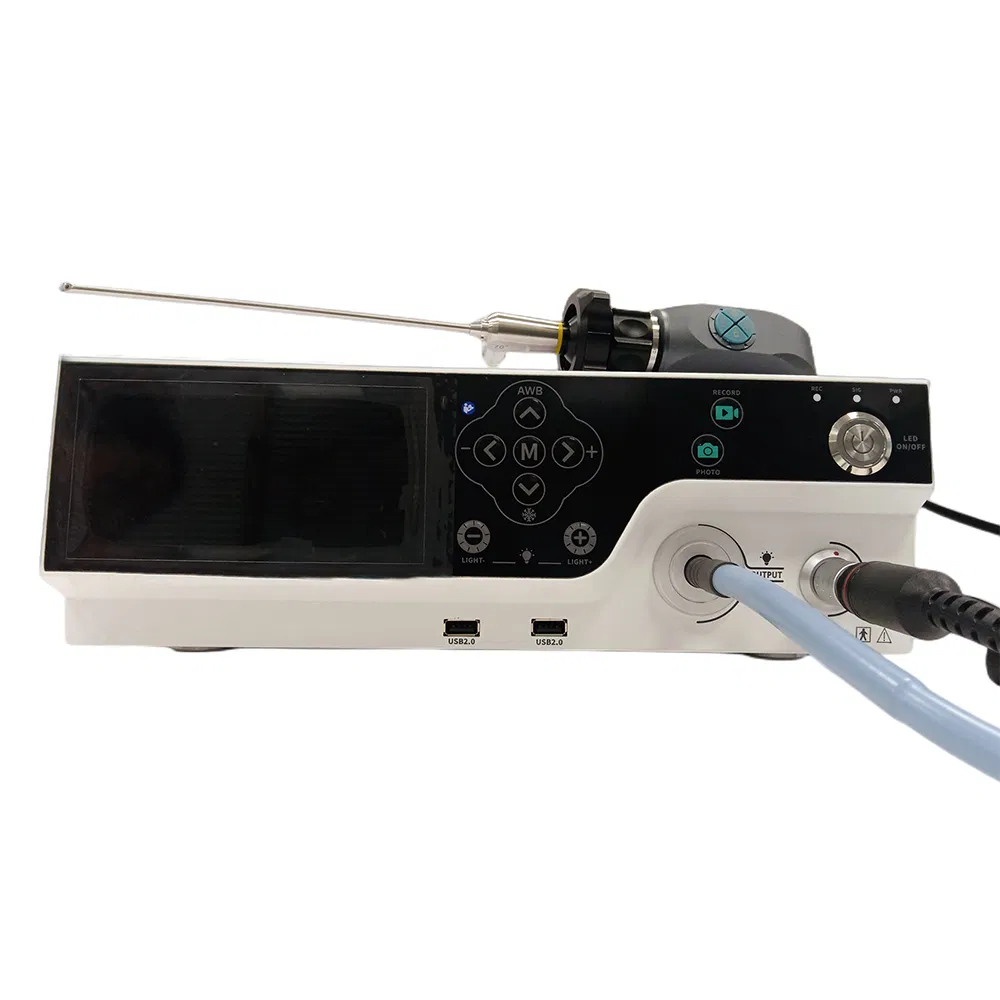

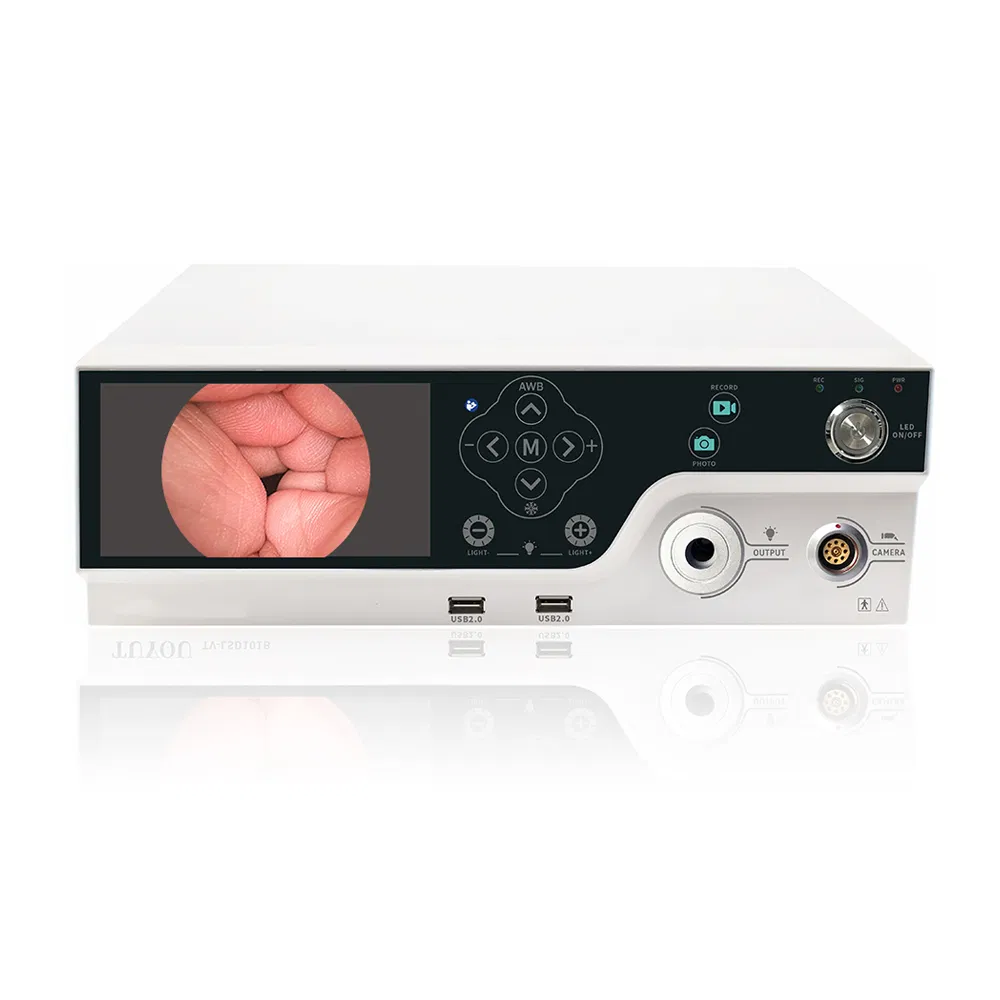

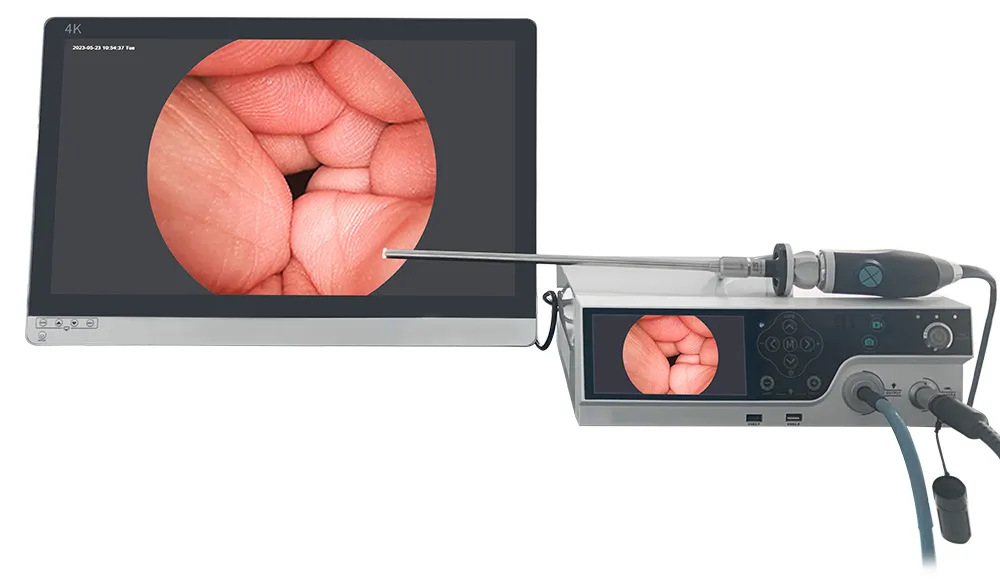

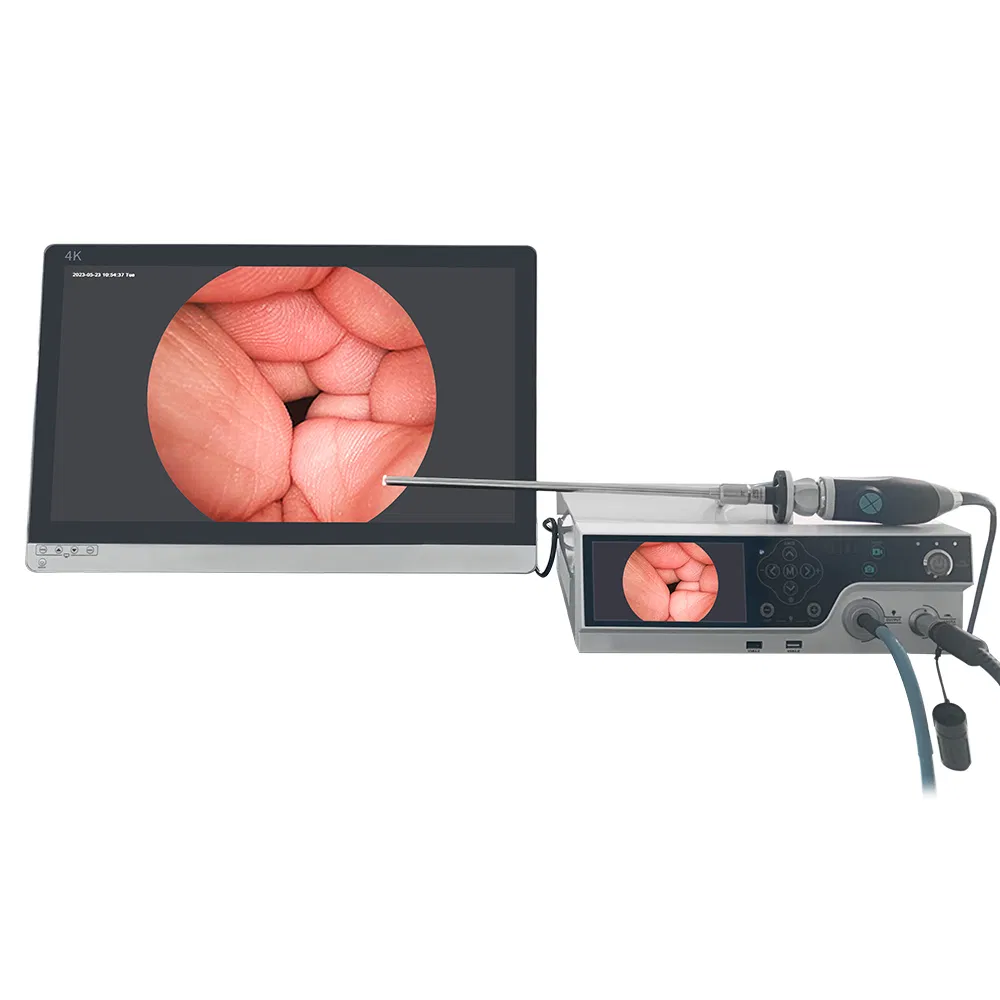

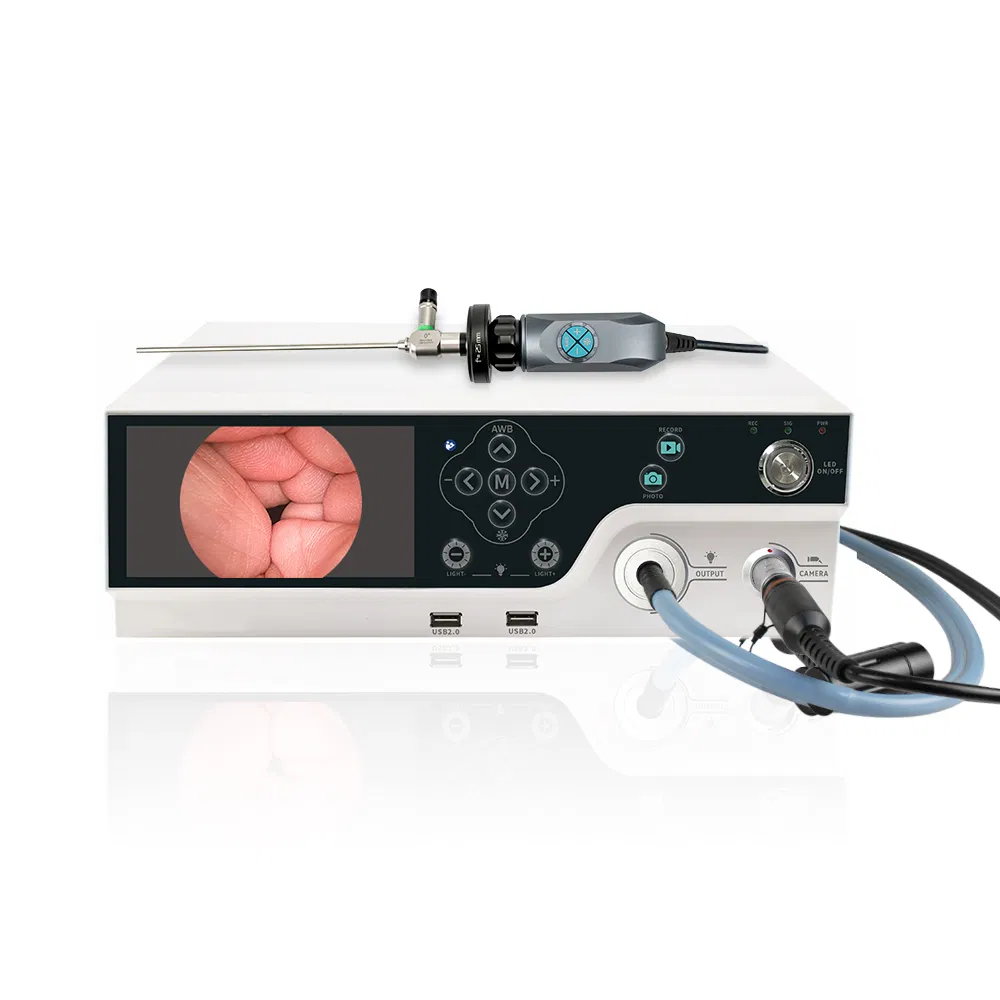

Product NameMedical endoscopy camera system
ApplicationLaparoscopy/gynecology/Urology/ENT surgery etc.
Image SensorSONY CMOS
Output InterfaceHDMI/SDI/CVBS
Effective Pixels3864(H)* 2192(V) Approx. 8.46M Pixels
Product SizeL336*W330*H116mm
Net Weight4.3KG
Frequently Asked Questions
What surgical applications is this system suitable for?
The system is highly versatile and designed for use in Laparoscopy, Gynecology, Urology, ENT surgery, and other endoscopic procedures.
Does the system support external monitors?
Yes, it features various output interfaces including HDMI, SDI, and CVBS, allowing it to connect to high-definition external medical monitors.
How does the image storage work?
The device has built-in USB ports supporting USB 2.0 and 3.0 U-disks (up to 32GB) for direct capture of high-definition photos and video recording.
What are the advantages of the LED light source?
The 60W LED light source provides a stable color temperature (4500-6500K) and an exceptionally long service life of up to 60,000 hours, significantly reducing maintenance costs.
Can I customize the image settings for different types of surgery?
Yes, the system includes dedicated lens modes for ENT, Abdominal, Bladder, Uterine, Joint, and Foramen procedures, plus a custom mode for personalized settings.
Is there a digital zoom feature?
Yes, the system supports 1-8X digital zoom, which can be easily controlled via the shortcut keys on the control unit.
