Product Description

Basic Information

Model NO.

DR750A

Scale

Large

Ms Range

1ms~6300 Ms

Flat Panel Detector

Venu1717X (Wired)

Kv Range

40kv-150kv

Control Mode

Manual Control

Ma Range

10mA-630mA

Output Power

50kw

Input Voltage

220VAC, ±10%, 50Hz

Workstation

DELL

Digital Network

Support Dicom 3.0 and Pacs Network

Origin

China

HS Code

9022140090

RD-750A Digital X-ray Radiography System (DR)

Key Features

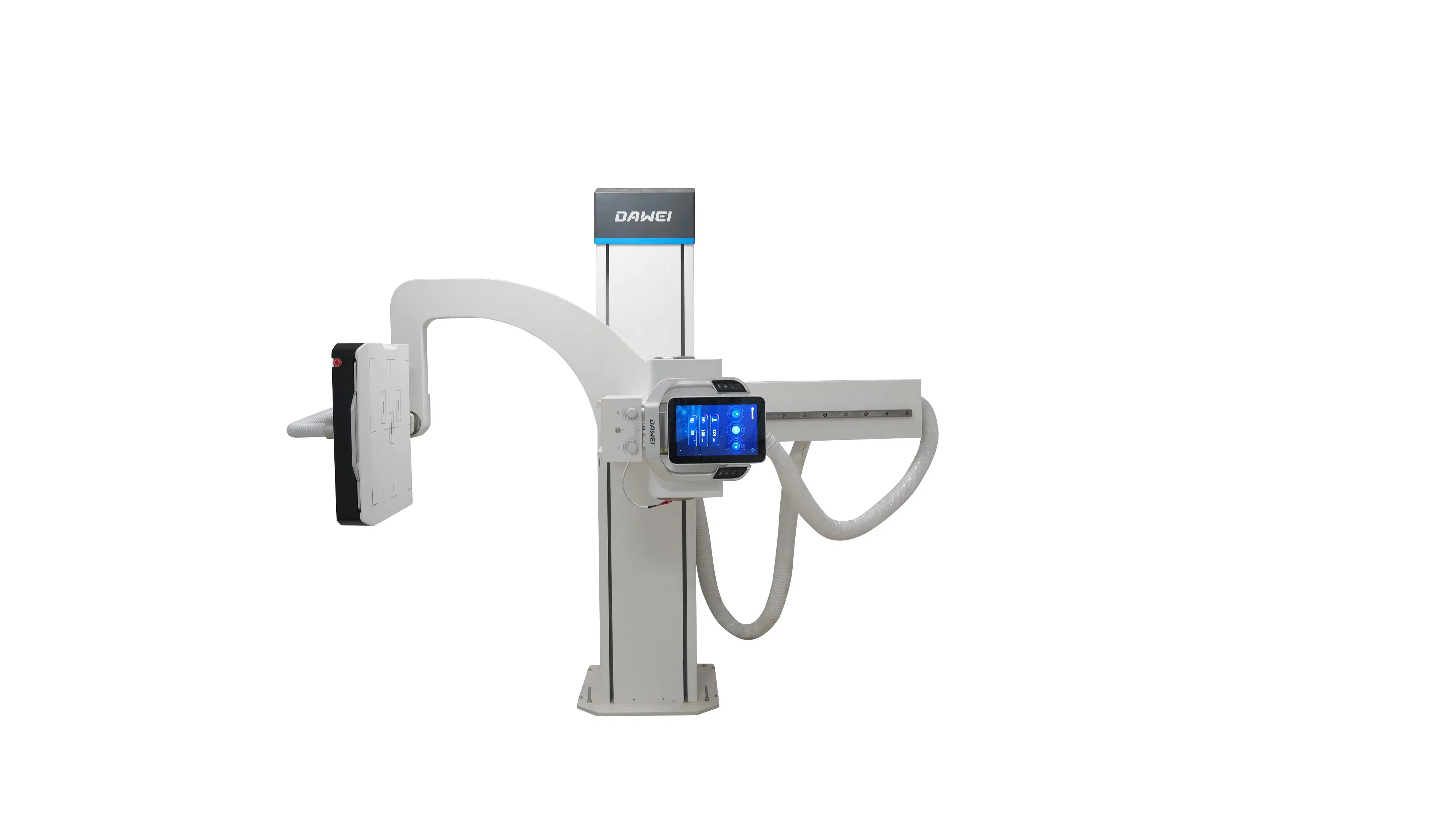

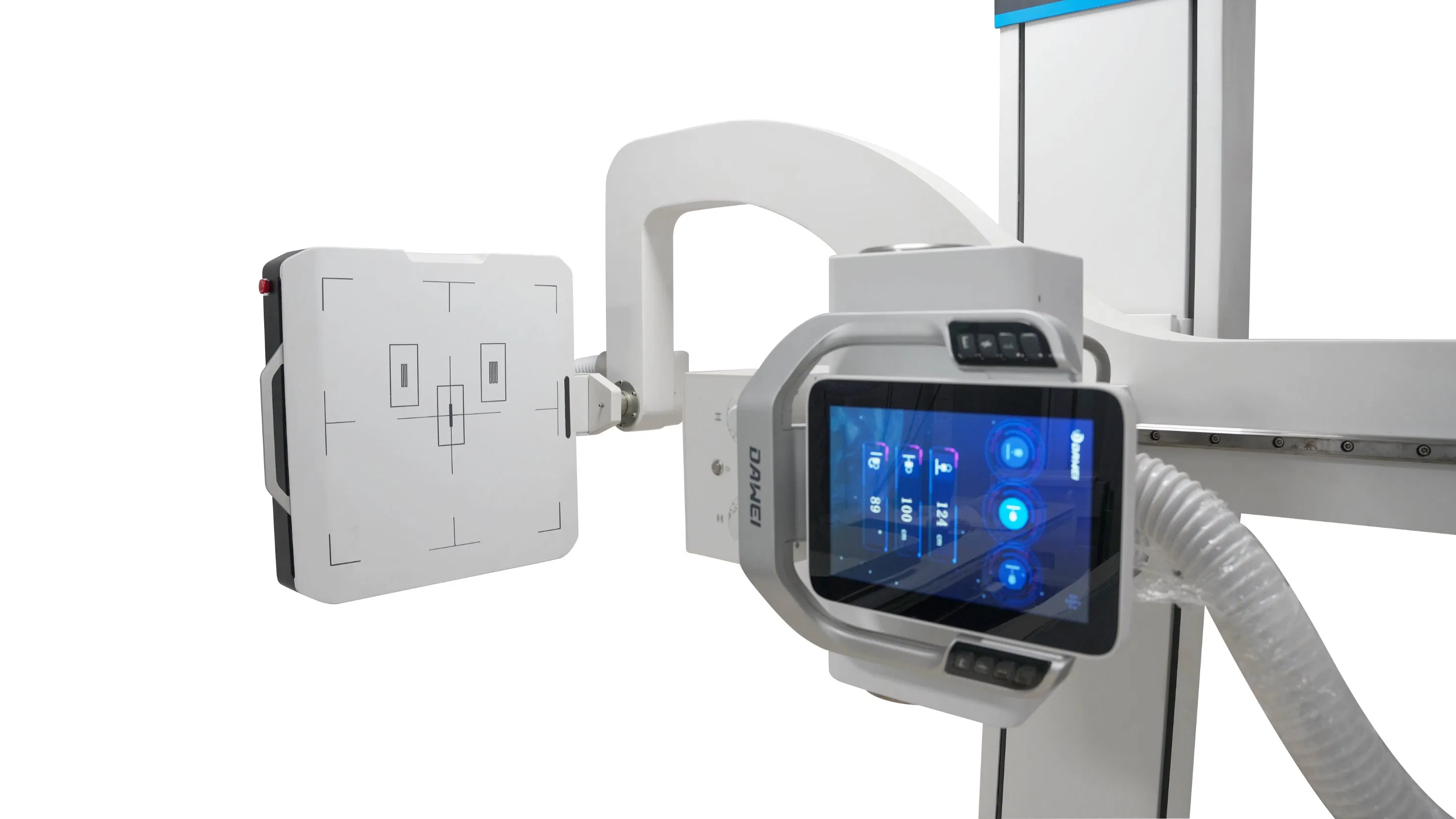

The electric lift and rotatable U-shaped frame meets photographic requirements for various standing and lying positions.
Digital CCD detector provides high-definition imaging.

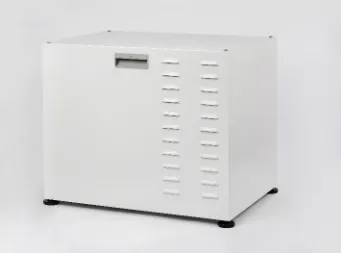

Integrated high-power compact X-ray generator and high-frequency inverter for a space-saving design.

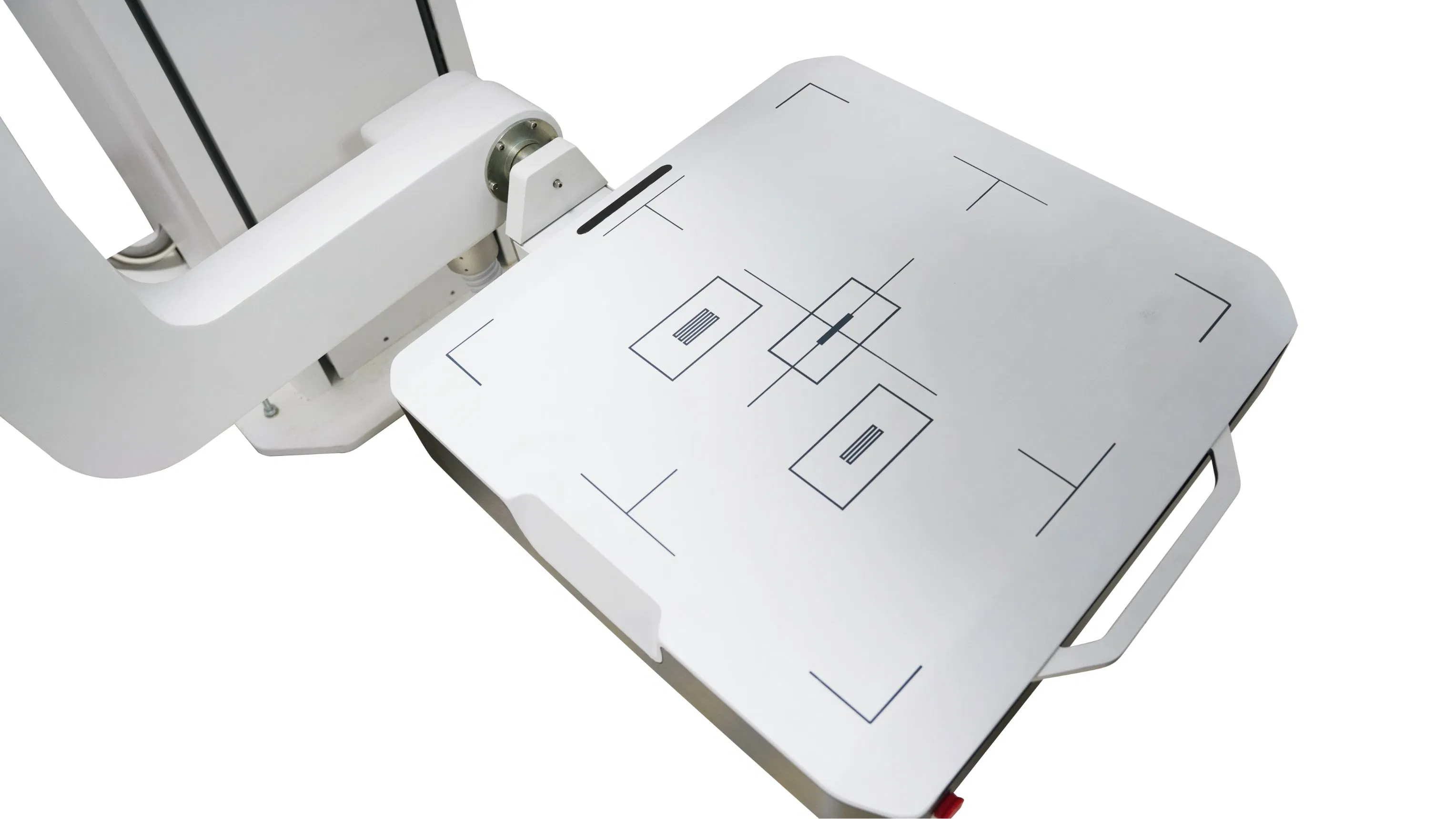

Specialized photographic bed with floating design and electromagnetic locks for accurate patient positioning.

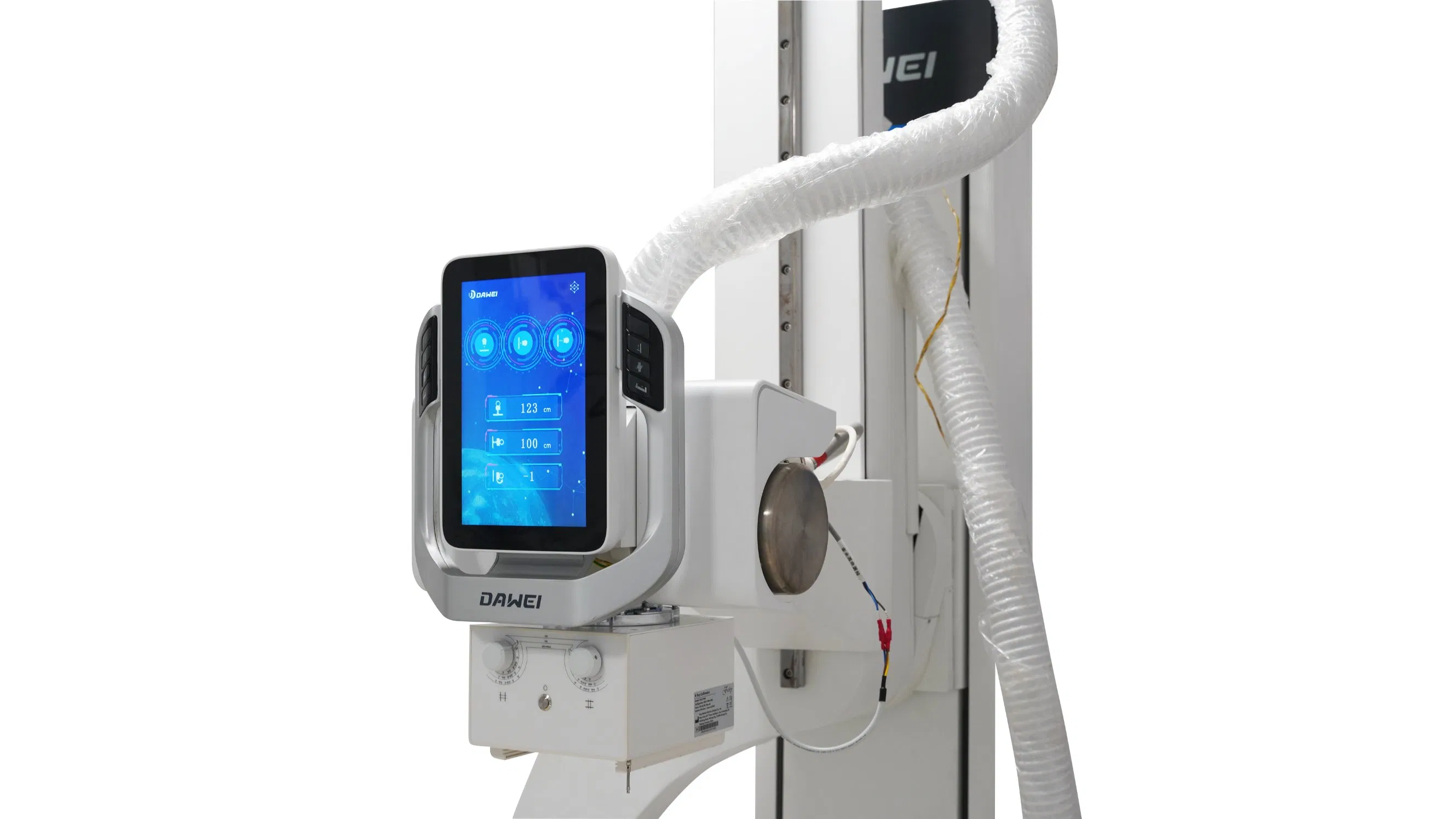

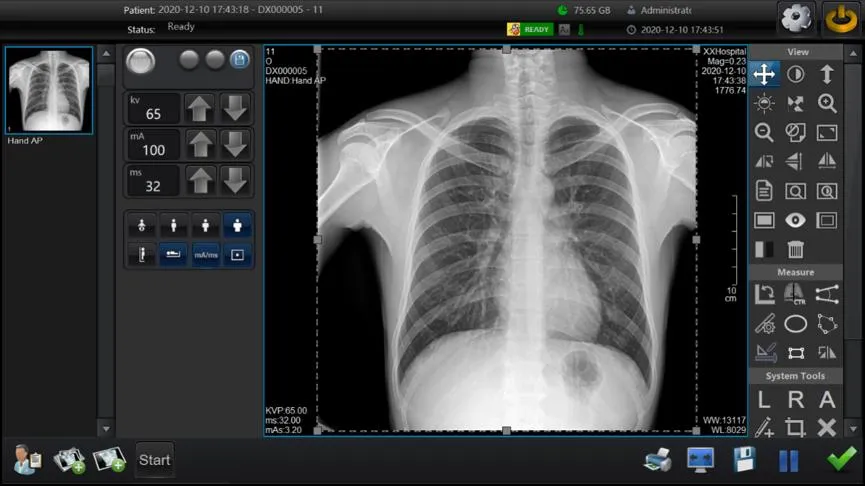

All-digital intelligent touch LCD control system with graphic interface for intuitive operation.
Pre-set parameters for different ages, body shapes, and positions (adult/children, multi-site).
Digital closed-loop control technology ensures radiation dose accuracy and repeatability.
Multiple automatic protection features and fault diagnostic tips for operational safety.

Technical Specifications

Item	Parameters
General Parameters
Output Power	50kW
Input Voltage	220VAC, ±10%, 50Hz
Inverter Frequency	25kHz, ±10%
Exposure Parameters
kV Range	40 KV ~ 150KV
mA Range	10 mA ~ 630 mA
ms Range	1ms ~ 6300 ms
mAs Range	0.1mAs ~ 200mAs
Advanced Features
Tech Mode	kV-mAs; kV-mA-ms
APR Number	2000 settings
Interface	RS-232 / DICOM 3.0

Core Components

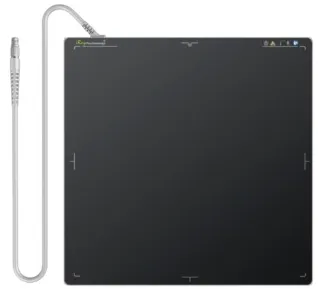

Flat Panel Detector: 17x17 inch large area, Cesium Iodide process, 139μm pixel size, 16-bit ADC.

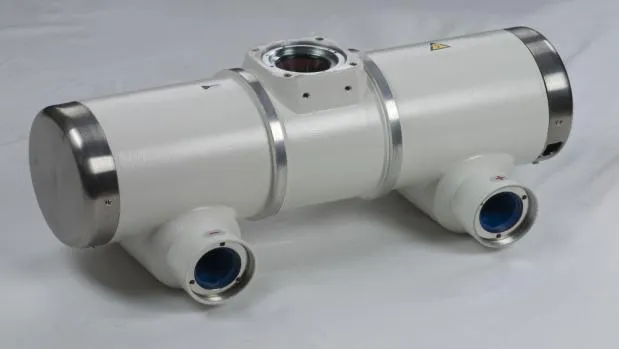

X-ray Tube: Double focus (0.6mm/1.2mm), 150kHU anode heat content for stable performance.

System Integration & Software:

DICOM 3.0 for seamless PACS/RIS integration.
Advanced image processing: multi-grade denoise, positive/negative reverse, and LIH.
Full medical history management with graphic report support.
Direct connection to laser printers for film output.

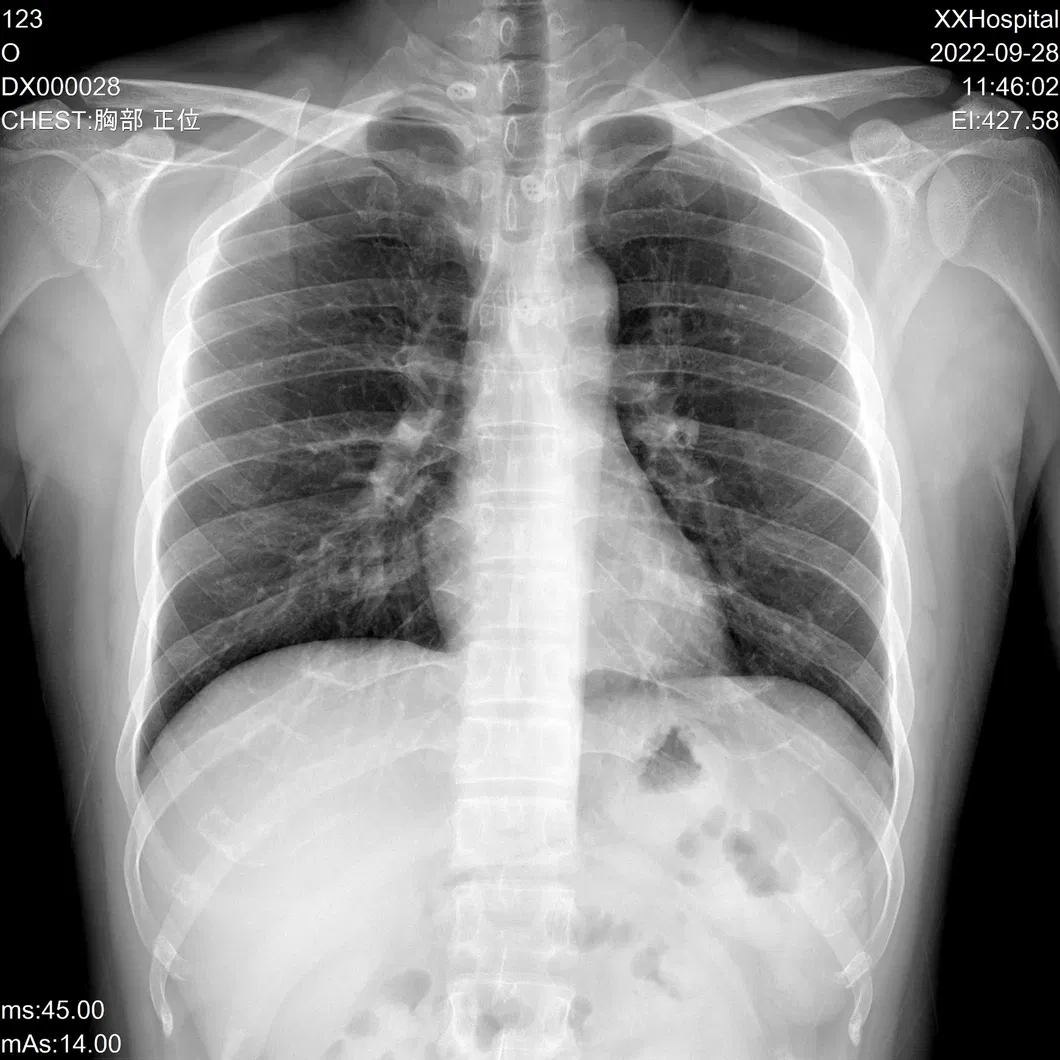

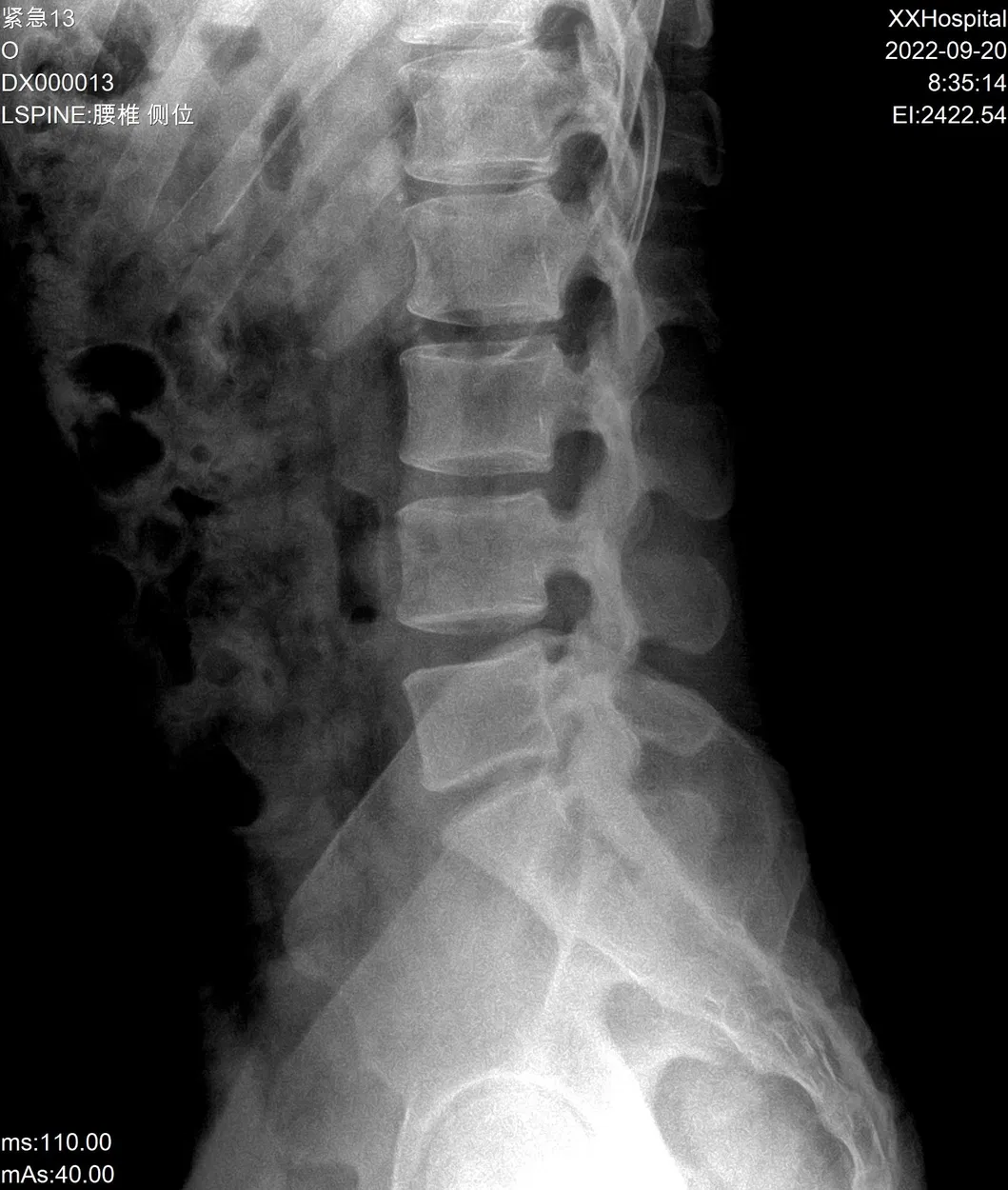

Operational Scenarios

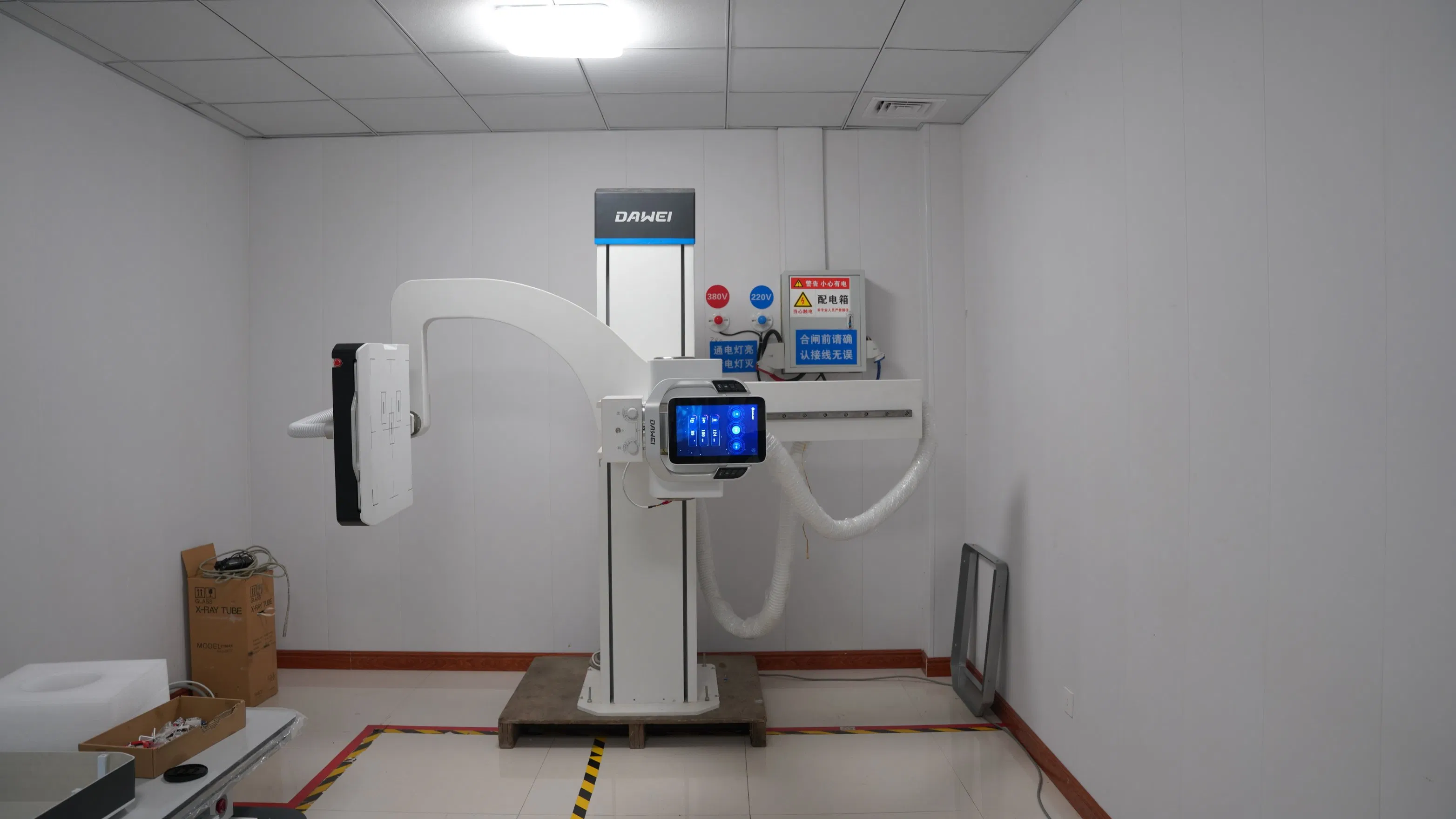

Installation & Performance

Service Commitment

OEM/ODM service available for global distributors.
24 months free after-sale warranty service.
Life-time repair and technical maintenance.
2-hour professional technical support response time.

Frequently Asked Questions

Q1: What are the primary advantages of the U-arm design? The electric U-arm frame is highly flexible, allowing for easy rotation and height adjustments. This enables the system to perform imaging for patients in both standing and lying positions without complex repositioning.

Q2: Does the system support integration with hospital networks? Yes, the system fully supports DICOM 3.0 protocols, ensuring seamless integration with PACS and RIS networks for digital storage and sharing.

Q3: What is the imaging area of the flat panel detector? The system utilizes a 17x17 inch large-area amorphous silicon flat panel detector with a high-performance cesium iodide process for superior image quality at lower radiation doses.

Q4: How does the system ensure patient radiation safety? The high-frequency generator uses kV and mA digital closed-loop control to provide precise radiation output. Additionally, advanced software algorithms achieve clear images while intentionally reducing the required dose.

Q5: Can the X-ray parameters be customized for different patient types? Yes, the workstation includes over 2000 APR (Anatomical Programmed Radiography) settings that can be modified and stored for different body parts, shapes, and ages (including children).

Q6: What kind of after-sales support is provided? We provide a 24-month free after-sales warranty, lifetime technical support, and a commitment to responding to technical inquiries within 2 hours.
