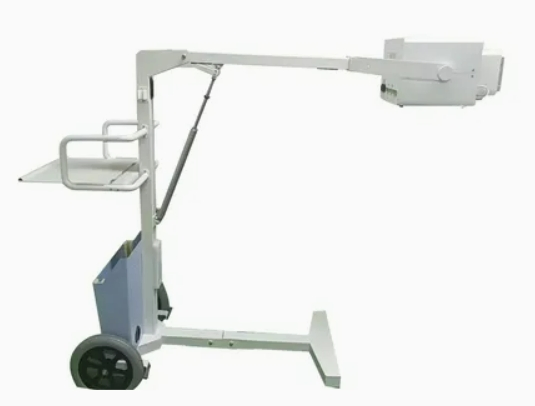

Compact High-Frequency Portable X-ray Film Imaging Diagnostic Medical Device

1 / 5

Compact High-Frequency Portable X-ray Film Imaging Diagnostic Medical Device

Customization:	Available
Customized:	Non-Customized
Certification:	CE

Send Inquiry

Product Description

Basic Information

Model NO.Z-400HF

ScaleMedium

Machine TypePortable

FrequencyHigh-Frequency

Transport PackageCarton / Wooden Crate

OriginChina

📷

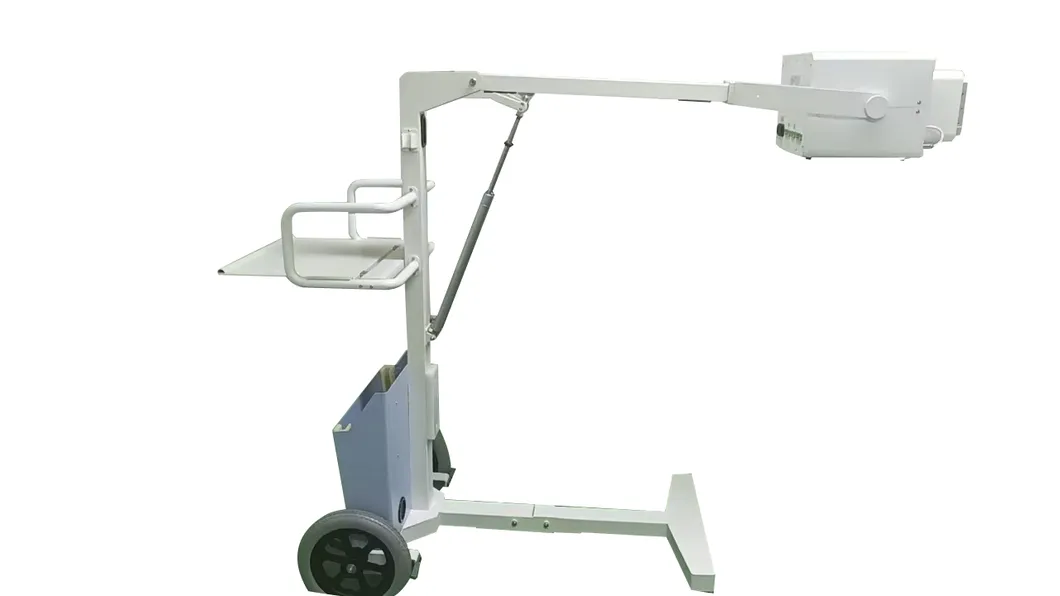

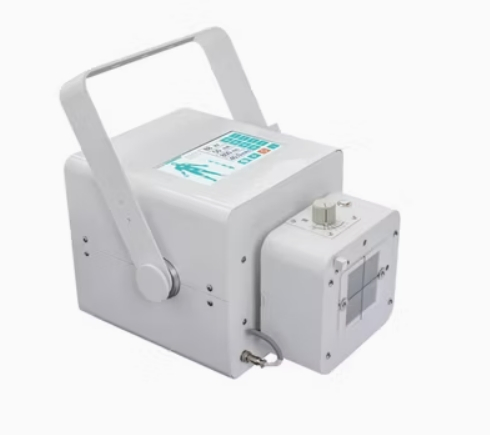

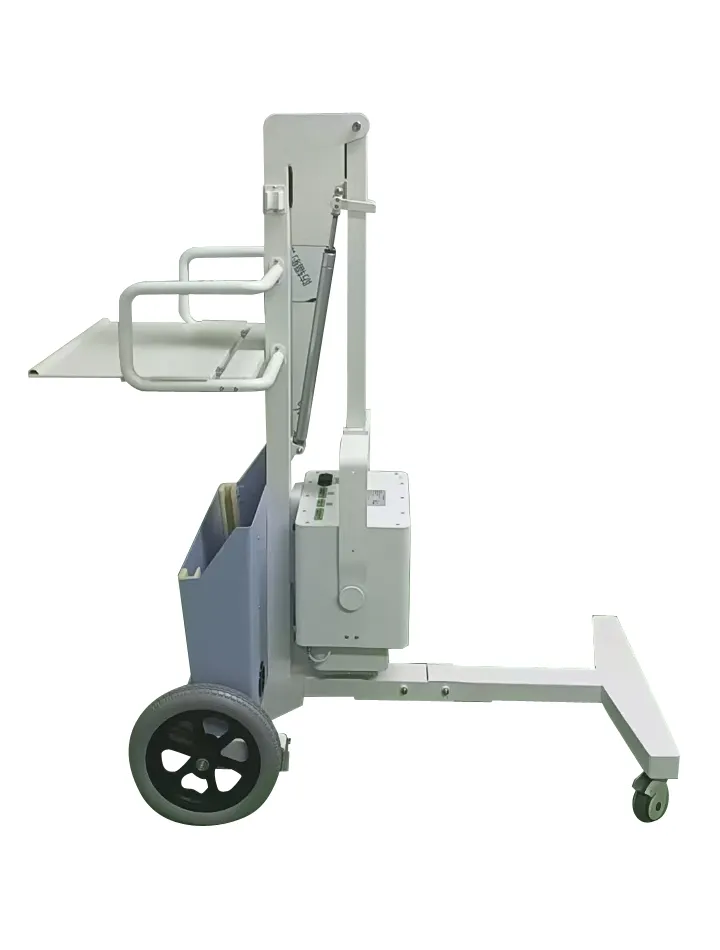

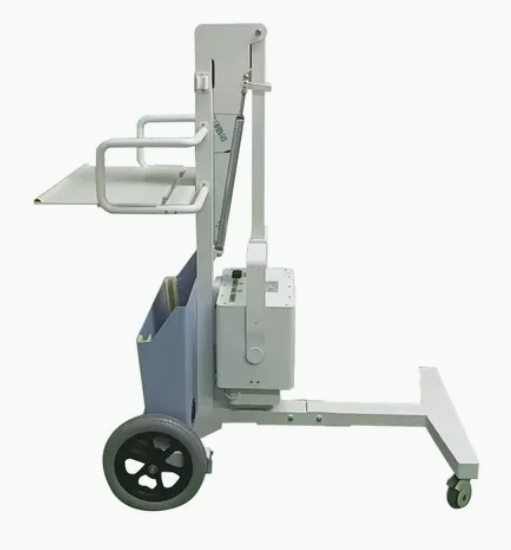

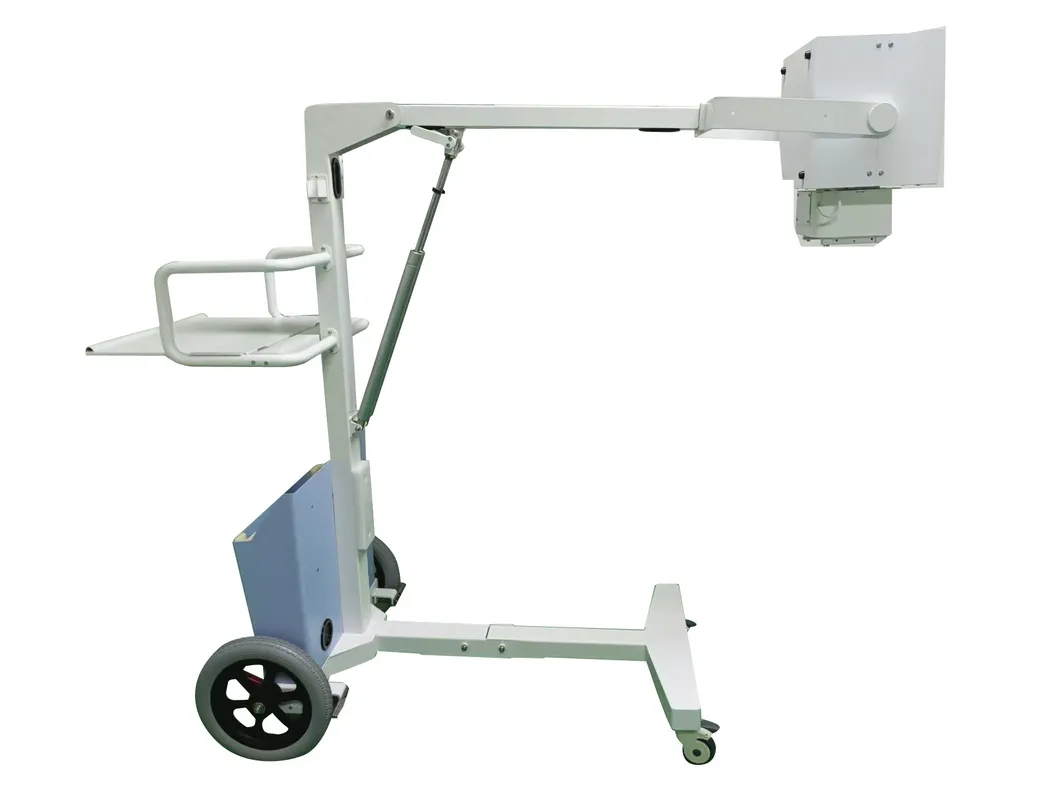

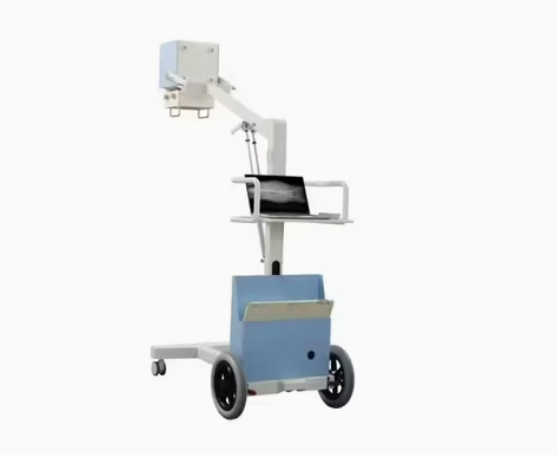

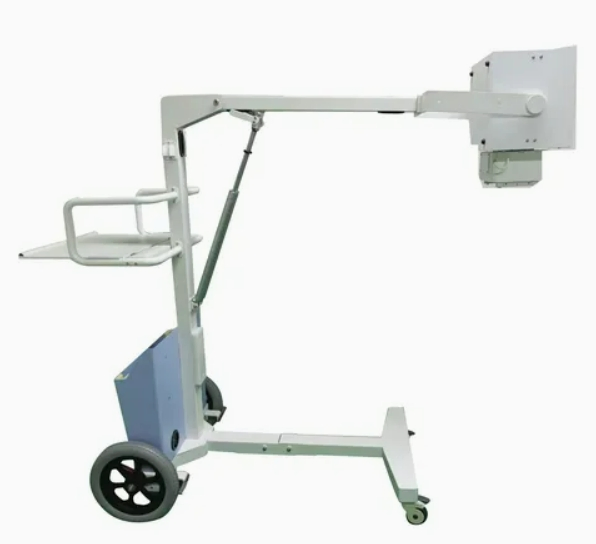

Detailed Photos

★

Product Highlights

Configure a lithium battery energy storage module to achieve offline operation
Equipped with laser ranging function, the operation is more intelligent and convenient
The power supply has a wide voltage input to meet the voltage needs of different regions
Optional features: Mobile Bed / Image stitching / AEC
Adopting high-frequency inverter technology to improve X-ray quality and output high-quality images
Stable performance and high cost-effectiveness
The overall design is compact and easy to carry
Equipped with three control exposure modes: interface button type, handbrake type, and remote control type
Customization can be made according to user requirements

📋

Technical Parameters

Model	NSS125	NSS80	NSS56
Power	12.5kW	8kW	5.6kW
Working Frequency	220VAC, 60/50Hz	220VAC/110VAC, 60/50Hz	220VAC/110VAC, 60/50Hz
kV Range	220kHz	100kHz	100kHz
mA Range	40-130kV	40-125kV	40-120kV
s Range	20~160mA, 10 Gears	20~125mA, 9 Gears	20~100mA, 8 Gears
mAs Range	0.01s-10s	0.01s-6.3s	0.01s-6.3s
Exposure Mode	0.1mAs~630mAs	0.1mAs~400mAs	0.1mAs~320mAs
Control	Manual/Remote	Manual/Remote	Manual/Remote
Size (mm)	360245230	330245230	360245230
Weight	20kg	16.8kg	16.8kg

🏢

Industry Expertise

As a supplier of one-stop solutions for X-ray equipment, our products are widely used in medical, dental, veterinary, and industrial imaging applications. We offer a wide range of X-ray products including flat panel detectors, generators, scintillators, X-ray tubes, X-ray stands, DR assembly solutions, as well as DR software and cloud PACS systems. We aim to provide valuable, cost-effective solutions and services to customers worldwide.

📜

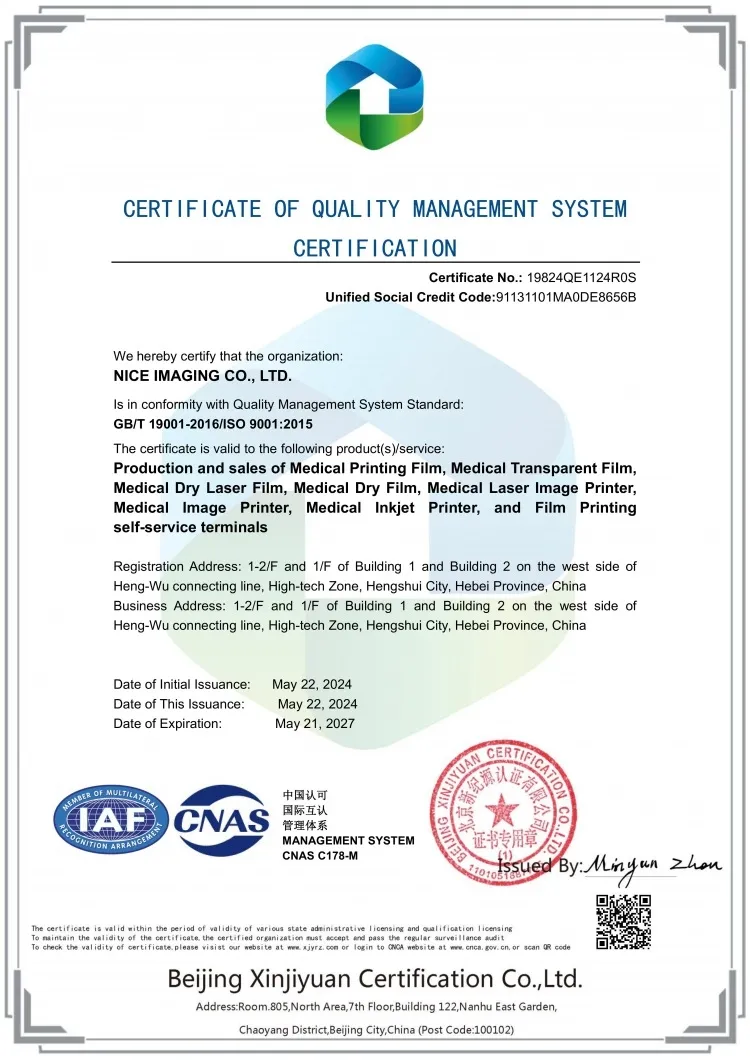

Certifications

Frequently Asked Questions

What technology does the Z-400HF series use?

It adopts advanced high-frequency inverter technology to significantly improve X-ray quality, resulting in stable and high-quality diagnostic images.

Can this device operate without a direct power source?

Yes, the device can be configured with an optional lithium battery energy storage module, allowing for full offline operation in various environments.

Is the operation user-friendly for mobile medical teams?

Absolutely. It features a compact design for easy carrying and includes a laser ranging function to make positioning more intelligent and convenient.

How many exposure control modes are available?

There are three modes: an interface button type, a handbrake type, and a remote control type, providing flexibility for different clinical scenarios.

Does the power supply support different international voltages?

Yes, it is designed with a wide voltage input to meet the specific power requirements of different global regions (110VAC/220VAC).

Can I request customization for specific medical needs?

Yes, customization can be made according to specific user requirements, including options for mobile beds, image stitching, or AEC.
