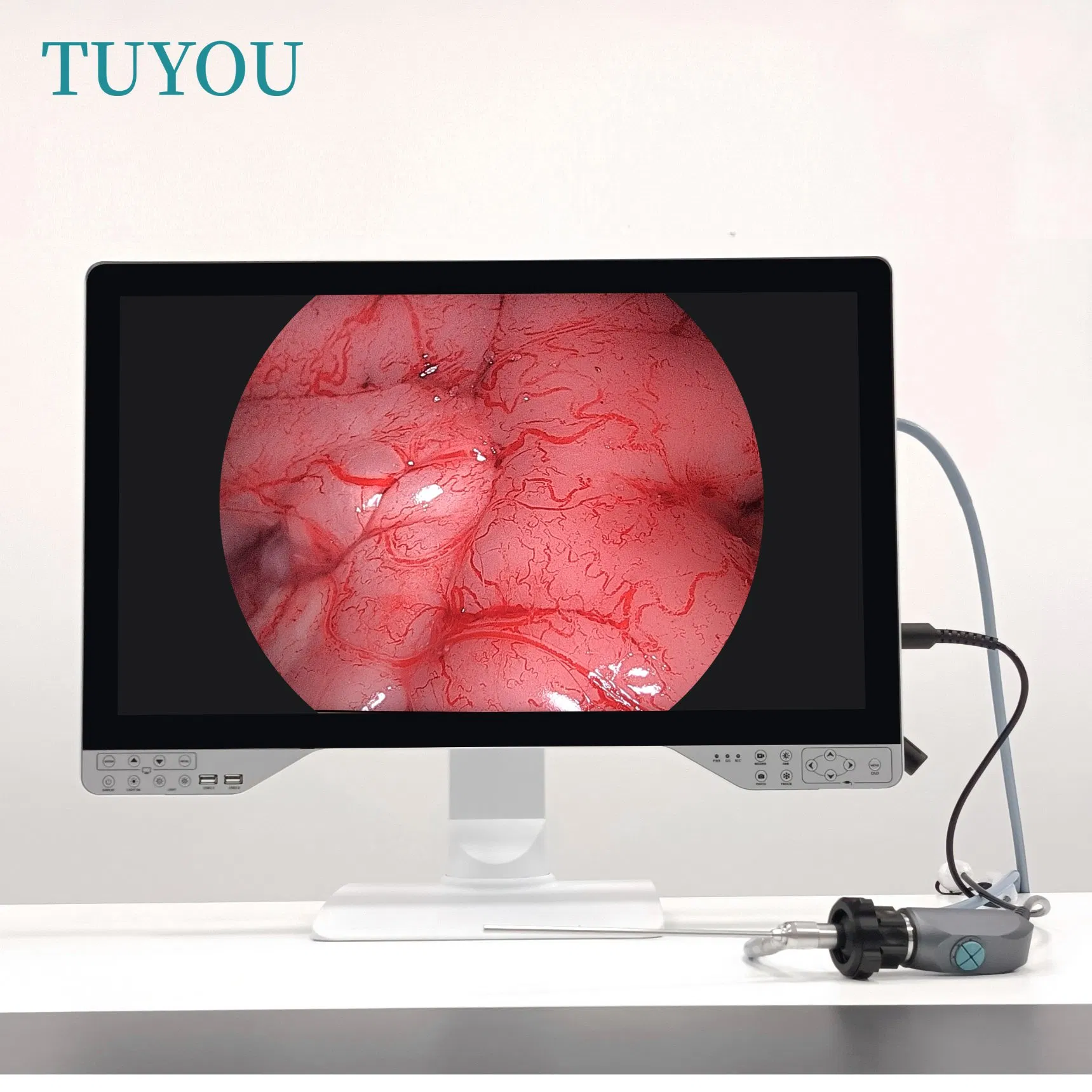

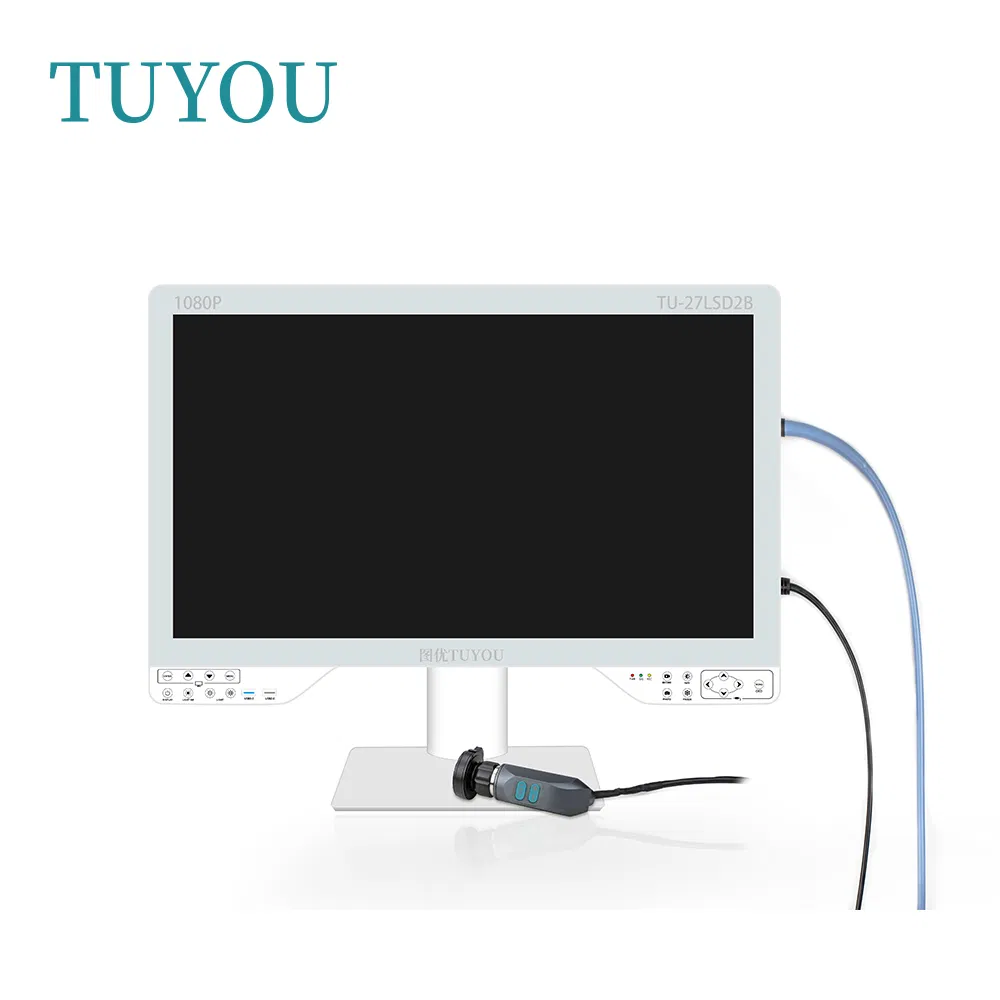

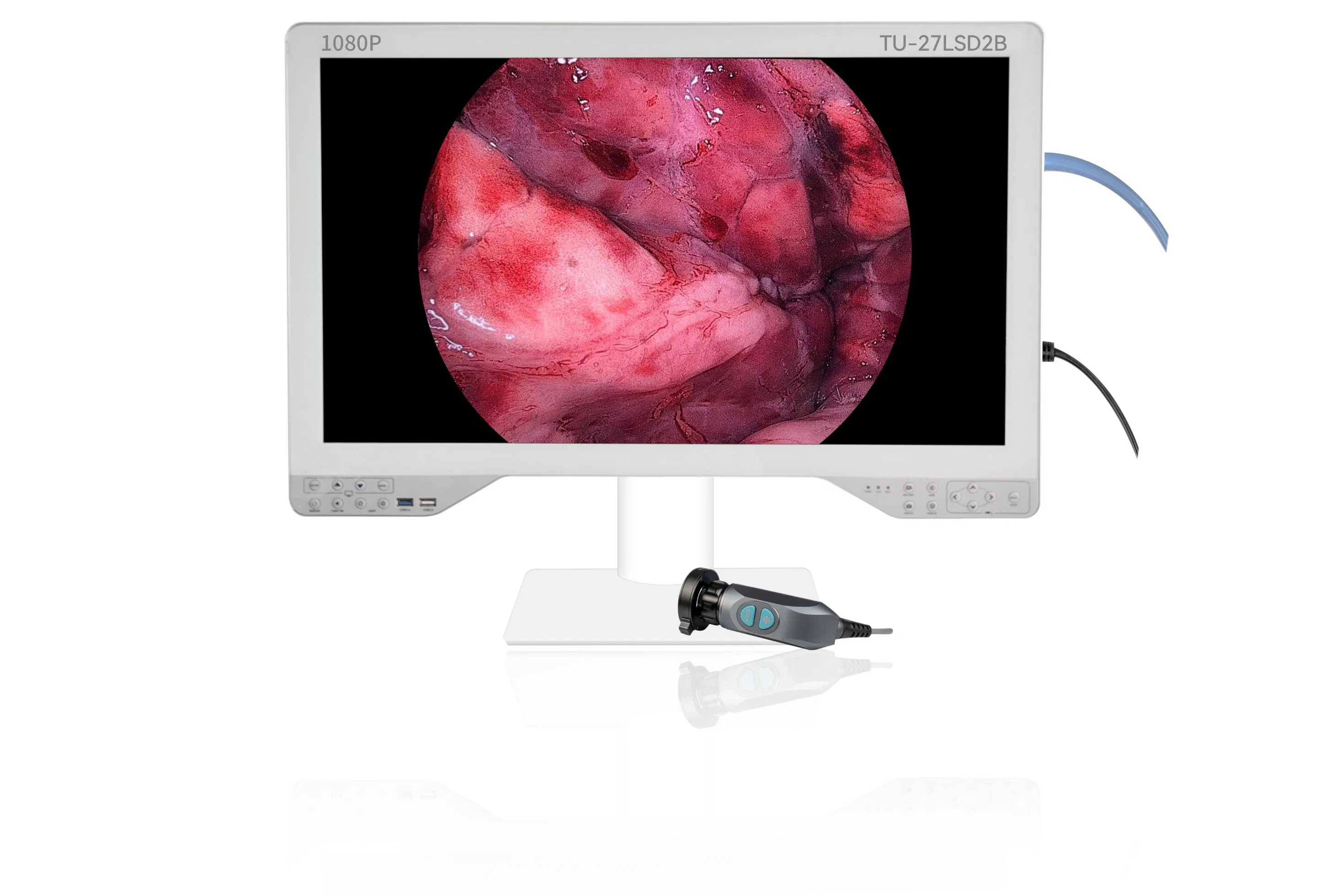

Endoscope Light Source 1080P HD Digital Video Recording Laparoscopy Camera Display System with All in One 27 Inch Monitor

1 / 5

Endoscope Light Source 1080P HD Digital Video Recording Laparoscopy Camera Display System with All in One 27 Inch Monitor

Customization:	Available
Customized:	Customized
Certification:	CE, ISO13485, FCC

Send Inquiry

Product Description

Basic Information

Model NO. TU-27LSD2B

Specification 46.5*45*21.5cm 6kg

Production Capacity 2000/Month

Transport Package Standard Shipping Package

Product Description

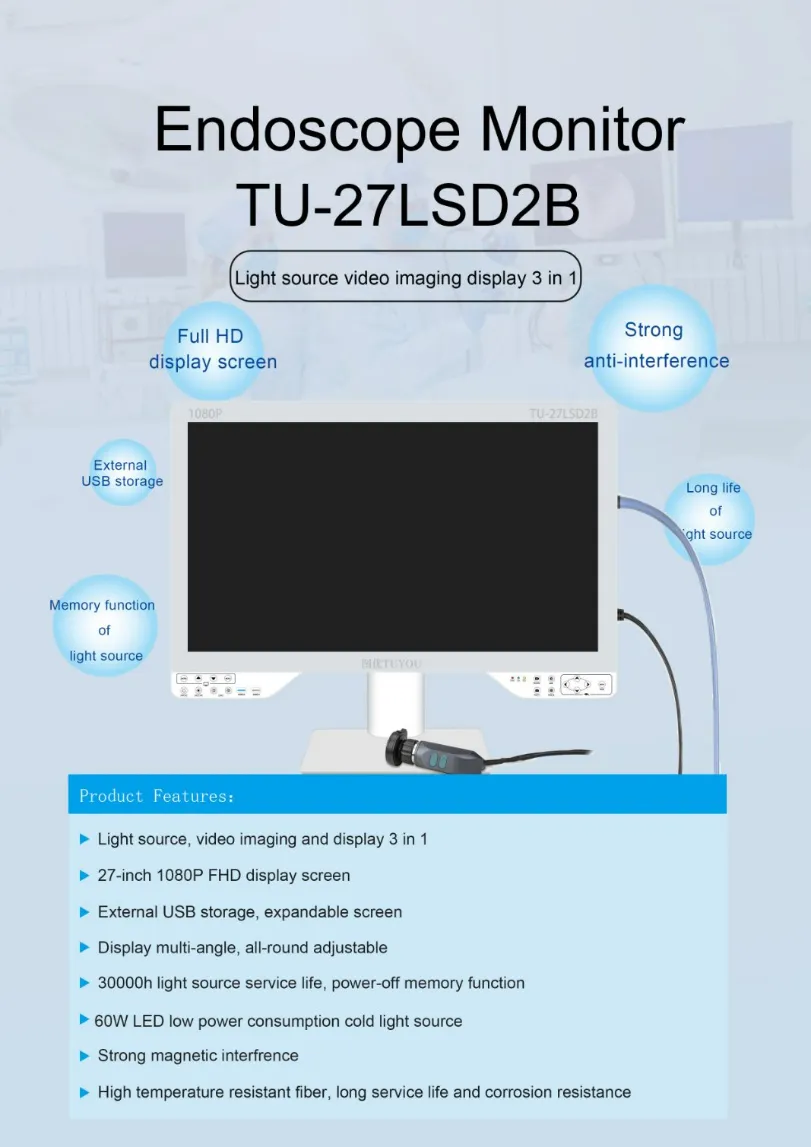

Product Composition Introduction:

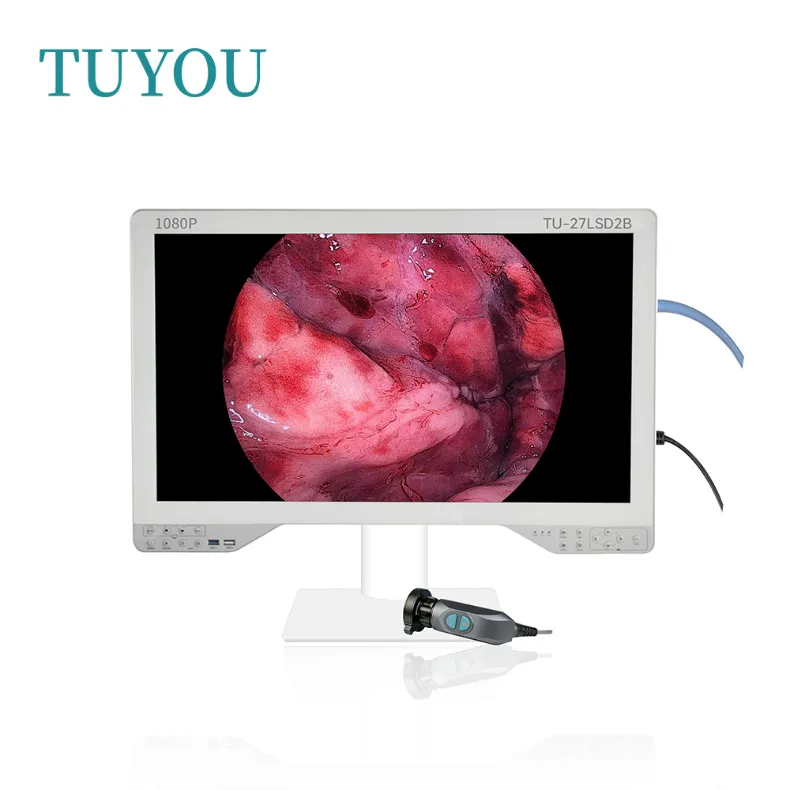

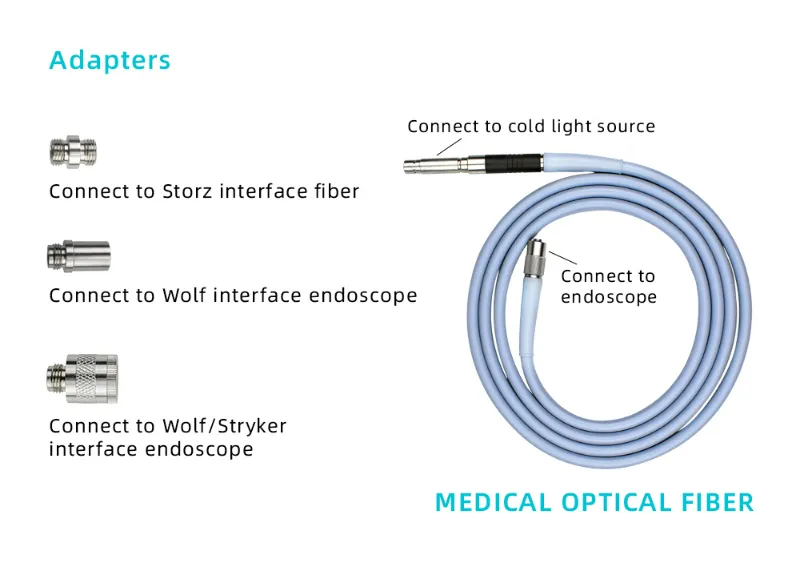

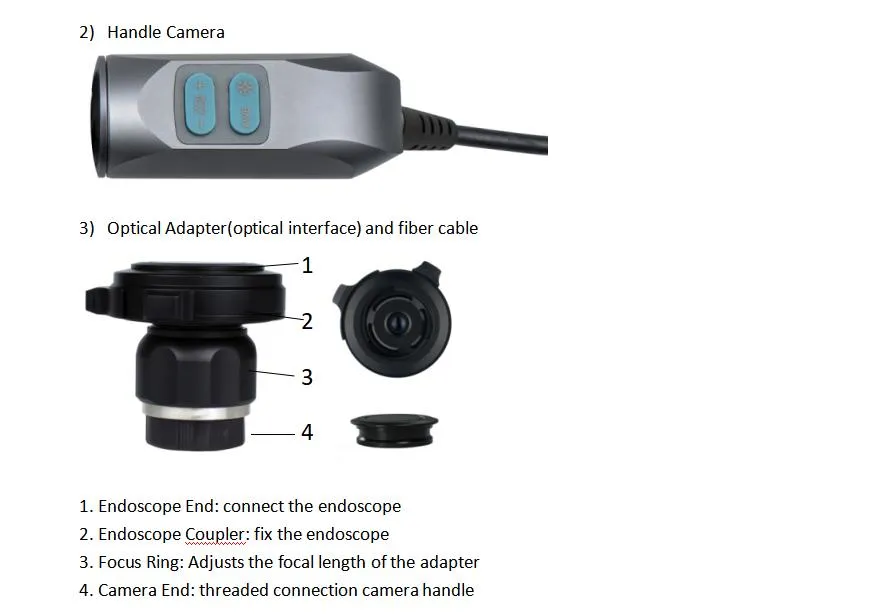

The endoscope integrated imaging system consists of a 27-inch Display, Display Holder (the display also can be fixed on endoscope cart, the cart is optional), Display Driver Board, Display LED Backlight, Camera Control System Motherboard, Light Source Control System, Handle Camera, Fiber Cable and Optical Adapter (Optical Interface).

📺

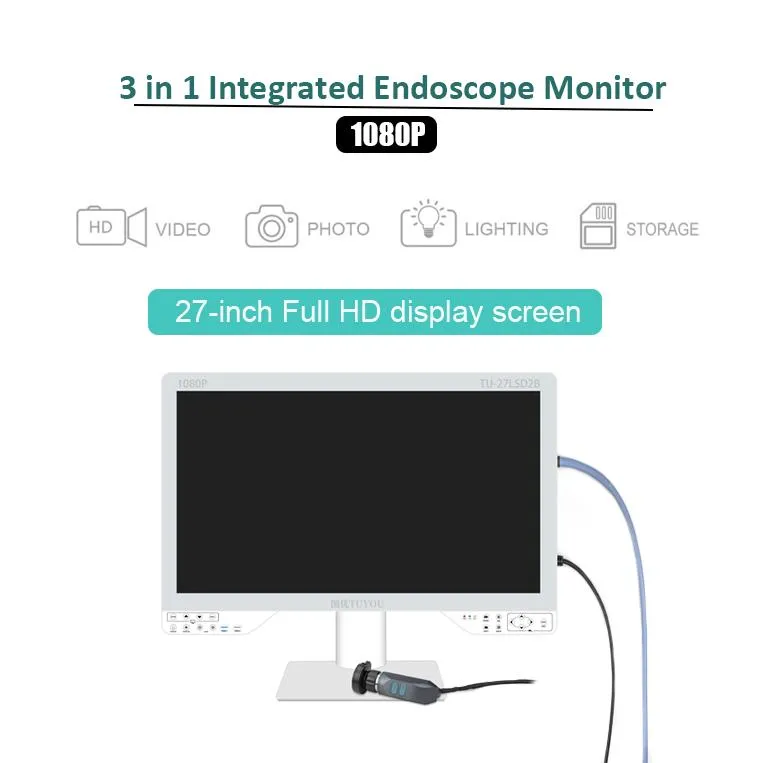

High Definition

27 inch 1080P high-definition display screen for crystal clear imaging.

💾

Dual Storage

Two built-in USB full HD video storage options, supports external monitor connection.

💡

LED Light Source

Built-in high-performance LED imported cold light source for optimal visibility.

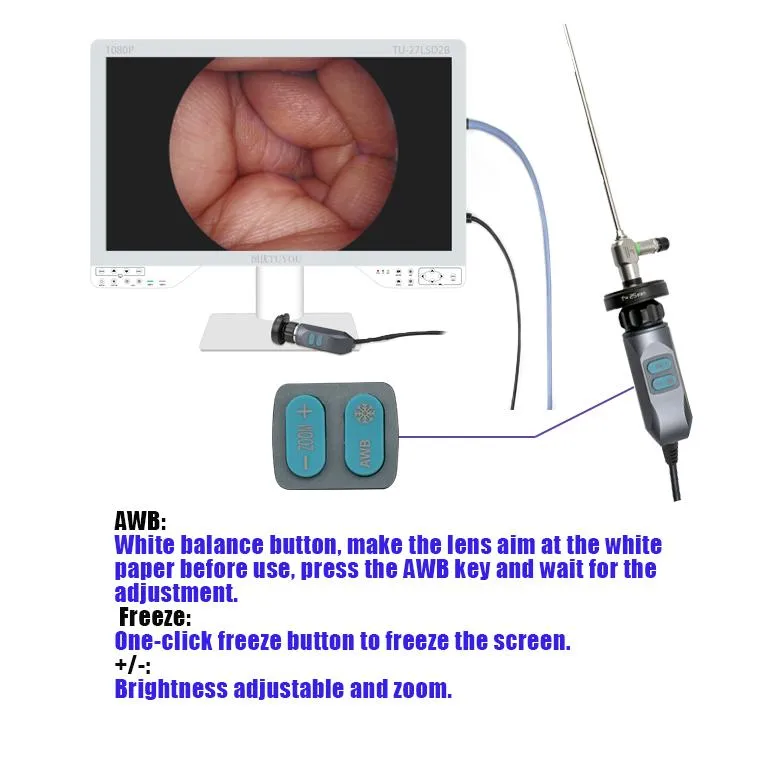

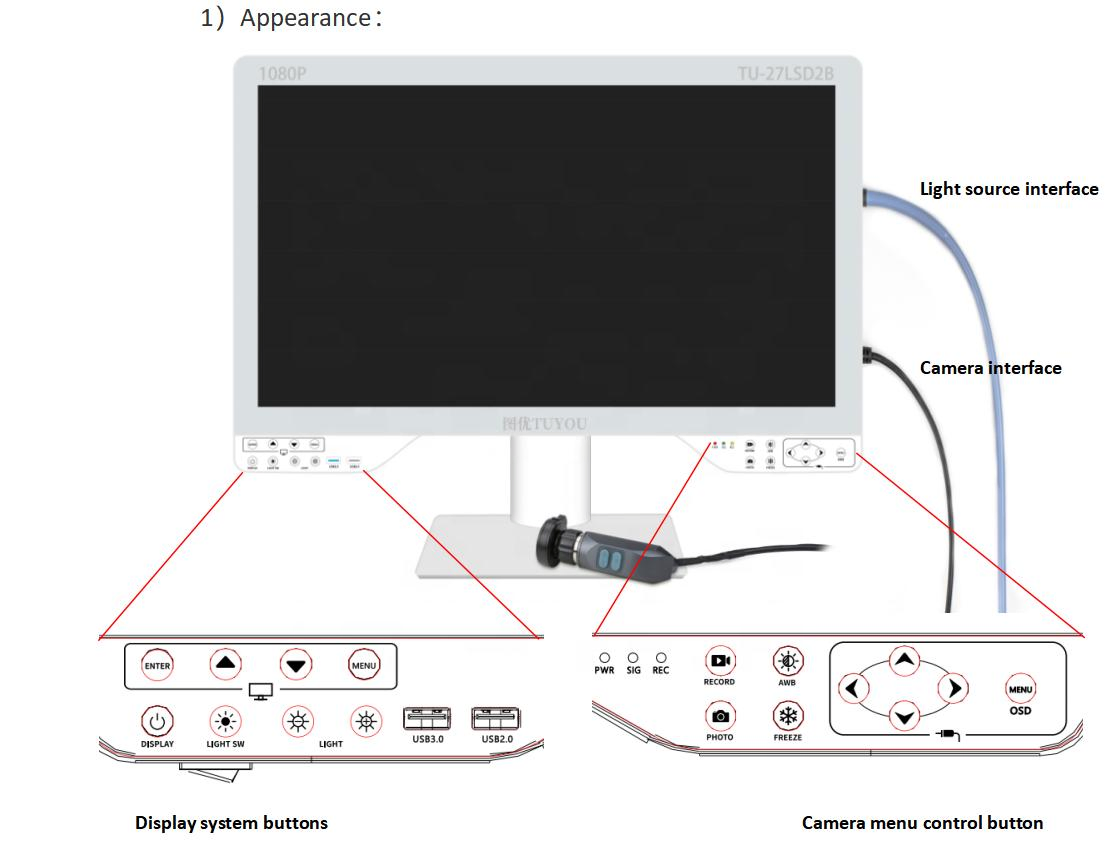

Key Functionalities:

🎯 One-key freeze & White balance
🔍 One-key digital zoom in/out
📸 One-key photo & Video recording
📐 Multi-angle height adjustment

Technical Parameters

System Parameters
Input Interface	SDI 1080P 60FPS

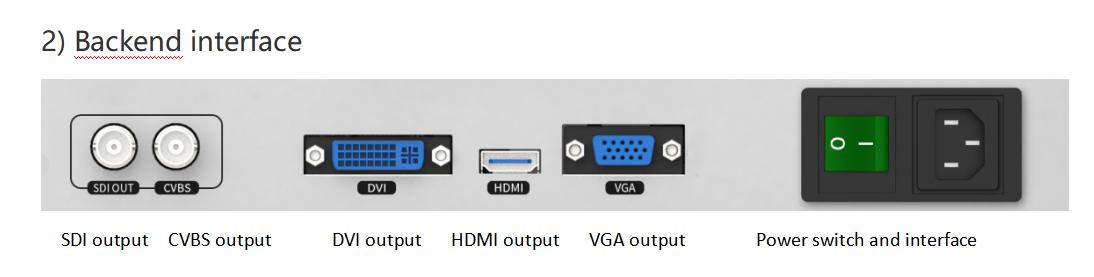

Output Interface	HDMI/SDI/CVBS/VGA/DVI
Keypad Control	Control the mainboard menu and shortcut keys through RX/TX
Power	AC110V~240V
U Disk Storage	USB2.0/USB3.0 (up to 32GB) to record and take photos
Maximum Resolution	4096*2160@60H
Display Size	L 660mm W 420mm H 90mm

Camera & Sensor Parameters
Image Sensor	1/2.8" SONY CMOS
Effective Pixels	2 Million Pixels
Scan System	Progressive Scan
Mode Selection	ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
S/N Ratio	More than 42Db(AGC off)
Language	Chinese, English, Japanese, Korean, etc.

Light Source Parameters
Light Type	LED
Effective Optical Power	100W
Illuminance	400W LUX
Color Temperature	5700K +/-500K
Brightness Adjustment	Support

Detailed Photos

Certifications & Quality Control

Packaging & Delivery

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional medical imaging instruments manufacturer. All products are manufactured by our dedicated team in our specialized facility.

Can you provide OEM services?

Yes, we offer comprehensive OEM and ODM services to meet your specific branding and technical requirements.

What is the expected delivery time?

Standard orders are typically delivered within 7 working days upon receipt of payment. Samples are usually ready-made for immediate dispatch.

What is the warranty period for your products?

We provide a free two-year warranty. During this period, we offer free repairs and replacement of fault assemblies for any manufacturing defects.

What payment methods do you accept?

We accept a wide range of payment terms, including T/T Bank Transfer, Trade Assurance Service, Western Union, Money Gram, PayPal, L/C, and Cash.

What does the endoscope system include?

The full system includes a 27-inch 1080P display, camera control system, built-in LED light source, handle camera, fiber cables, and optical adapters.
