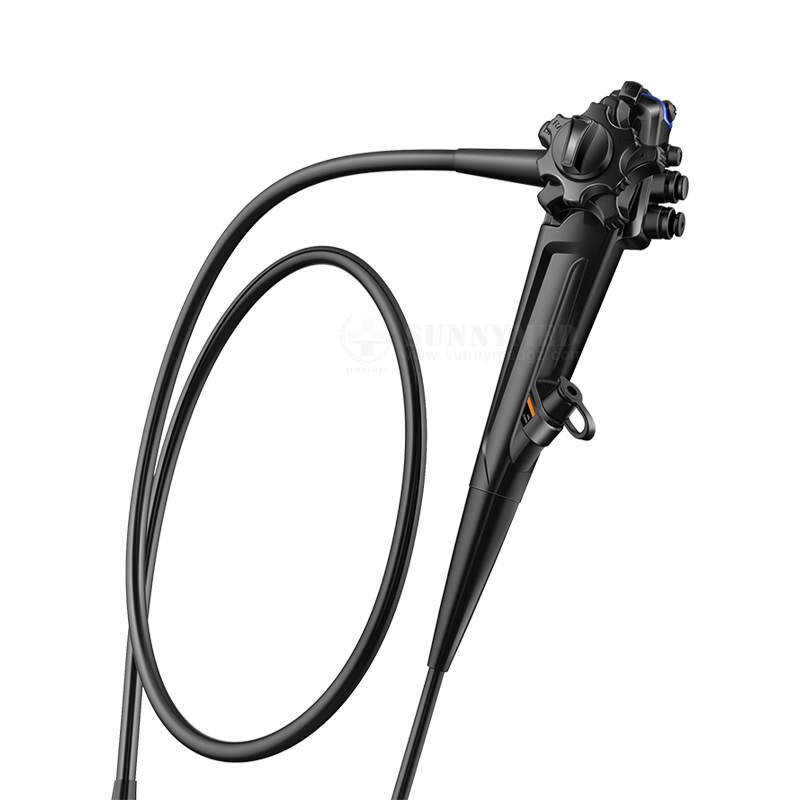

Sy-P006-1 Cbi Mode Endoscope HD Camera System with Light Source for Whole Set Gastroscope Colonoscope for Hospital

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Digital Imaging System

Product Description

Basic Information
Model NO. SY-P006-1
Certification CE, EEC, ISO13485
Imaging Modes CBI (Compound Band Imaging)
Application Hospital Medical Examination
Product Description

SY-P006-1 CBI Mode Endoscope HD Camera System

High-definition image system integrated with professional light sources for a complete set of gastroscope and colonoscope clinical requirements.

High definition images & HbE enhancement
Compound Band Imaging (CBI) technology
Intelligent experience & Comprehensive functions
Multiple light sources (LED OR Xenon)
USB storage for efficient operations
Forward auxiliary water feeding function
Flexible bending section & Effective control
24 inch large screen display mode
Technical Specifications
Feature CBI Details / Performance
CBI Regular Uses 405~425nm, 530nm LED to identify mucosal lesions and highlight submucosal blood vessels.
CBI Indigo Improved contrast between mucosa and blood vessels for prominent vessel texture.
CBI Aqua Partial blue and green narrow band light to increase endoscopic mucosal tissue structure visibility.
HD Image Sensor Equipped with high definition sensor for realistic color restoration and mucosal details.
Structure Enhancement Increased image sharpness to display lesion range and profile clearly.
Scope Parameters
Type Working Length Insertion Tube Ø Instrument Channel Ø Bending Range
Video Gastroscope 1050mm 9.6mm 2.8mm Up 210°, Down 90°, L/R 100°
Video Colonoscope 1650mm 12.8mm 3.7mm Up 180°, Down 180°, L/R 160°
Detailed Photos

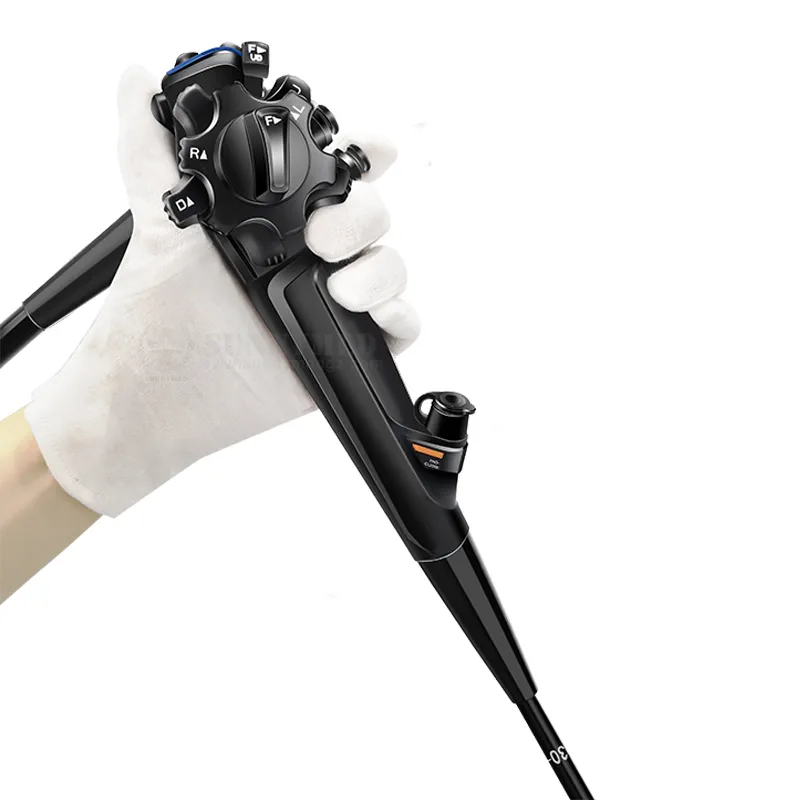

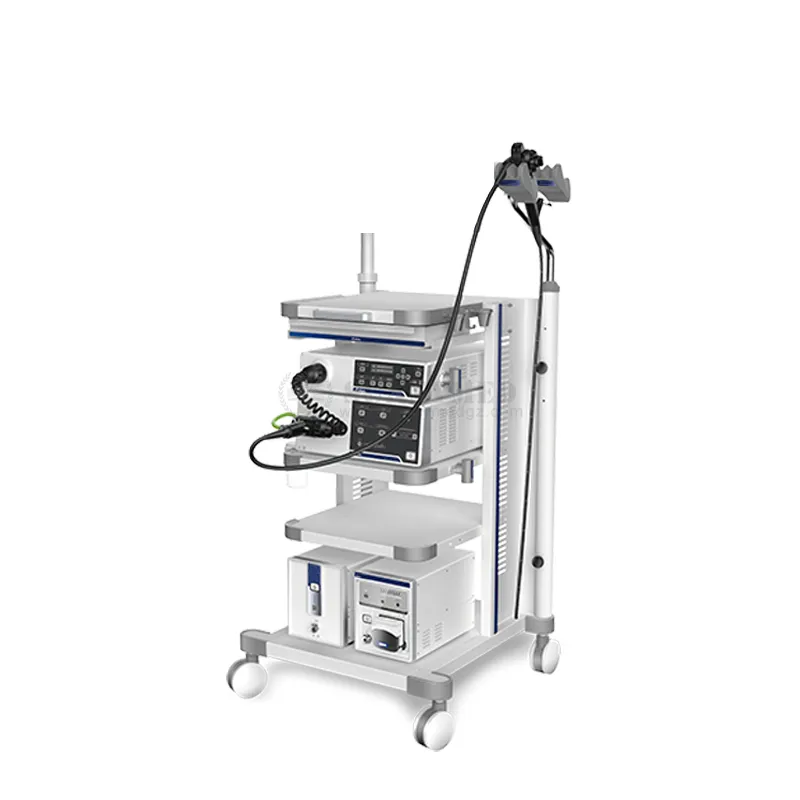

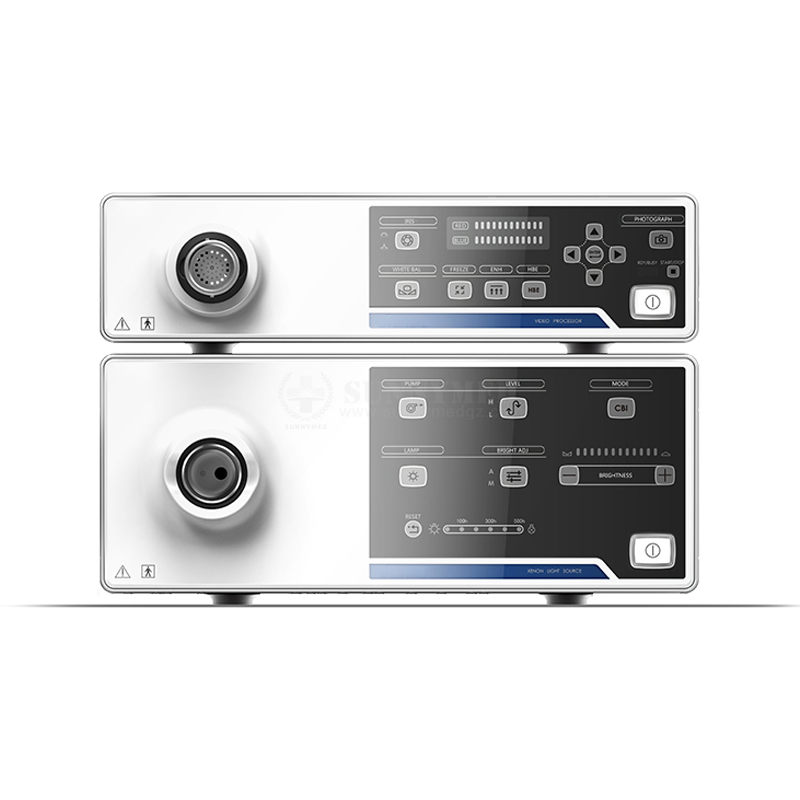

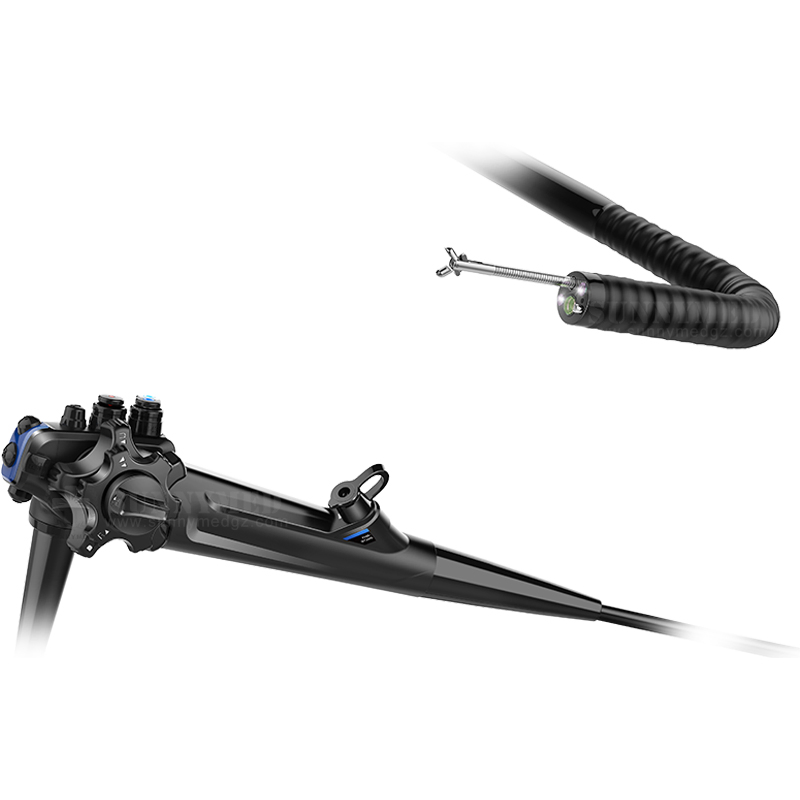

HD Camera System Unit Endoscope Handle Control System Interface

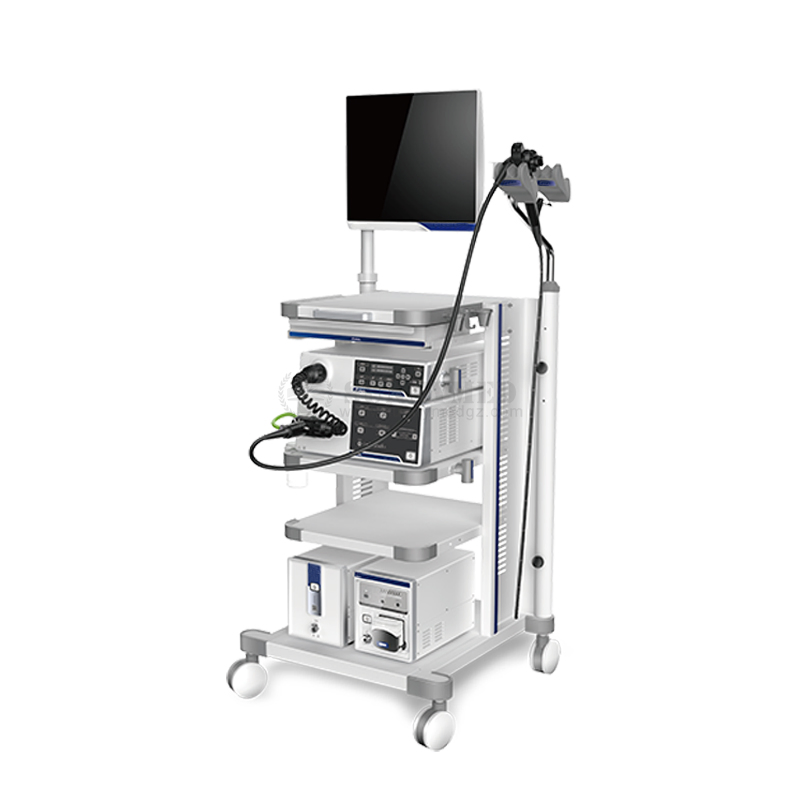

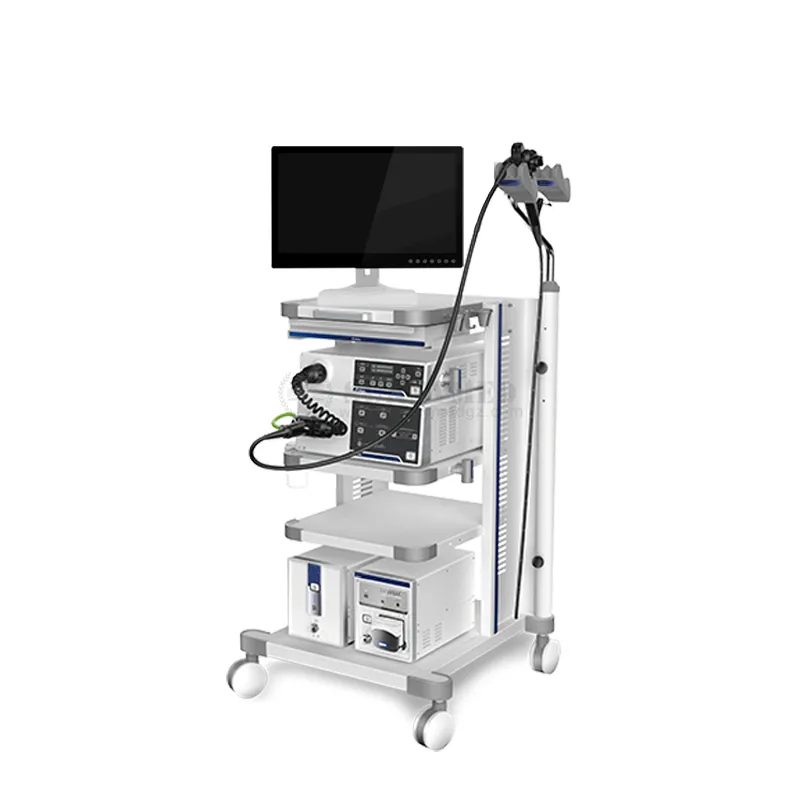

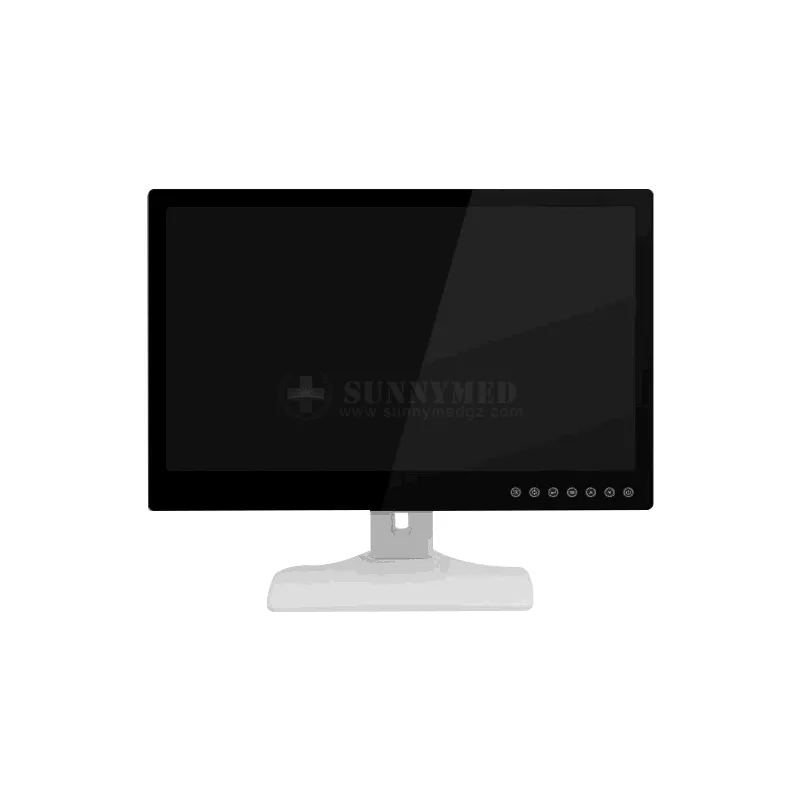

Gastroscope Detail Full Set Overview
Ordering Information
Order Process

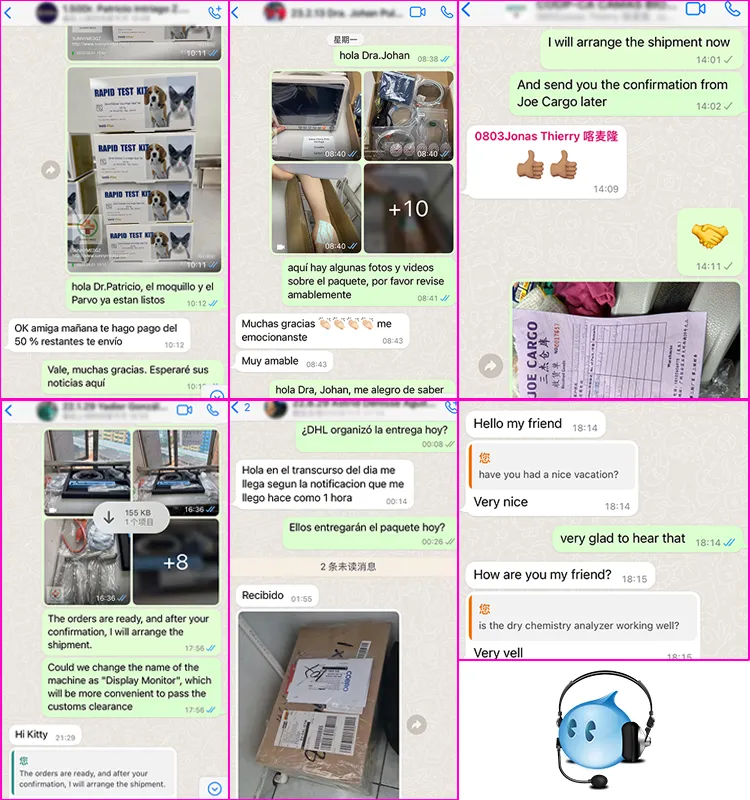

Quality Inspection
Why Choose This Model
Why Choose Us Benefits
Frequently Asked Questions
1. What is the benefit of CBI (Compound Band Imaging) mode? CBI mode uses specific wavelengths of light (blue and green) to enhance the visibility of mucosal tissue structures and submucosal blood vessels, aiding in more accurate clinical diagnosis.
2. Does the system support video recording? Yes, the system is equipped with USB storage capabilities, allowing high-definition images and videos to be captured and saved at any time during the procedure.
3. What light source options are available? The SY-P006-1 system offers flexibility with multiple light source selections, including high-performance LED or Xenon lamps, depending on clinical preference.
4. Is the equipment compatible with different scope types? This professional system is designed for a whole set configuration, compatible with both high-definition gastroscopes and colonoscopes for comprehensive hospital use.
5. What are the payment and shipping terms? We support multiple payment methods including T/T (Bank Transfer), Credit Card, Western Union, and L/C. Delivery includes a safety one-to-one inspection before shipment to ensure quality.
6. How does HbE enhancement work? The HbE feature enhances the hemoglobin signal, making the morphology of blood vessels significantly more obvious compared to standard white light imaging.
