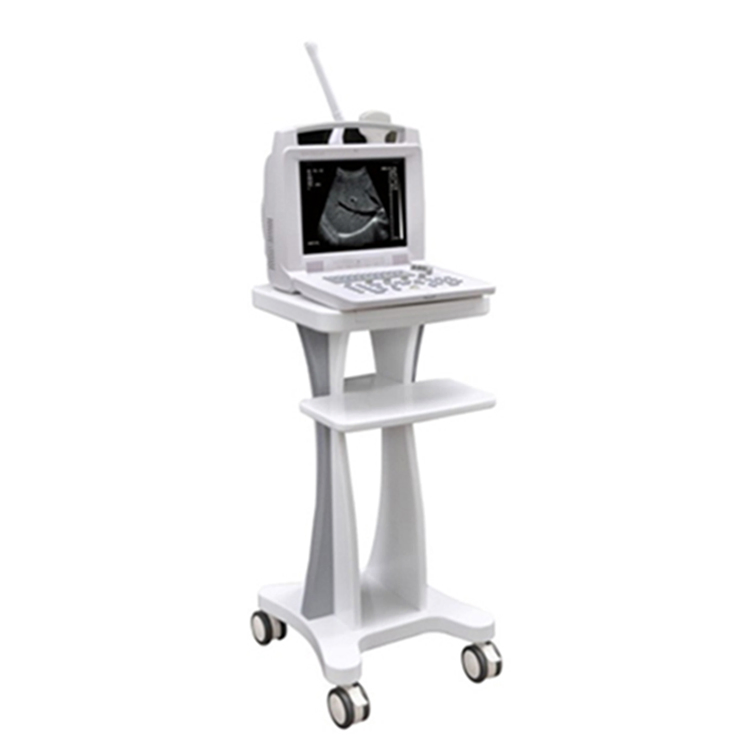

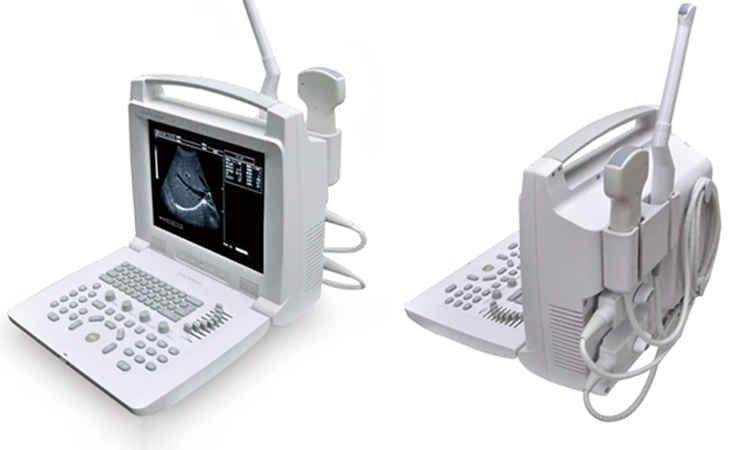

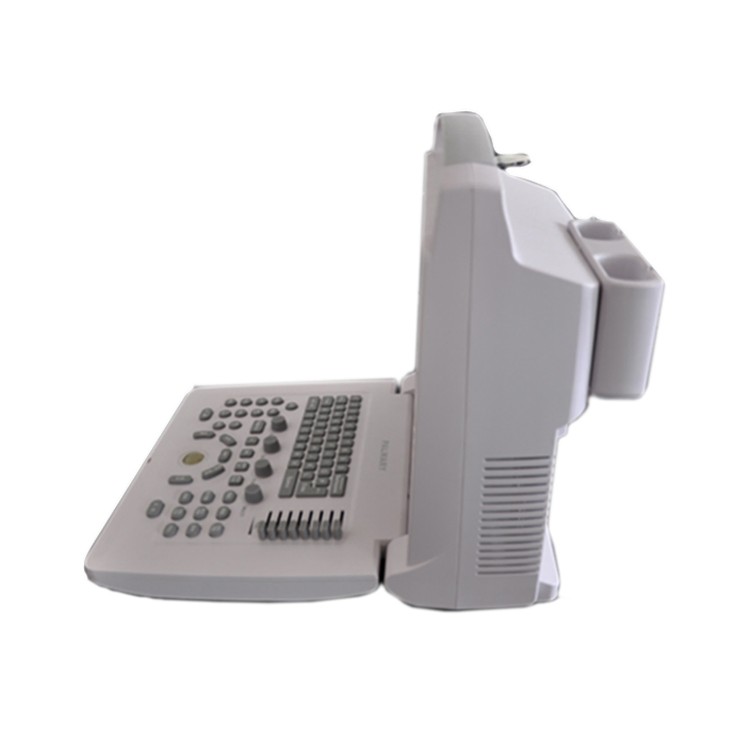

Factory Direct Sales Black and White Digital Ultrasonic Imaging System

1 / 5

Factory Direct Sales Black and White Digital Ultrasonic Imaging System

Customization:	Available
Customized:	Customized
Certification:	CE, ISO13485

Send Inquiry

Product Description

📦 Basic Information

Model NO.

YJ-U318

Scale

Medium

Product

Ultrasound Scanner

Transport Package

40*50*60

Trademark

FOREVER

Origin

China

Capacity

10000pcs/Year

🔍 Product Overview

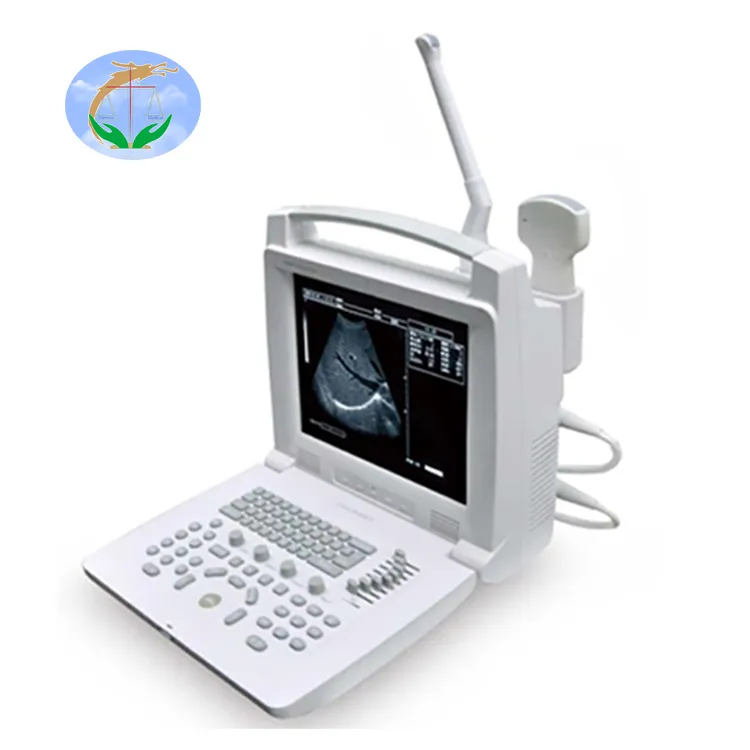

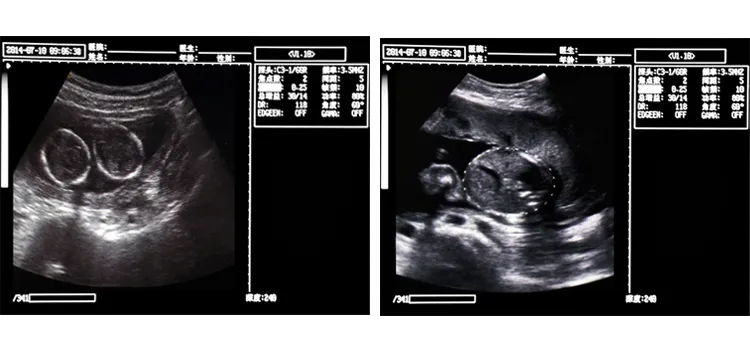

YJ-U318 Full Digital Portable Ultrasound Scanner

This equipment is a high-resolution convex linear ultrasound scanning diagnostic system. It integrates micro-computer control and advanced digital technologies including Digital Scan Converter (DSC), Digital Beam-forming (DBF), Real-time Dynamic Aperture (RDA), Dynamic Receiving Apodization, Dynamic Receiving Focusing (DRF), and Digital Frequency Scan (DFS).

✨ Key Features

Real-time picture uploading to PC

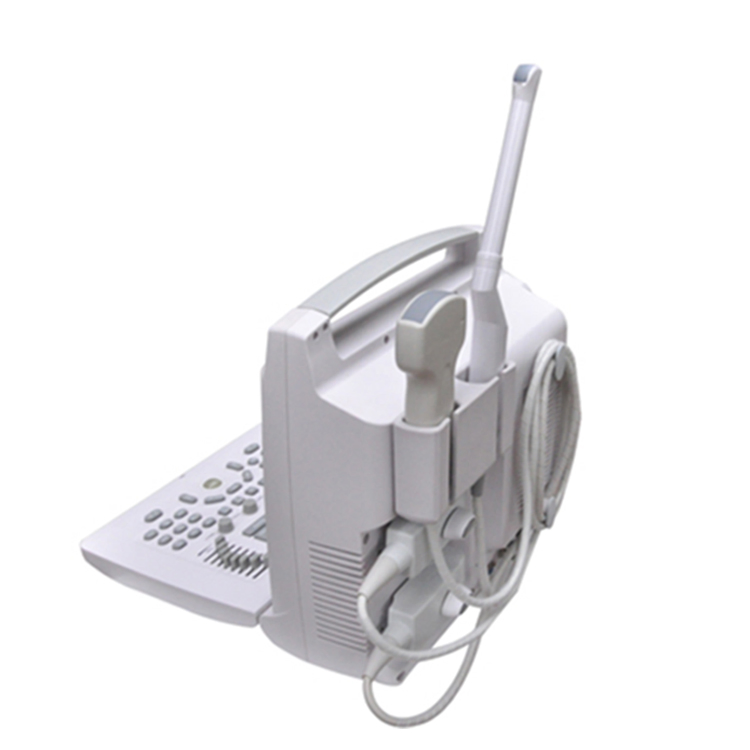

Dual probe connectors
Imported 12" high-definition LCD monitor
96 probe elements for superior clarity
8 segments digital TGC and frame correlation technology
Power Supply: AV220V±22V, 50MHz±1MHz

📋 Technical Specifications

Display Depth: Up to 240mm (16 levels adjustable)
Display Modes: B, B+B, B+M, M, 4B
Gray Scale: 256 levels
Cine Loop: Max 809 frames
Storage: 32 frames internal memory
Scan Angle: Adjustable
Dynamic Range: 100dB-130dB
Image Flip: Up/Down, Left/Right, Black/White
Measurements: Distance, circumference, area, volume, heart rate, GA, FW, EDD
Posture Marks: ≥40 types
Video Output: PAL-D, VGA
