Product Description

Basic Information

Model NO.

AT600

Detector Resolution

640X512

Focal Distance

15mm

FOV

34.2°×27.4°

Measuring Range

0℃~50℃

Specification

55mm × 55mm × 119mm

★

Product Description

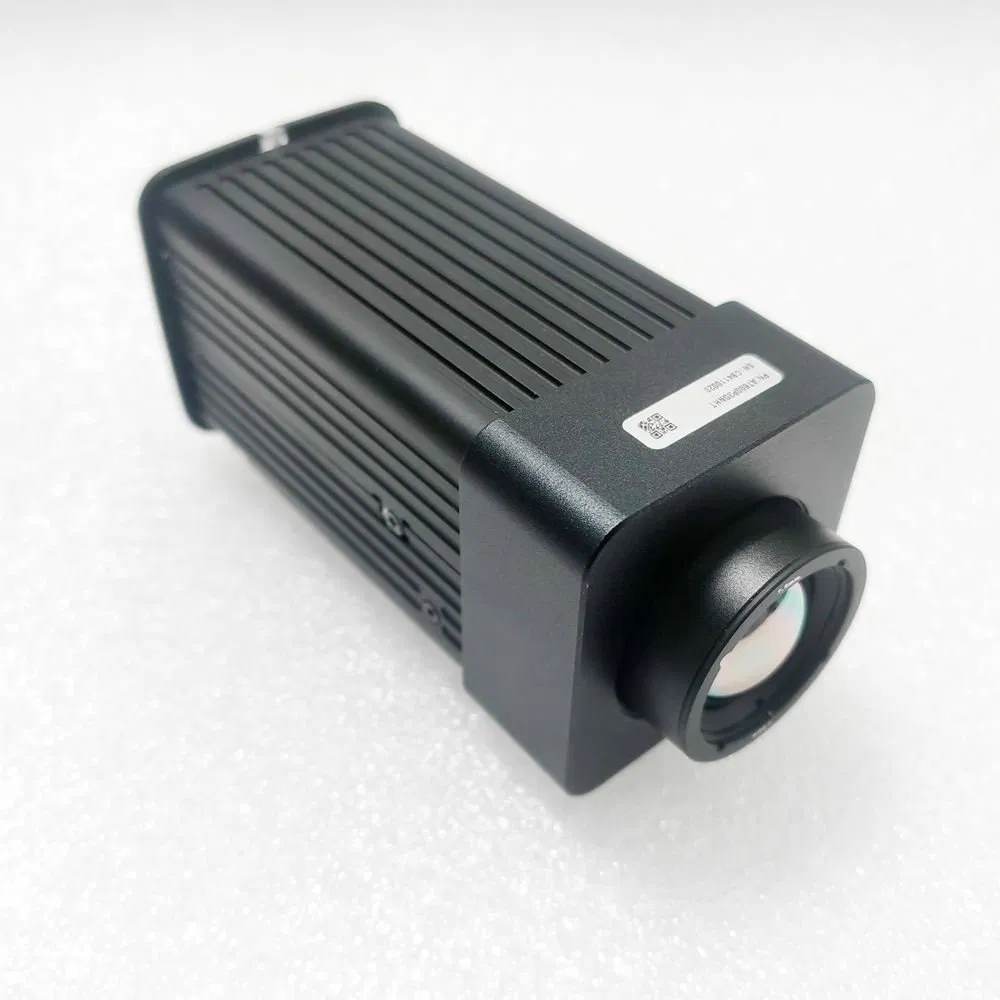

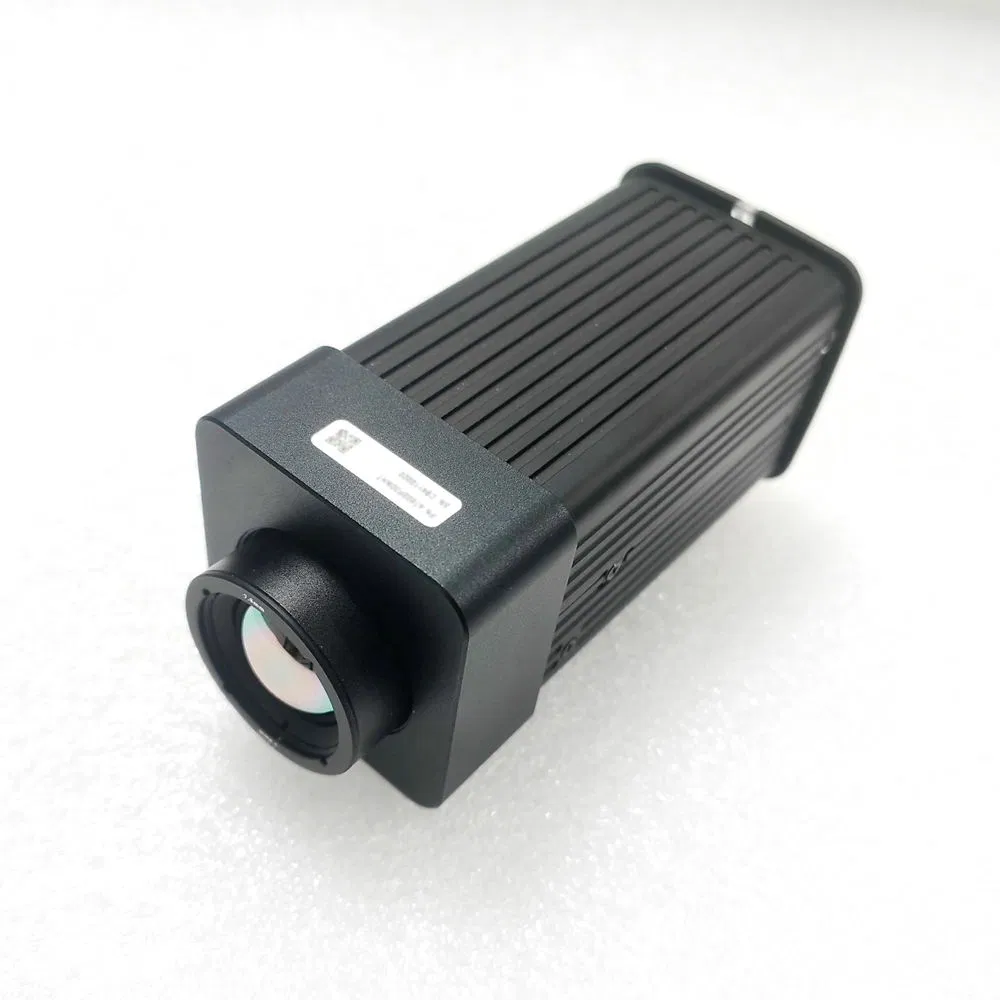

AT600 Thermal Imaging Camera

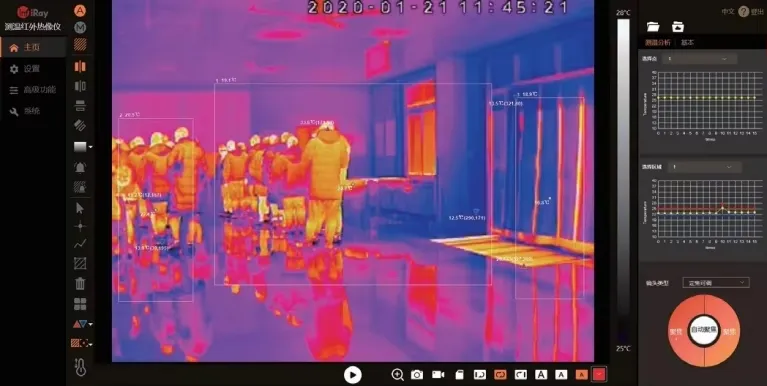

AT600 accurate temperature measurement thermal camera can be widely used in medical temperature measurement, body temperature screening, animal husbandry, machine vision, high-precision power detection, high-precision industrial detection and other industries. It can realize real-time temperature information transmission, accurate detection, fast screening and so on. In particular, its abnormal body temperature screening function can be widely used in airports, railways, stations, terminals, schools, and other densely populated places, to achieve rapid screening and avoid congestion.

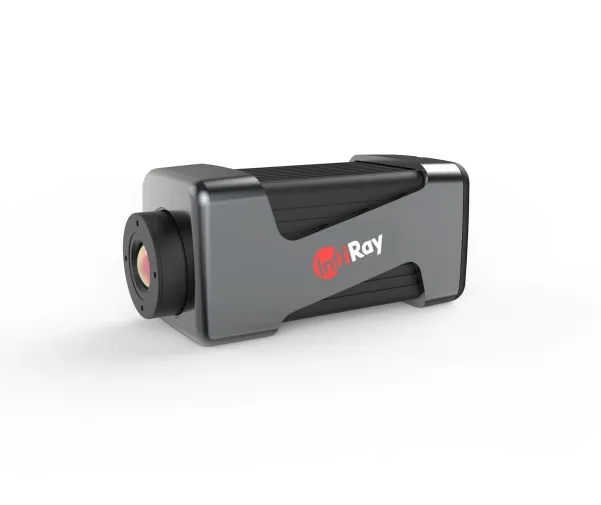

Accurate Human Body Medical Temperature Measurement

📋

Technical Specification

Feature	Details
Detector Type	VOx Uncooled Infrared FPA Detector
Detector Resolution	640×512
Focal Distance	15mm
Lens Control	Support auto focus / Athermal
FOV (Horizon×Vertical)	34.2°×27.4°
Measuring Range	0℃~50℃
Measurement Accuracy	±0.3℃ @33℃~42℃ (with blackbody)
Effective Distance	1m~5m
Network Interface	RJ45 (Supports TCP, UDP, RTSP, etc.)
Palette	18 modes supportable
Power Supply	10-36VDC / POE (IEEE 802.3af)
Consumption	≤3.3W
Dimensions	55mm×55mm × 119mm
Environment	IP Protection / Shock 30g / Vibration 4.3g

📦

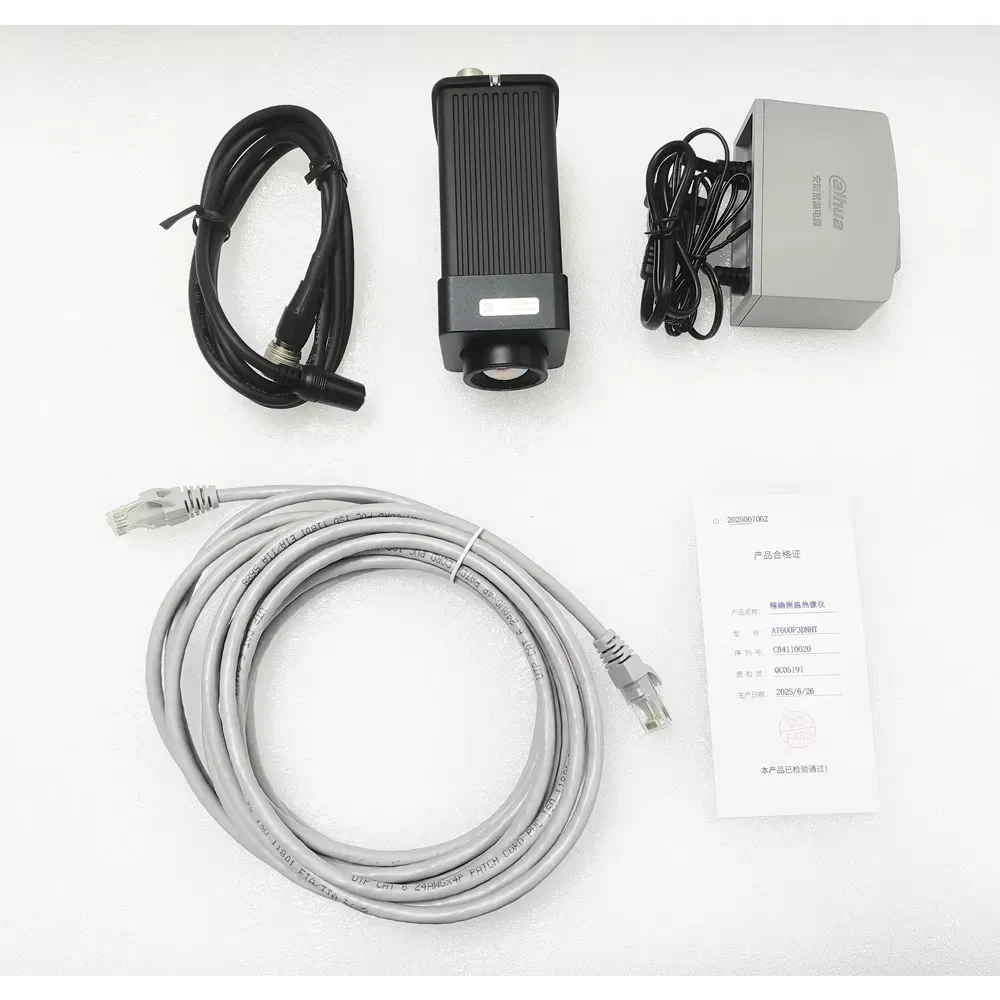

Packing & Delivery

Frequently Asked Questions

What is the primary application of the AT600 thermal camera?

The AT600 is designed for high-precision medical temperature measurement, human body temperature screening in crowded public areas, industrial detection, and machine vision applications.

How accurate is the temperature measurement?

When used with a blackbody within an ambient temperature of 16℃ to 32℃, it achieves a high accuracy of ±0.3℃ for target temperatures between 33℃ and 42℃.

What is the effective distance for accurate screening?

The AT600 provides accurate measurement results within an effective distance of 1 to 5 meters.

Does the camera support Power over Ethernet (POE)?

Yes, the AT600 supports POE power supply based on the IEEE 802.3af standard, simplifying installation via a single network cable.

What kind of imaging features are included?

It features a 640x512 resolution VOx uncooled detector, supports auto-focus, offers 18 different color palettes, and includes image flip options (horizontal, vertical, or diagonal).

Can it be integrated with existing computer systems?

Yes, it comes with full SDK support and PC software compatibility, allowing for seamless integration into various monitoring and data analysis platforms.
