| Parameter | LKLED700/500(4+3) Specifications |
|---|---|
| No. of LED beads | 112/81 |
| Illuminance (Lux) | 80000-160000/60000-160000 |
| Color temperature(K) | 3700-5000 adjustable |
| Diameter of light spot (mm) | 160-350 |
| Color rendering index | ≥95 |
| Lighting depth (mm) | 500-1800 |
| Dimming system | Continuous dimming |
| Temp Rise (Head) | ≤1ºC |
| Temp Rise (Field) | ≤2ºC |
| CRI (Ra) | ≥96 |
| Installation Height | 2.8 m - 3.2 m |

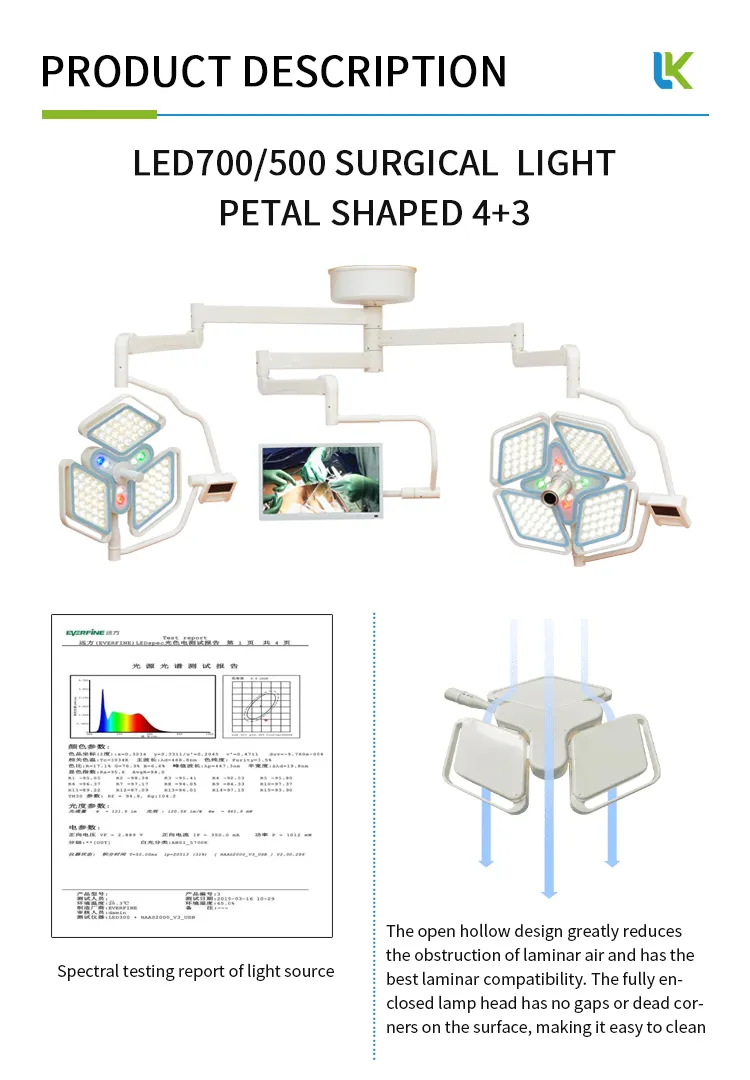

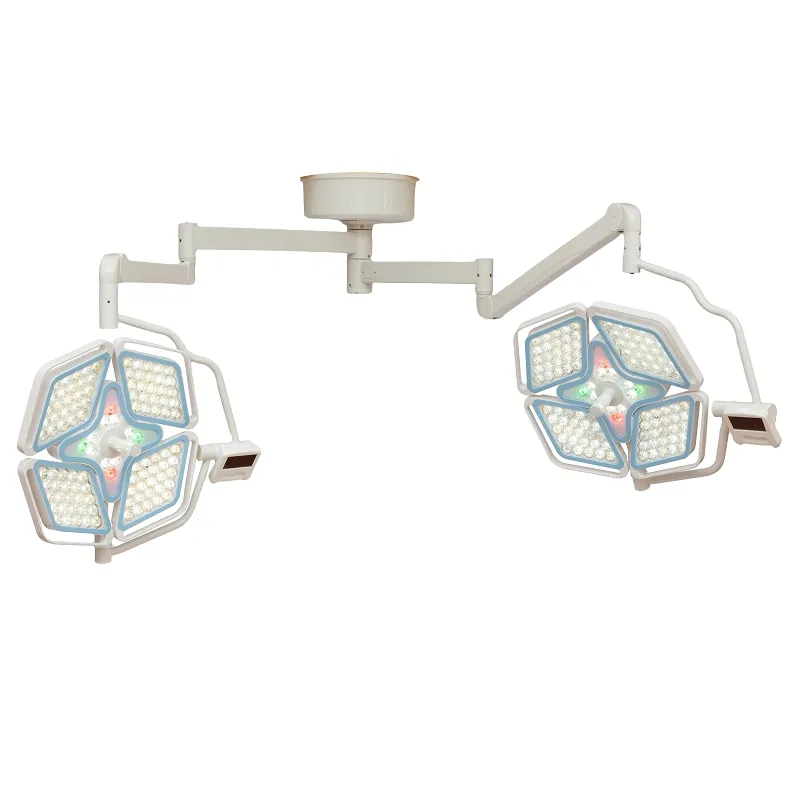

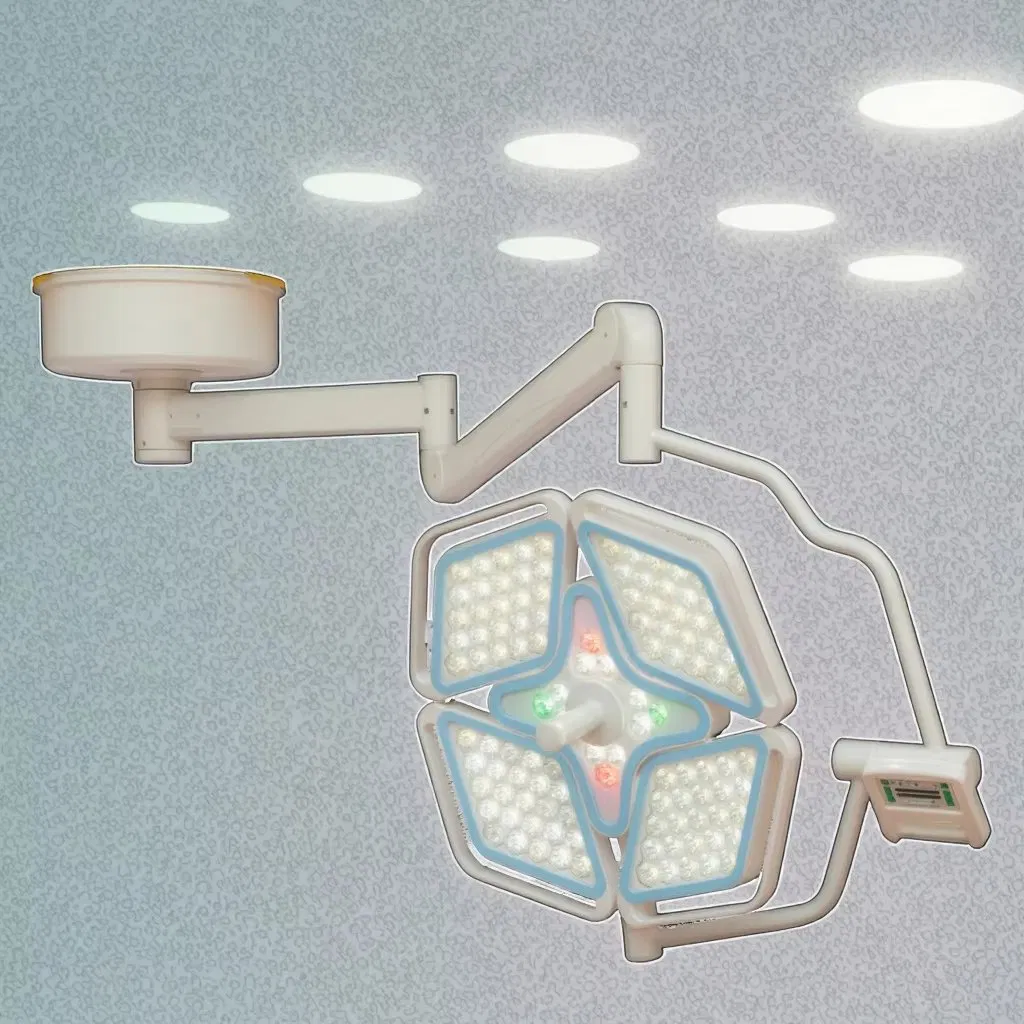

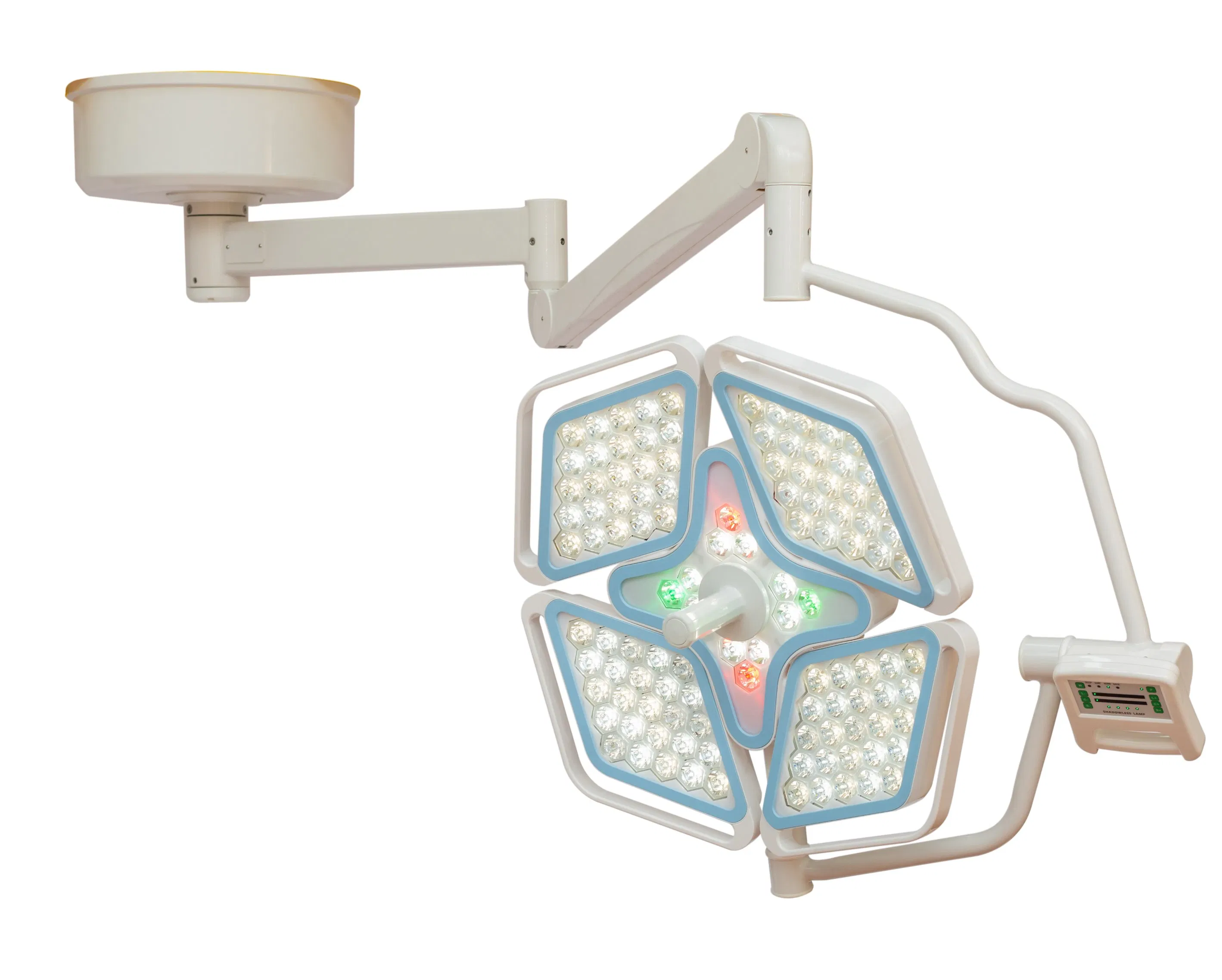

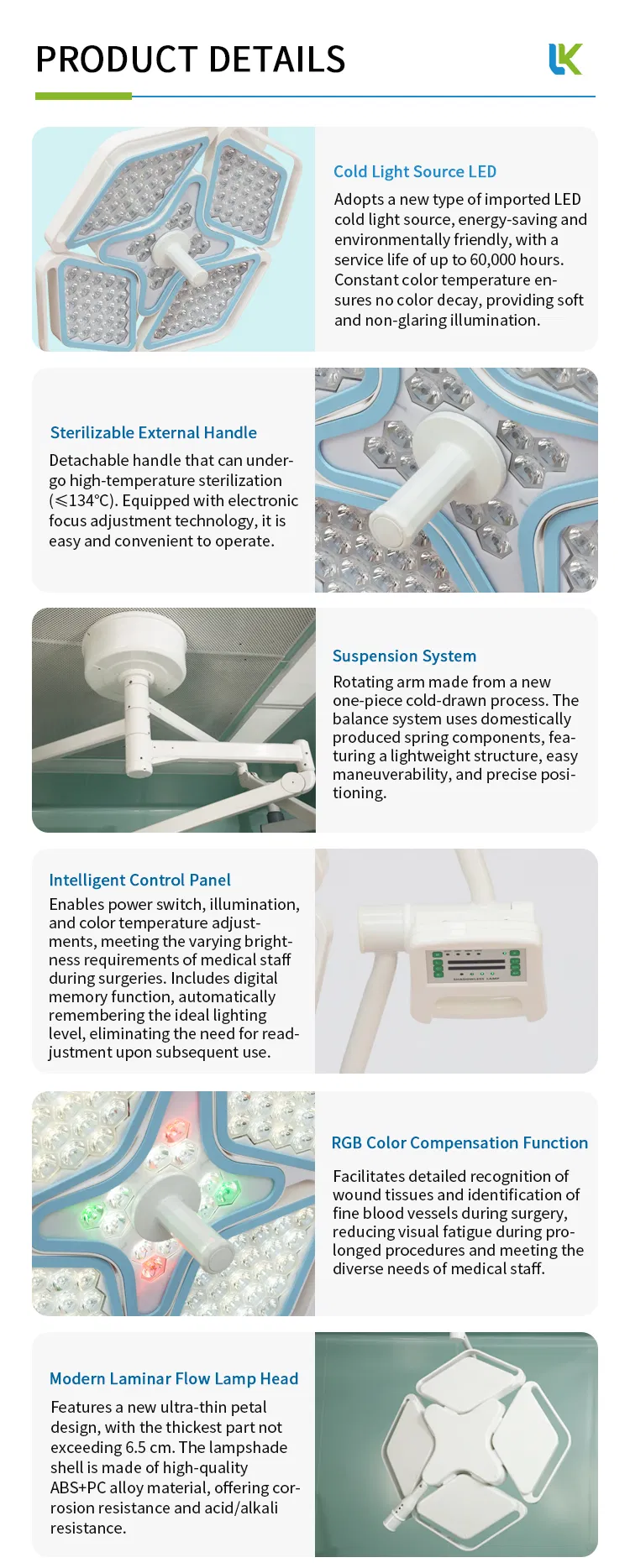

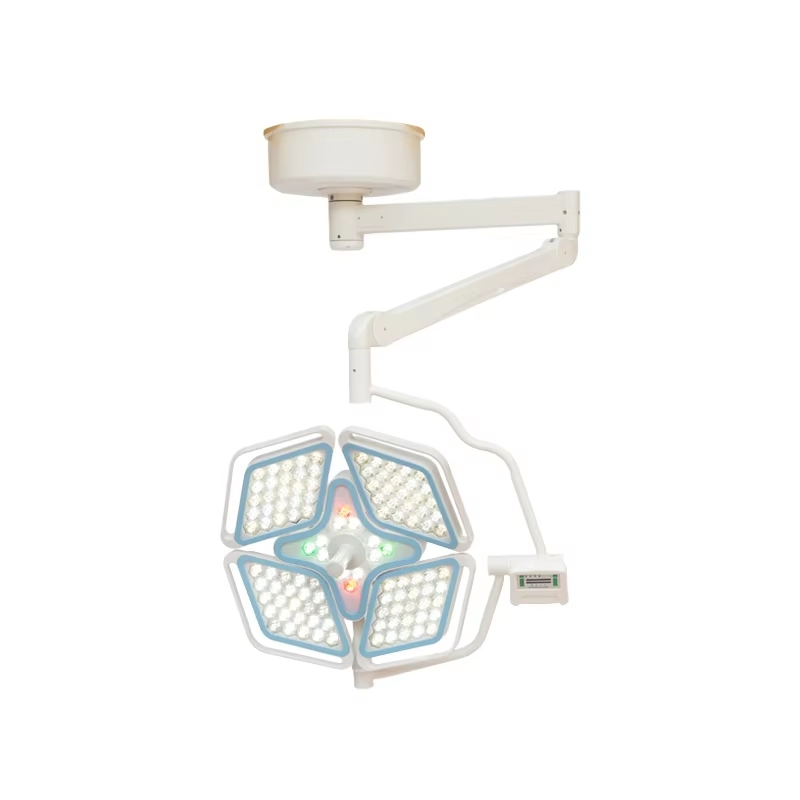

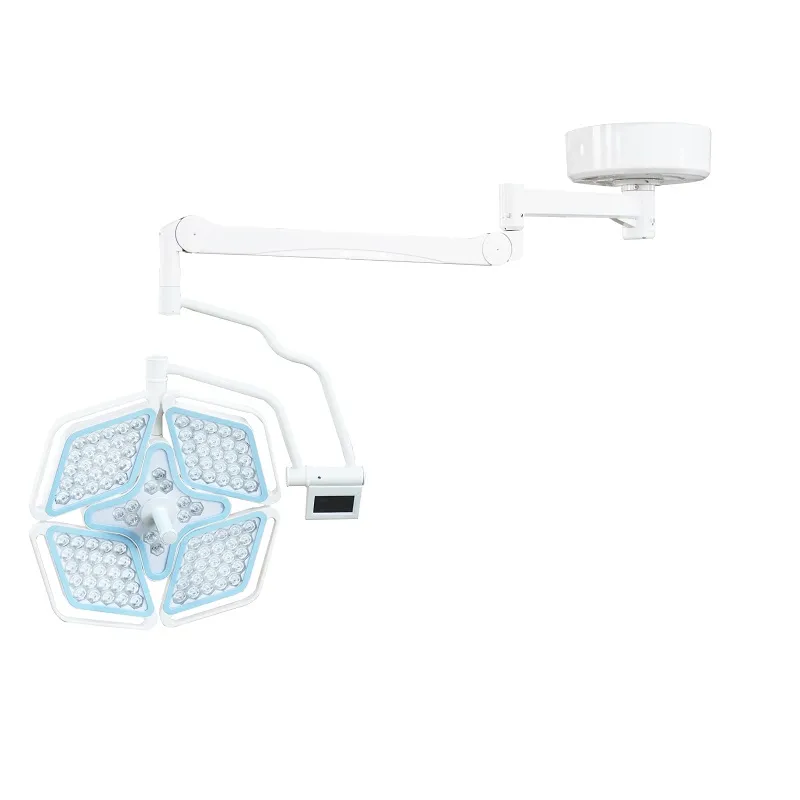

The LKLED700 uses a novel LED cold light source with an impressive service life of up to 60,000 hours, making it highly durable and energy-efficient.

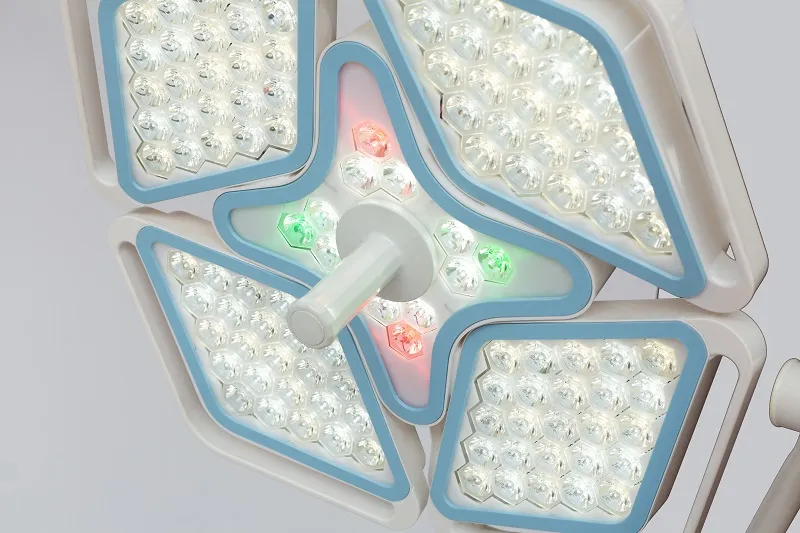

It utilizes computer-aided modular design and a wide turning radius (≥182cm) to focus multiple LED light beams, ensuring a superior shadow-free effect even at vertical angles.
Yes, the color temperature is adjustable between 3700K and 5000K, providing light that is close to natural daylight to accurately reflect human tissue colors.
No, it is a real cold light source. The temperature rise at the surgeon's head is kept under 1ºC, ensuring a comfortable working environment.
The optimum installation height is 3.2 meters, though it can be installed at a minimum height of 2.8 meters.
This equipment is fully certified with CE, ISO13485, and ISO9001 standards, meeting global medical safety requirements.
